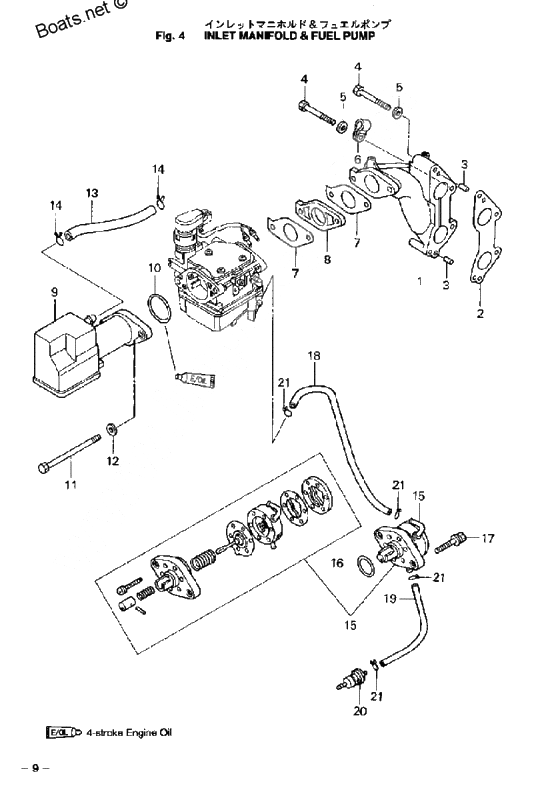

Inlet manifold, fuel pump для Tohatsu MFS15A - 2002 года выпуска
-
№АртикулНазвание
-
23R3-02104-0 Gasket, inlet manifoldGasket, inlet manifold
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
4916114-0645 BoltBolt
-
5940121-0600 WasherWasher
-
6345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
73R0-02011-0 Gasket, carburetorGasket, carburetor
-
83R0-03952-0 InsulatorInsulator
-
93H8-02410-0 Air Silencer
With CollarsAir Silencer
With Collars -
103F3-02012-0 O-RingO-Ring
-
113R0-03215-0 Bolt,6-100Bolt,6-100
-
12940103-0600 WasherWasher
-
143C7-02215-0 ClipClip
-
153H8-04000-0 Fuel pumpFuel pump
-
16345-62415-0 O-RingO-Ring
-
20369-02230-0 Фильтр топливныйФильтр топливный
-
21338-02215-0 ClipClip
Все узлы модели:
- Assembly kit
- Bottom cowl & fuel connector
- Camshaft, oil pump
- Carburetor
- Clamp bracket (stern bracket)
- Cylinder head
- Cylinder
- Drive shaft housing
- Electric parts
- Fuel tank (remote)
- Gear case (drive shaft & water pump)
- Gear case (propeller shaft)
- • Inlet manifold, fuel pump
- Intake valve, exhaust valve
- Magneto
- Piston & crank shaft
- Recoil starter
- Shift & stop switch
- Shift (for ep)
- Starter motor
- Swivel bracket
- Tiller handle
- Top cowl
