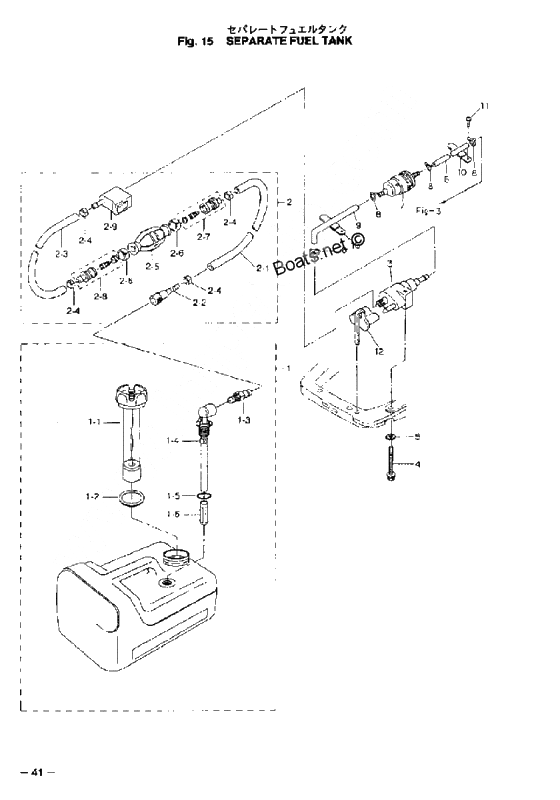

Fuel tank (remote) для Tohatsu MFS5A - 2002 года выпуска`
-
№АртикулНазвание
-
13B2-70167-0 New part
UniqueNew part
Unique -
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23H6-70200-0 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-9394-70250-0 Соединитель топливныйСоединитель топливный
-
3394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
4910103-0640 BoltBolt
-
5940103-0600 WasherWasher
-
7369-02230-0 Фильтр топливныйФильтр топливный
-
8338-02215-0 ClipClip
-
93H6-02203-0 Fuel pipe,4.5l-75Fuel pipe,4.5l-75
-
10309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
11921503-0612 Stud BoltStud Bolt
-
123H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
13398-06972-0 Clamp,6.5-67PClamp,6.5-67P
