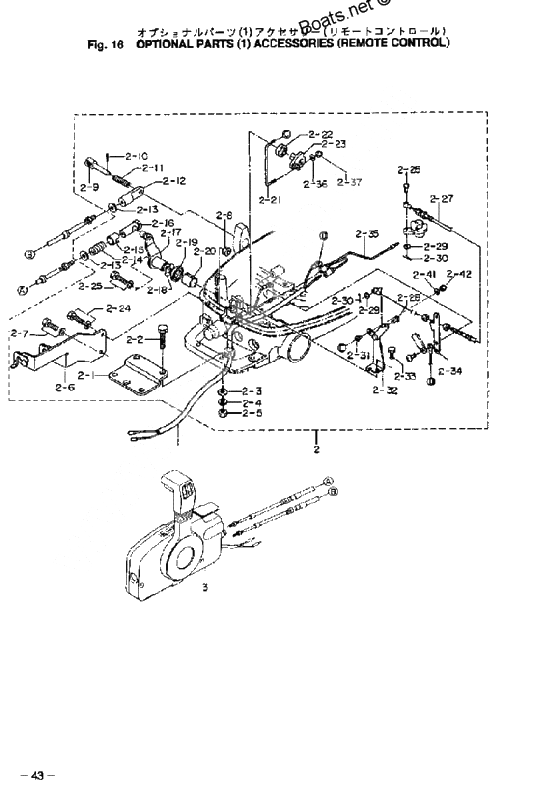

Remote control для Tohatsu MFS5A - 2002 года выпуска
-
№АртикулНазвание
-
1369-83846-0 R.c.stop cord(2.0m)R.c.stop cord(2.0m)
-
1369-83848-0 R.c. stop cord 3.2mR.c. stop cord 3.2m
-
1369-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
1369-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
-
23H6-83880-0 S. r. c. fitting parts assyS. r. c. fitting parts assy
-
2-10951403-0212 Spring WasherSpring Washer
-
2-11332-83729-0 Spring WasherSpring Washer
-
2-12369-83715-1 Sleeve B GuideSleeve B Guide
-
2-13332-83725-0 WasherWasher
-
2-14332-83724-0 Spring ball jointSpring ball joint
-
2-15332-83723-0 Cap ball jointCap ball joint
-
2-163A1-83722-0 Ball holderBall holder
-
2-173H6-83910-1 Throttle lever a ass'yThrottle lever a ass'y
-
2-18941403-1400 New partNew part
-
2-19338-67147-0 New partNew part
-
2-2910103-0830 New partNew part
-
2-20369-67105-0 BushingBushing
-
2-213H6-83825-2 Throttle link rodThrottle link rod
-
2-22369-83888-0 Collar throttle wire leverCollar throttle wire lever
-
2-233H6-83920-1 Lever,throttle linkLever,throttle link
-
2-24910103-6625 Bolt
* Assemlbly or Kit PartBolt
* Assemlbly or Kit Part -
2-25910153-5635 BoltBolt
-
2-273H6-83863-1 Throttle WireThrottle Wire
-
2-283H6-63626-0 Pin,throttle wirePin,throttle wire
-
2-29940103-0400 WasherWasher
-
2-3940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
2-313H6-63627-0 Rod busshingRod busshing
-
2-323H6-83867-0 Throttle link ass'yThrottle link ass'y
-
2-33910103-0612 New partNew part
-
2-343H6-83862-1 Bracket, throttleBracket, throttle
-
2-353H6-83883-0 Separate CordSeparate Cord
-
2-36940103-0300 WasherWasher
-
2-37930403-0300 Nylon NutNylon Nut
-
2-4941303-0800 Spring WasherSpring Washer
-
2-5930103-0800 NutNut
-
2-6369-83820-0 Cable clip ass'yCable clip ass'y
-
2-7910103-6616 BoltBolt
-
2-8930103-0600 NutNut
-
2-9332-83728-0 Lock PinLock Pin
-
33B7-84360-0 Single remote control box ass'y(rc5d)
UniqueSingle remote control box ass'y(rc5d)
Unique
