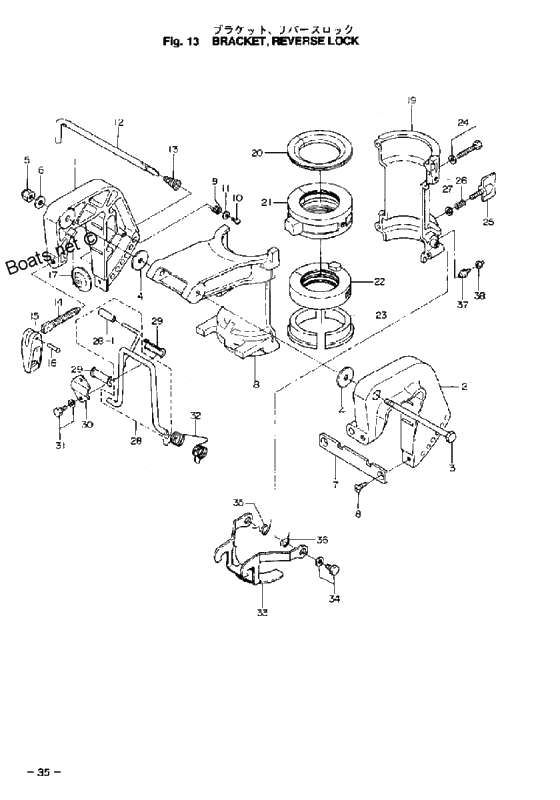

Bracket & reverse lock для Tohatsu MFS6A - 2002 года выпуска
-
№АртикулНазвание
-
1369S62112-3 Stern bracket rStern bracket r
-
2369S62113-2 Stern bracket lStern bracket l
-
3309-62115-1 Bolt, stern bracketBolt, stern bracket
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
6940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
73B2-62118-0 Distance Plate, BracketDistance Plate, Bracket
-
8921603-0612 Stud BoltStud Bolt
-
9369-62146-1 Spring Stern BracketSpring Stern Bracket
-
11369-62147-0 WasherWasher
-
12350-62121-0 Thrust RodThrust Rod
-
13369-62122-1 Spring, thrust rodSpring, thrust rod
-
14369-62103-0 Винт струбциныВинт струбцины
-
15307S62102-1 Handle, clamp screwHandle, clamp screw
-
163C8-62104-0 Rivet 3-22Rivet 3-22
-
17332-62101-0 Pad clamp screwPad clamp screw
-
183H6S62391-0 Swivel bracket aSwivel bracket a
-
193H6S62392-0 Swivel braket bSwivel braket b
-
203H6-62325-0 Thrust BushingThrust Bushing
-
213H6-61301-0 Bushing Upper, SteeringBushing Upper, Steering
-
223H6-62417-0 Bushing lower steeriBushing lower steeri
-
233H6-62424-0 Thrust Plate BThrust Plate B
-
25309S62442-1 Steering adjust screwSteering adjust screw
-
26309-62446-1 Spring Steering FrictionSpring Steering Friction
-
27940103-0600 WasherWasher
-
28393S62431-2 Tilt Stopper Ass'yTilt Stopper Ass'y
-
28-1393-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
3AS-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
29393-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
30369-62439-0 Set plate, tilt stopperSet plate, tilt stopper
-
31910103-6612 BoltBolt
-
32369-62434-0 Spring Tilt StopperSpring Tilt Stopper
-
333H6-66313-0 Reverse Lock ArmReverse Lock Arm
-
34910103-5614 BoltBolt
-
35369-66338-0 Spring R Reverse Lock ArmSpring R Reverse Lock Arm
-
36369-66339-0 Spring L Reverse Lock ArmSpring L Reverse Lock Arm
-
37344-67177-0 МасленкаМасленка
-
38344-67178-0 Cap grease nippleCap grease nipple
