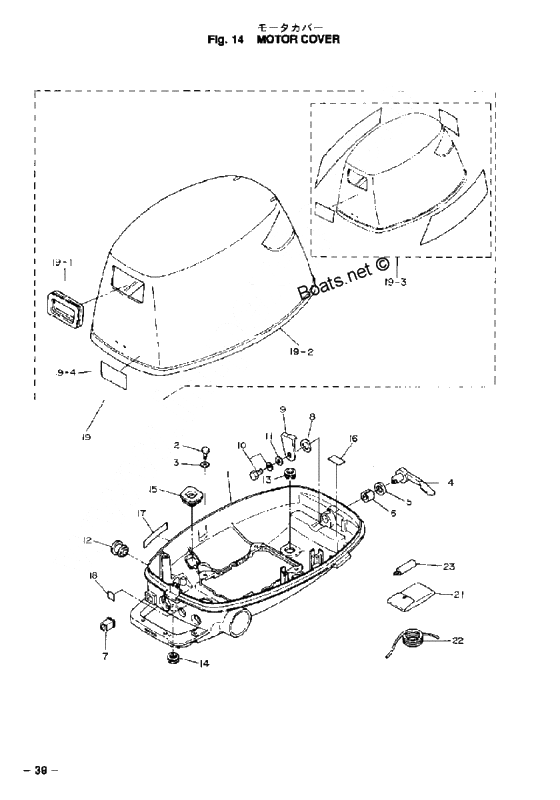

Motor cover для Tohatsu MFS6A - 2002 года выпуска
-
№АртикулНазвание
-
13H6S67100-1 Motor cover rowerMotor cover rower
-
2910114-0616 BoltBolt
-
3940103-0600 WasherWasher
-
4369S67141-1 Hook leverHook lever
-
5338-67147-0 New part
тИЕ13.6 - тИЕ22 - 3.7mmNew part
тИЕ13.6 - тИЕ22 - 3.7mm -
6369-67105-0 BushingBushing
-
73H6-67104-0 Bushing choke rodBushing choke rod
-
8941403-1400 New partNew part
-
93H6-67142-0 Cover, hookCover, hook
-
10910103-6612 BoltBolt
-
113C8-66308-0 New partNew part
-
12369-67187-0 Grommet throttle leverGrommet throttle lever
-
13338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
14345-67117-0 New partNew part
-
15369-67188-0 Grommet starter lock rodGrommet starter lock rod
-
163H6-72026-0 Label, Spark PlugLabel, Spark Plug
-
173H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
183H6-76199-0 Label,oil PressureLabel,oil Pressure
-
193R4S67560-0 Motor cover upper ass'y
for Separate (Remote) TankMotor cover upper ass'y
for Separate (Remote) Tank -
19-13B2-67503-0 Seal rubber staterSeal rubber stater
-
19-23H6-67501-0 Sele rubber, upper motorSele rubber, upper motor
-
19-33R4S87801-0 Набор этикетокНабор этикеток
-
19-43H6-76197-0 Label,oil levelLabel,oil level
-
213H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
22312-72201-0 Safety Rope
тИЕ4 - 1000MMSafety Rope
тИЕ4 - 1000MM -
23336-60007-0 New partNew part
