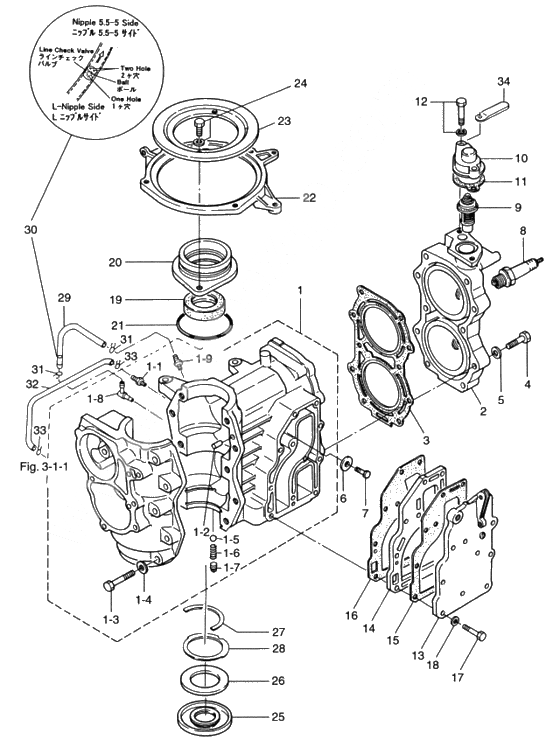

Cylinder - crank case assembly для Tohatsu M18E2 - 2003 года выпуска
-
№АртикулНазвание
-
1362B01100-3 Cylinder&crank?case
18E2 # 03126~Cylinder&crank?case
18E2 # 03126~ -
1-1338-01131-1 ЗолотникЗолотник
-
1-2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-3910124-0845 BoltBolt
-
1-4940121-0800 WasherWasher
-
1-5332-01121-1 Nylon ball check valveNylon ball check valve
-
1-6332-01122-0 Spring check valveSpring check valve
-
1-7350-00063-0 Seal ring, plugSeal ring, plug
-
1-8393-01137-0 Drain nipple
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~Drain nipple
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ -
1-83B2-01160-0 Check valve nipple assy
18E2#03125~ / 15D2#44380~ / 9.9D2 # 80076~Check valve nipple assy
18E2#03125~ / 15D2#44380~ / 9.9D2 # 80076~ -
1-9393-01131-0 Drain nipple
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~Drain nipple
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ -
2398B01001-0 Головка цилиндровГоловка цилиндров
-
3350-01005-0 New partNew part
-
4916119-0840 BoltBolt
-
5940121-0800 WasherWasher
-
6338-60218-2 New partNew part
-
7910103-0616 Bolt
OR 910113-0616Bolt
OR 910113-0616 -
89701-0-1005 9701-1-1005
NGK B7HS-109701-1-1005
NGK B7HS-10 -
9350-01030-1 ThermostatThermostat
-
11346-01032-0 New partNew part
-
12910114-5630 BoltBolt
-
13350B02301-1 Exhaust cover outerExhaust cover outer
-
14350B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
350B02302-1 Exhaust Cover InnerExhaust Cover Inner
-
15350-02305-0 New partNew part
-
16350-02306-0 Gasket exhaust cover innerGasket exhaust cover inner
-
17910114-0625 Bolt
OR 910114-5625Bolt
OR 910114-5625 -
18940121-0600 WasherWasher
-
19350-00121-0 Oil SealOil Seal
-
20350-01401-0 ЗажиганиеЗажигание
-
21338-01403-0 O-RingO-Ring
-
22350-63723-0 Комплект колецКомплект колец
-
23346-63722-2 Guide PlateGuide Plate
-
24910121-0620 BoltBolt
-
25350-01215-5 Oil SealOil Seal
-
26362-00128-0 Ring oil seal lowerRing oil seal lower
-
27350-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
28350-00107-0 Thrust plate lower crankshaftThrust plate lower crankshaft
-
2998AL-4-1000 Rubber pipe
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~Rubber pipe
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ -
30393-01160-0 Check Valve
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~Check Valve
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ -
313T5-01133-0 Clip
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~Clip
18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ -
3298AB-3-1000 Rubber hoseRubber hose
-
33338-01133-0 ClipClip
-
34398-06972-0 Clamp,6.5-67PClamp,6.5-67P
