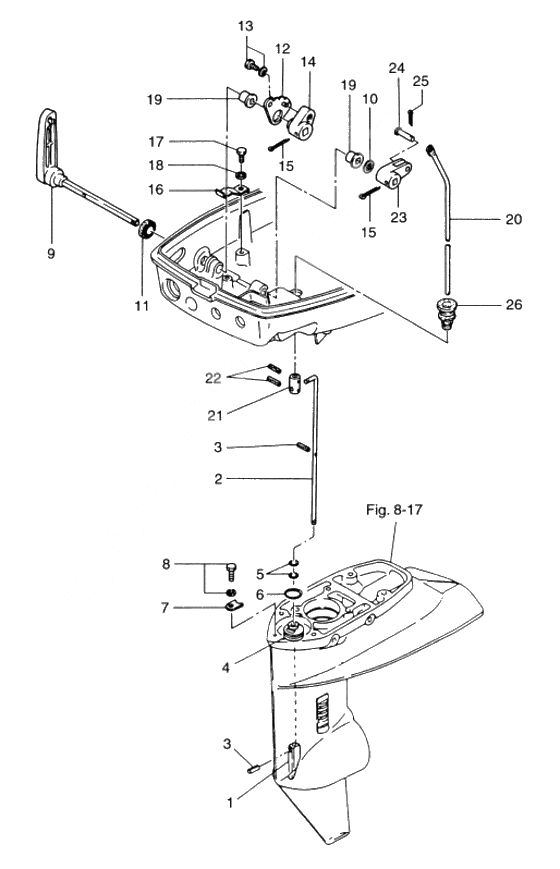

Gear shift для Tohatsu M18E2 - 2003 года выпуска
-
№АртикулНазвание
-
13C8-66011-0 Clutch CamClutch Cam
-
2398-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
2398-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
2398-66014-0 Cam Rod UL
FOR TRANSOM ULCam Rod UL
FOR TRANSOM UL -
2398-66015-0 Cam rod ll
FOR TRANSOM LLCam rod ll
FOR TRANSOM LL -
3951407-0312 Spring WasherSpring Washer
-
4398-66031-0 Bushing Cam RodBushing Cam Rod
-
5332-66021-0 O-RingO-Ring
-
6336-62415-0 O-RingO-Ring
-
7332-66033-0 Retainer Cam ShiftRetainer Cam Shift
-
8910103-6512 BoltBolt
-
9350-66110-0 Shift lever ass'yShift lever ass'y
-
10941403-1200 WasherWasher
-
113K9-66137-0 Oil SealOil Seal
-
12350-66121-0 Stopper plate shift leverStopper plate shift lever
-
13910114-5616 BoltBolt
-
14350-66115-0 Adjuster shift leverAdjuster shift lever
-
15951503-2522 Split PinSplit Pin
-
16350-66112-0 Stopper shift leverStopper shift lever
-
17910114-0616 BoltBolt
-
18941303-0600 New partNew part
-
19350-67101-0 Bushing Shift LeverBushing Shift Lever
-
20350-66214-0 Shift rod sShift rod s
-
20350-66215-0 Shift rod l ll ulShift rod l ll ul
-
21350-66241-0 Joint Shift RodJoint Shift Rod
-
22951403-0312 Spring WasherSpring Washer
-
23350-66225-0 Shift Rod LeverShift Rod Lever
-
24350-66223-0 Pin shift rod leverPin shift rod lever
-
25951503-1610 Split PinSplit Pin
-
26345-66226-0 Grommet, 17-3Grommet, 17-3
-
13C8-66011-0 Clutch CamClutch Cam
-
2398-66012-0 Cam Rod “S”
for Transom "S"Cam Rod “S”
for Transom "S" -
2398-66013-0 Cam Rod “L”
for Transom "L"Cam Rod “L”
for Transom "L" -
2398-66014-0 Cam Rod "UL"
for Transom "UL"Cam Rod "UL"
for Transom "UL" -
2398-66015-0 Cam Rod “LL”
for Transom "LL"Cam Rod “LL”
for Transom "LL" -
3951407-0312 Spring Pin, 3-12Spring Pin, 3-12
-
4398-66031-0 Bushing, Cam RodBushing, Cam Rod
-
5332-66021-0 2.4-5.8 O-Ring, 2.4-5.82.4-5.8 O-Ring, 2.4-5.8
-
6336-62415-0 O-Ring, 3.5-36O-Ring, 3.5-36
-
7332-66033-0 Stopper, Cam Rod BushingStopper, Cam Rod Bushing
-
8910103-6512 BoltBolt
-
9350-66110-0 Shift LeverShift Lever
-
10941403-1200 Wave Washer, d=12Wave Washer, d=12
-
113K9-66137-0 Oil Seal, 14-20-4.5Oil Seal, 14-20-4.5
-
12350-66121-0 Stopper Plate, shift LeverStopper Plate, shift Lever
-
13910114-5616 BoltBolt
-
14350-66115-0 Adjuster, Shift LeverAdjuster, Shift Lever
-
15951503-2522 Split Pin, 2.5-22Split Pin, 2.5-22
-
16350-66112-0 Stopper, Shift LeverStopper, Shift Lever
-
17910114-0616 BoltBolt
-
18941303-0600 Spring WasherSpring Washer
-
19350-67101-0 Bushing, Shift Lever ShaftBushing, Shift Lever Shaft
-
20350-66214-0 Shift Rod “S”Shift Rod “S”
-
20350-66215-0 Shift Rod “L”：LL”,“UL”Shift Rod “L”：LL”,“UL”
-
21350-66241-0 Joint, Shift RodJoint, Shift Rod
-
22951403-0312 Spring Pin, 3-12Spring Pin, 3-12
-
23350-66225-0 Shift Rod LeverShift Rod Lever
-
24350-66223-0 Pin, Shift Rod LeverPin, Shift Rod Lever
-
25951503-1610 Split Pin, 1.6-10Split Pin, 1.6-10
-
26345-66226-0 Grommet,17-3Grommet,17-3
