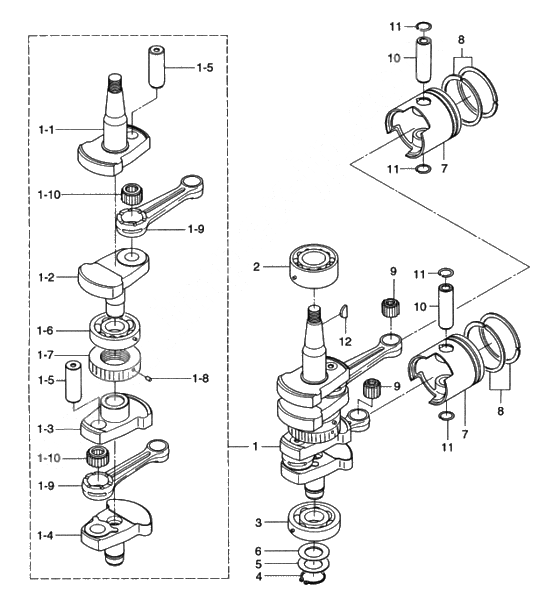

Piston & crank shaft для Tohatsu M25C3 - 2003 года выпуска
-
№АртикулНазвание
-
1346-00030-1 Crankshaft Ass'yCrankshaft Ass'y
-
1-1346-00031-0 Вал коленчатыйВал коленчатый
-
1-10356-00043-0 ПодшипникПодшипник
-
1-2346-00032-0 Crankshaft bCrankshaft b
-
1-3346-00033-0 Кольцо стопорноеКольцо стопорное
-
1-4346-00034-0 Crankshaft dCrankshaft d
-
1-5334-00061-0 Палец шатунныйПалец шатунный
-
1-63J2-00114-0 Подшипник 6305
30A3 # 29197~ / 25C2 # 38254~Подшипник 6305
30A3 # 29197~ / 25C2 # 38254~ -
1-7346-00051-1 Labyrinth packing
30A3 # 33181~ / 25C2# 45535~Labyrinth packing
30A3 # 33181~ / 25C2# 45535~ -
1-8951407-0308 Spring Washer
30A3 # 33181~ / 25C2# 45535~Spring Washer
30A3 # 33181~ / 25C2# 45535~ -
1-9336-00040-1 ШатунШатун
-
2345-00113-0 Ball bearing 5206Ball bearing 5206
-
33J2-00114-0 Подшипник 6305Подшипник 6305
-
4945107-2500 C-Ring
30A3 # 29197~ / 25C2 # 38254~C-Ring
30A3 # 29197~ / 25C2 # 38254~ -
5346-00116-0 Spacer main bearingSpacer main bearing
-
6332-00143-0 ShimShim
-
7346-00001-1 PistonPiston
-
7346-00004-1 Piston (0.5mm o/s)
OPTIONPiston (0.5mm o/s)
OPTION -
8346-00011-0 2-е поршневое кольцо2-е поршневое кольцо
-
8346-00014-0 Кольцо поршневое(+0,5мм)
OPTIONКольцо поршневое(+0,5мм)
OPTION -
9345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
103C8-00021-0 Палец поршняПалец поршня
-
11334-00024-1 Clip, Piston PinClip, Piston Pin
-
12334-00131-0 Key MagnetoKey Magneto
