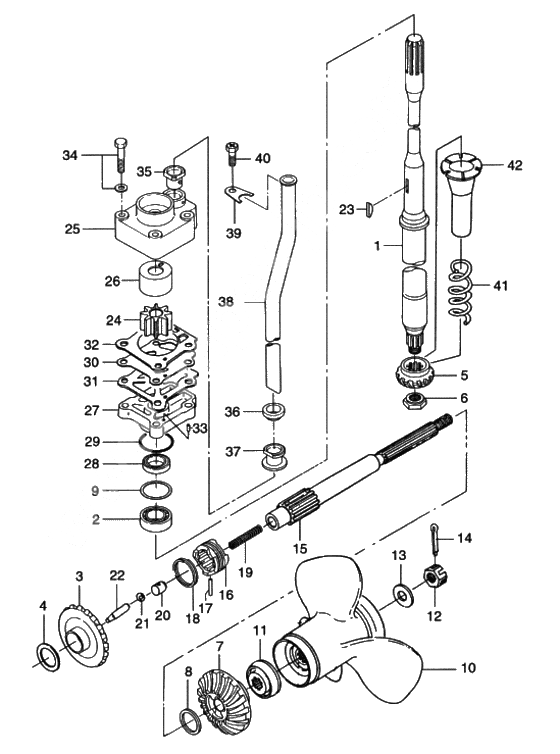

Transmission - water pump для Tohatsu M25C3 - 2003 года выпуска
-
№АртикулНазвание
-
1346-64301-5 Drive Shaft S
FOR TRANSOM SDrive Shaft S
FOR TRANSOM S -
1346-64302-5 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
1346-64303-5 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
1346-64304-5 Drive shaft ll
FOR TRANSOM LLDrive shaft ll
FOR TRANSOM LL -
2346-60213-0 Bearing, 32004Bearing, 32004
-
3346-64010-1 Bevel Gear A
30A3 # 30720~ / 25C2 # 40911~Bevel Gear A
30A3 # 30720~ / 25C2 # 40911~ -
4369-64023-0 ShimShim
-
5346-64020-1 Bevel Gear BBevel Gear B
-
6346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
7346-64030-0 Bevel Gear CBevel Gear C
-
8346-64032-0 New partNew part
-
9346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
9346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
9346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
9346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
10346-64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)Prop 25&30 hp (10.2 dia. x 8.3 pitch)
-
346B64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)Prop 25&30 hp (10.2 dia. x 8.3 pitch)
-
103R0-64518-0 Propellerds9Propellerds9
-
103R0-64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black
STD. TRANSOM ULPropeller ds 10 (9.7 dia x 10 pitch) black
STD. TRANSOM UL -
3R0B64521-0 Propeller ds 10 (9.7 dia x 10 pitch) blackPropeller ds 10 (9.7 dia x 10 pitch) black
-
103R0-64523-0 Propeller ds11 (3x252x279)
STD. TRANSOM L LLPropeller ds11 (3x252x279)
STD. TRANSOM L LL -
103R0-64525-0 Propeller ds 12 (9.8 dia x 12 pitch) blackPropeller ds 12 (9.8 dia x 12 pitch) black
-
3R0B64525-0 Propeller ds 12 (9.8 dia x 12 pitch) blackPropeller ds 12 (9.8 dia x 12 pitch) black
-
103R0-64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black
STD. TRANSOM SPropeller ds 13 (9.6 dia x 13 pitch) black
STD. TRANSOM S -
3R0B64527-0 Propeller ds 13 (9.6 dia x 13 pitch) blackPropeller ds 13 (9.6 dia x 13 pitch) black
-
10346-64105-5 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
-
349B64529-1 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
-
11346-64231-5 New partNew part
-
12346-64121-5 ナット、プロペラナット、プロペラ
-
13346-64124-5 WasherWasher
-
14951503-0322 Split pin, 3-22Split pin, 3-22
-
15346-64211-6 プロペラシャフトプロペラシャフト
-
16346-64215-1 New partNew part
-
17346-64218-0 New partNew part
-
18346-64219-0 New partNew part
-
19332-64221-0 New partNew part
-
20350-64222-0 New partNew part
-
21965002-0803 Steel ball, 3/8
30A3 # 30720~ / 25C2 # 40911~Steel ball, 3/8
30A3 # 30720~ / 25C2 # 40911~ -
223C8-64223-1 Push rod, clutch
30A3 # 30720~ / 25C2 # 40911~Push rod, clutch
30A3 # 30720~ / 25C2 # 40911~ -
23332-65022-0 Key, pump impellerKey, pump impeller
-
24345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
25348-65016-1 Upper Pump CaseUpper Pump Case
-
26348-65011-0 Liner, pump caseLiner, pump case
-
27346-65017-2 Pump Case Lower
30A3 # 31283~ / 25C2 # 41596~Pump Case Lower
30A3 # 31283~ / 25C2 # 41596~ -
28346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
29336-62415-0 O-RingO-Ring
-
30348-65025-0 Guide plate, water pumpGuide plate, water pump
-
31348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
32348-65018-0 Прокладка насосаПрокладка насоса
-
33334-65012-0 СтопорСтопор
-
34910113-5652 New partNew part
-
353B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
36346-65206-0 Seal rubber upper water pipeSeal rubber upper water pipe
-
37346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
38346-65100-0 Water pipe s
FOR TRANSOM SWater pipe s
FOR TRANSOM S -
38346-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
38346-65120-0 Water Pipe UL
FOR TRANSOM ULWater Pipe UL
FOR TRANSOM UL -
38346-65130-0 Water pipe ll
FOR TRANSOM LLWater pipe ll
FOR TRANSOM LL -
39346-65203-0 Lock plate water pipeLock plate water pipe
-
40910403-0610 BoltBolt
-
41346-64327-0 Spring Drive ShaftSpring Drive Shaft
-
42346-64328-0 New partNew part
