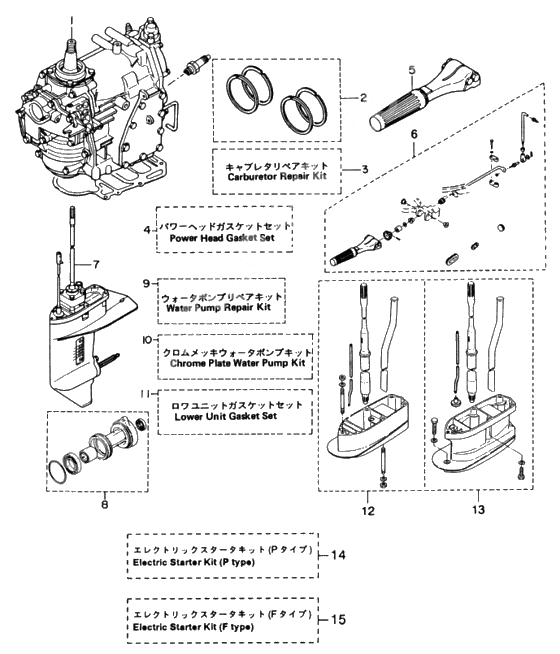

Assembly - kit для Tohatsu M30A4 - 2003 года выпуска

№

Артикул

Название
1

3P0B87100-0 Short block 25/30/2-stroke (cw nut 9311211600m)
INCL. ENGINE BASE GASKET & SPARK PLUG

Short block 25/30/2-stroke (cw nut 9311211600m)
INCL. ENGINE BASE GASKET & SPARK PLUG

151 260 ₽
3P1B87090-9 Short block 25/30/2-stroke (cw nut 9311211600m)

Short block 25/30/2-stroke (cw nut 9311211600m)

223 860 ₽
2

346-87123-0 Кольца поршневые

Кольца поршневые

3 210 ₽
2

346-00011-0 2-е поршневое кольцо

2-е поршневое кольцо

1 870 ₽
2

346-87124-0 Кольца поршневые

Кольца поршневые

8 970 ₽
2

346-00014-0 Кольцо поршневое(+0,5мм)

Кольцо поршневое(+0,5мм)

2 900 ₽
3

346-87122-0 Carburetor Rerair Kit

Carburetor Rerair Kit

10 120 ₽
3

346-02011-0 Gasket, carburettor

Gasket, carburettor

280 ₽
3

922503-6414 Stud Bolt

Stud Bolt

190 ₽
3

346-03222-0 O-ring, float

O-ring, float

1 170 ₽
3

346-03231-0 Float

Float

1 450 ₽
3

346-03232-0 Arm Pin Float

Arm Pin Float

280 ₽
3

3B7-03240-0 Float Valve

Float Valve

880 ₽
3

334-03242-0 Игольчатый клапан

Игольчатый клапан

150 ₽
3

344-03244-0 Clip

Clip

550 ₽
3

346-03256-0 Rubber cap

Rubber cap

570 ₽
3

346-03265-0 Stop Screw

Stop Screw

600 ₽
3

346-03266-0 Adjust Screw

Adjust Screw

1 560 ₽
3

336-03293-0 O-Ring

O-Ring

300 ₽
4

3A1-87121-1 Power Head Gasket Set

Power Head Gasket Set

12 170 ₽
4

346-01005-0 Gasket cylinder head

Gasket cylinder head

1 870 ₽
4

346-01032-0 New part

New part

600 ₽
4

346-02305-0 Gasket exhaust cover

Gasket exhaust cover

400 ₽
4

126-00121-0 Oil seal 30-45-8
UPPER SIDE

Oil seal 30-45-8
UPPER SIDE

1 260 ₽
4

346-00122-0 OIL SEAL LOWER, CRANKSHAFT
LOWER SIDE

OIL SEAL LOWER, CRANKSHAFT
LOWER SIDE

1 020 ₽
4

338-01403-0 O-Ring
MAGNET BASE

O-Ring
MAGNET BASE

570 ₽
4

346-01215-0 New part
DRIVE SHAFT

New part
DRIVE SHAFT

920 ₽
4

346-01216-0 O-Ring
CRANK CASE HEAD

O-Ring
CRANK CASE HEAD

380 ₽
4

346-02011-0 Gasket, carburettor

Gasket, carburettor

280 ₽
4

346-04901-0 Gasket fuel pump

Gasket fuel pump

90 ₽
4

346-01303-0 Gasket engine base

Gasket engine base

1 510 ₽
5

398S63003-0 Handle ass'y

Handle ass'y

6 670 ₽
3M3S63005-0 Handle ass'y

Handle ass'y

6 650 ₽
6

3P0S63000-0 Handle ket

Handle ket

12 510 ₽
6

398S63003-0 Handle ass'y

Handle ass'y

6 670 ₽
3M3S63005-0 Handle ass'y

Handle ass'y

6 650 ₽
6

346-63201-1 Bolt handle a

Bolt handle a

580 ₽
6

345-63207-0 Collar, 9.8-12-7.5

Collar, 9.8-12-7.5

390 ₽
6

346-63064-0 Universal pinion

Universal pinion

860 ₽
6

346-63061-2 Throttle shaft b

Throttle shaft b

2 010 ₽
6

951403-0414 Spring Washer

Spring Washer

120 ₽
6

346-63066-1 Collar, 15.9-17.1-9

Collar, 15.9-17.1-9

210 ₽
6

940103-0800 Washer -> 940113-0800
OR 940113-0800

Washer -> 940113-0800
OR 940113-0800

120 ₽
6

345-63063-0 Holder handle shaft b

Holder handle shaft b

660 ₽
6

910114-0630 Bolt

Bolt

260 ₽
6

940103-0600 Washer
OR 940113-0600

Washer
OR 940113-0600

110 ₽
6

345-66226-0 Grommet, 17-3

Grommet, 17-3

600 ₽
6

348-63715-0 Advancer link rod
30A4 # 35175~ / 25C3 # 50039~

Advancer link rod
30A4 # 35175~ / 25C3 # 50039~

360 ₽
6

930106-0500 New part

New part

40 ₽
6

3B7-63733-0 Rod Snap, 5-3

Rod Snap, 5-3

410 ₽
6

346-05234-0 New part

New part

710 ₽
6

353-83728-0 Cable Pin

Cable Pin

1 010 ₽
353-83728-1 Cable Pin

Cable Pin

1 070 ₽
6

930106-0600 New part

New part

140 ₽
6

353-83719-0 Washer

Washer

70 ₽
6

951603-0800 R-Pin

R-Pin

180 ₽
7

346S87301-6 Lower unit ass'y s
FOR TRANSOM S

Lower unit ass'y s
FOR TRANSOM S

80 320 ₽
7

346S87302-6 Lower unit ass'y l
FOR TRANSOM L

Lower unit ass'y l
FOR TRANSOM L

80 320 ₽
8

346S87323-5 Propeller shaft housing ass'y

Propeller shaft housing ass'y

550 ₽
9

361-87322-0 ウォ-タ-ポンプリペアキット

ウォ-タ-ポンプリペアキット

9 510 ₽
9

345-65021-0 Крыльчатка водной помпы

Крыльчатка водной помпы

4 200 ₽
9

332-65022-0 Key, pump impeller

Key, pump impeller

1 430 ₽
9

348-65011-0 Liner, pump case

Liner, pump case

980 ₽
9

348-65025-0 Guide plate, water pump

Guide plate, water pump

680 ₽
9

348-65029-1 Gasket, pump guide plate

Gasket, pump guide plate

680 ₽
9

348-65018-0 Прокладка насоса

Прокладка насоса

500 ₽
9

910113-5652 New part

New part

210 ₽
10

361-65231-0 Chrome Plated Water Pump Kit

Chrome Plated Water Pump Kit

14 540 ₽
10

345-65021-0 Крыльчатка водной помпы

Крыльчатка водной помпы

4 200 ₽
10

361-65238-0 Liner chrome plated water pump case

Liner chrome plated water pump case

3 780 ₽
10

361-65239-0 Guide plate chrome plated water pump

Guide plate chrome plated water pump

3 490 ₽
10

348-65029-1 Gasket, pump guide plate

Gasket, pump guide plate

680 ₽
10

348-65018-0 Прокладка насоса

Прокладка насоса

500 ₽
11

346-87321-6 Набор прокладок

Набор прокладок

2 110 ₽
346-87321-7 Набор прокладок

Набор прокладок

4 270 ₽
11

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
11

332-60103-0 O-Ring
PROPELLER SHAFT

O-Ring
PROPELLER SHAFT

710 ₽
11

346-60111-0 Oil seal, 18-28-8
PROPELLER SHAFT

Oil seal, 18-28-8
PROPELLER SHAFT

1 260 ₽
11

346-65013-0 Oil' seal, 17-30-9
PUMP CASE LOWER

Oil' seal, 17-30-9
PUMP CASE LOWER

1 160 ₽
11

336-62415-0 O-Ring
PUMP CASE LOWER

O-Ring
PUMP CASE LOWER

410 ₽
11

348-65029-1 Gasket, pump guide plate

Gasket, pump guide plate

680 ₽
11

348-65018-0 Прокладка насоса

Прокладка насоса

500 ₽
11

332-66021-0 O-Ring

O-Ring

360 ₽
11

3C8-66032-0 O-Ring

O-Ring

680 ₽
13

346S87314-5 Extension housing kit (ul)
30A3 # 30720~ / 25C2 # 40911~

Extension housing kit (ul)
30A3 # 30720~ / 25C2 # 40911~

20 ₽
346S87314-6 Extension housing kit (ul)

Extension housing kit (ul)

47 190 ₽
14

3P0-76000-0 Electric starter kit (p)
30A4 # 35175~ / 25C3 # 50039~

Electric starter kit (p)
30A4 # 35175~ / 25C3 # 50039~

74 670 ₽
14

346-76010-0 Stater motor ass'y

Stater motor ass'y

50 400 ₽
14

916103-0835 Bolt
OR 916113-0835

Bolt
OR 916113-0835

210 ₽
14

930103-0800 Nut
OR 930113-0800

Nut
OR 930113-0800

420 ₽
14

941303-0800 Spring Washer

Spring Washer

70 ₽
14

346-76040-0 Starter Solenoid

Starter Solenoid

7 120 ₽
14

346-76043-1 Bracket starter solenoid

Bracket starter solenoid

2 370 ₽
14

910103-0616 Bolt
OR 910113-0616

Bolt
OR 910113-0616

140 ₽
14

930103-0600 Nut
OR 930113-0600

Nut
OR 930113-0600

190 ₽
14

941303-0600 New part

New part

120 ₽
14

3G2-76060-0 Rectifier complete

Rectifier complete

10 350 ₽
14

921503-0525 Stud Bolt

Stud Bolt

140 ₽
14

930103-0500 Nut

Nut

230 ₽
14

941303-0500 Spring Washer

Spring Washer

120 ₽
14

353-06281-0 Holder cable terminal

Holder cable terminal

1 260 ₽
14

353-06283-0 Collar 6.4-10-4.7

Collar 6.4-10-4.7

580 ₽
14

910103-0620 Bolt
OR 910113-0620

Bolt
OR 910113-0620

140 ₽
14

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
14

346-76081-0 Bracket neutral switch

Bracket neutral switch

1 060 ₽
14

910403-6508 Bolt

Bolt

110 ₽
14

910403-6616 Bolt
OR 910903-6616

Bolt
OR 910903-6616

150 ₽
910903-6616 Bolt

Bolt

260 ₽
14

3B2-76062-0 Fuse wire ass'y
L=355

Fuse wire ass'y
L=355

1 130 ₽
14

3B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000

Battery cable +/- (new style) 8.2 ft.
L=2000

6 470 ₽
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.

Battery cable +/- (new style) 8.2 ft.

7 280 ₽
14

3B7-76145-0 Terminal Cap

Terminal Cap

280 ₽
14

334-76141-0 STARTER CORD
L=150

STARTER CORD
L=150

1 200 ₽
14

910103-0612 New part
OR 910113-0612

New part
OR 910113-0612

120 ₽
14

3B2-76147-1 STARTER CORD
L=200

STARTER CORD
L=200

1 530 ₽
14

3A3-76145-0 Cap Starter Terminal

Cap Starter Terminal

280 ₽
14

336-76091-0 Band Battery Cord

Band Battery Cord

140 ₽
14

361-76050-0 Choke Solenoid

Choke Solenoid

7 280 ₽
14

346-76057-0 Hook choke solenoid

Hook choke solenoid

270 ₽
14

951403-0312 Spring Washer

Spring Washer

300 ₽
14

346-76072-1 Rod choke shaft

Rod choke shaft

630 ₽
14

930406-0400 Nylon Nut

Nylon Nut

150 ₽
14

921503-6408 Stud Bolt

Stud Bolt

120 ₽
14

336-06973-0 Clamp Lead Wire

Clamp Lead Wire

290 ₽
14

921503-0612 Stud Bolt
OR 921513-0612

Stud Bolt
OR 921513-0612

140 ₽
14

345-76023-0 Grommet 22-2.5

Grommet 22-2.5

340 ₽
14

346-76007-0 Rubber stater motor

Rubber stater motor

690 ₽
14

3G2-76142-0 Ground cord

Ground cord

570 ₽
15

3P0-76300-0 Electric stater kit (f)
30A4 # 35175~ / 25C3 # 50039~

Electric stater kit (f)
30A4 # 35175~ / 25C3 # 50039~

72 550 ₽
15

346-76010-0 Stater motor ass'y

Stater motor ass'y

50 400 ₽
15

916103-0835 Bolt
OR 916113-0835

Bolt
OR 916113-0835

210 ₽
15

930103-0800 Nut
OR 930113-0800

Nut
OR 930113-0800

420 ₽
15

941303-0800 Spring Washer

Spring Washer

70 ₽
15

346-76040-0 Starter Solenoid

Starter Solenoid

7 120 ₽
15

346-76043-1 Bracket starter solenoid

Bracket starter solenoid

2 370 ₽
15

910103-0616 Bolt
OR 910113-0616

Bolt
OR 910113-0616

140 ₽
15

930103-0600 Nut
OR 930113-0600

Nut
OR 930113-0600

190 ₽
15

941303-0600 New part

New part

120 ₽
15

3G2-76060-0 Rectifier complete

Rectifier complete

10 350 ₽
15

921503-0525 Stud Bolt

Stud Bolt

140 ₽
15

930103-0500 Nut

Nut

230 ₽
15

941303-0500 Spring Washer

Spring Washer

120 ₽
15

353-06281-0 Holder cable terminal

Holder cable terminal

1 260 ₽
15

353-06283-0 Collar 6.4-10-4.7

Collar 6.4-10-4.7

580 ₽
15

910103-0620 Bolt
OR 910113-0620

Bolt
OR 910113-0620

140 ₽
15

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
15

346-76081-0 Bracket neutral switch

Bracket neutral switch

1 060 ₽
15

910403-6508 Bolt

Bolt

110 ₽
15

361-76080-0 Нейтральный переключатель

Нейтральный переключатель

5 150 ₽
15

3M4-76084-0 Spacer neutral switch

Spacer neutral switch

170 ₽
15

3A1-76082-0 Plate neutral switch

Plate neutral switch

320 ₽
15

3B7-63731-0 Washer

Washer

200 ₽
15

910403-6616 Bolt
OR 910903-6616

Bolt
OR 910903-6616

150 ₽
910903-6616 Bolt

Bolt

260 ₽
15

3B2-76062-0 Fuse wire ass'y
L=355

Fuse wire ass'y
L=355

1 130 ₽
15

3B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000

Battery cable +/- (new style) 8.2 ft.
L=2000

6 470 ₽
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.

Battery cable +/- (new style) 8.2 ft.

7 280 ₽
15

3B7-76145-0 Terminal Cap

Terminal Cap

280 ₽
15

334-76141-0 STARTER CORD
L=150

STARTER CORD
L=150

1 200 ₽
15

910103-0612 New part
OR 910113-0612

New part
OR 910113-0612

120 ₽
15

3B2-76147-1 STARTER CORD
L=200

STARTER CORD
L=200

1 530 ₽
15

3A3-76145-0 Cap Starter Terminal

Cap Starter Terminal

280 ₽
15

336-76091-0 Band Battery Cord

Band Battery Cord

140 ₽
15

361-76026-0 Main Switch Ass'y

Main Switch Ass'y

1 990 ₽
15

346-76007-0 Rubber stater motor

Rubber stater motor

690 ₽
15

3G2-76142-0 Ground cord

Ground cord

570 ₽

Все узлы модели:
