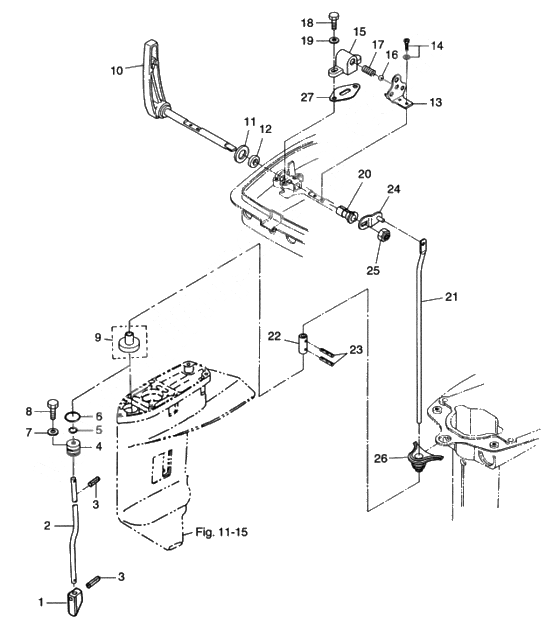

Gear shift (for serial # : 25c2 #40911~ / 30a3 #30720~) для Tohatsu M30A4 - 2003 года выпуска
-
№АртикулНазвание
-
13C8-66011-0 Clutch CamClutch Cam
-
2346-66012-1 Cam rod s(15)"
FOR TRANSOM SCam rod s(15)"
FOR TRANSOM S -
2346-66013-1 Cam rod l(20)"
FOR TRANSOM LCam rod l(20)"
FOR TRANSOM L -
2346-66014-1 Cam rod ul(25)"
FOR TRANSOM ULCam rod ul(25)"
FOR TRANSOM UL -
2346-66015-1 Cam rod ll(23)"
FOR TRANSOM LLCam rod ll(23)"
FOR TRANSOM LL -
3951407-0312 Spring WasherSpring Washer
-
43C8-66031-1 Bushing Cam RodBushing Cam Rod
-
5332-66021-0 O-RingO-Ring
-
63C8-66032-0 O-RingO-Ring
-
73R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
8910103-6612 BoltBolt
-
9346-66037-0 Holder Cam Rod
FOR TRANSOM ULHolder Cam Rod
FOR TRANSOM UL -
10346S66110-0 Shift lever ass'yShift lever ass'y
-
11346-66138-0 Spacer,shift lever 18.2-26-3Spacer,shift lever 18.2-26-3
-
12345-66137-0 Oil seal, 10-20-4Oil seal, 10-20-4
-
13346-66121-0 Stopper plate,shift leverStopper plate,shift lever
-
14910903-6512 BoltBolt
-
15345-66115-0 Holder shift lever stopperHolder shift lever stopper
-
16965002-1605 BallBall
-
17332-66112-0 Spring stopper ballSpring stopper ball
-
18910114-0616 BoltBolt
-
19940103-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
20346-67101-0 Bushing Shift LeverBushing Shift Lever
-
21346-66211-1 Shift RodShift Rod
-
22346-66241-1 Joint, shift rodJoint, shift rod
-
23951403-0312 Spring WasherSpring Washer
-
24346-66225-1 Shift Rod LeverShift Rod Lever
-
25930403-1000 Nylon NutNylon Nut
-
26346-66226-0 Grommet, shift leverGrommet, shift lever
-
27345-66119-0 Shim shift lever stopper holderShim shift lever stopper holder
