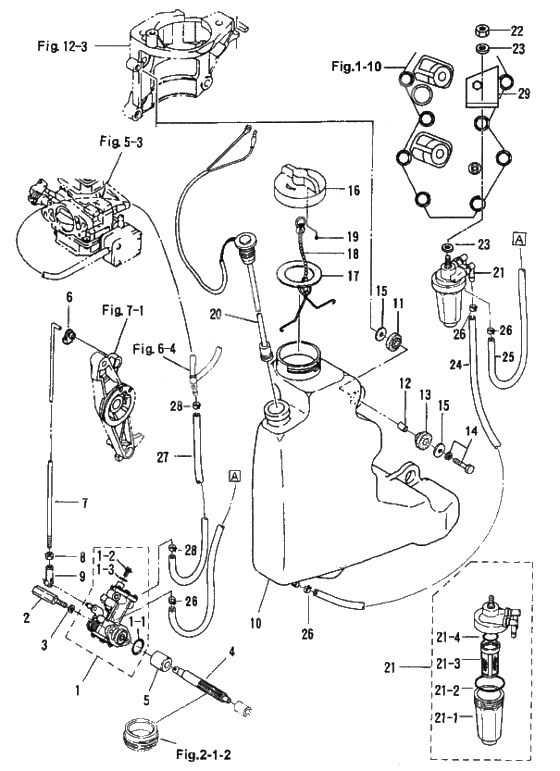

Oil pump (auto mixing) для Tohatsu M40D2 - 2003 года выпуска
-
№АртикулНазвание
-
13C8-09000-1 Oil Pump Ass'yOil Pump Ass'y
-
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23C8-09050-0 Bolt oil pumpBolt oil pump
-
3941303-0600 New partNew part
-
43C8-09065-0 Driven Gear Oil PumpDriven Gear Oil Pump
-
53C8-09069-0 BushingBushing
-
63C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
73C8-09053-0 Link rod oil pumpLink rod oil pump
-
8930106-0500 New part
OR 930103-0500New part
OR 930103-0500 -
93B7-05243-0 New partNew part
-
103C8-71010-0 Oil TankOil Tank
-
113B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
12346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
13346-67113-0 Mount RubberMount Rubber
-
14910103-6630 BoltBolt
-
15346-67115-0 WasherWasher
-
163C8-71015-0 Cap Oil TankCap Oil Tank
-
173C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
183C8-76017-0 Invalid part numberInvalid part number
-
193C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
203C8-71020-0 Oil Level SensorOil Level Sensor
-
3C8-71020-1 Oil Level SensorOil Level Sensor
-
213C7-71030-0 Filter Ass'yFilter Ass'y
-
21-13B7-02237-0 CupCup
-
21-23B7-02235-0 O-Ring AO-Ring A
-
21-33C7-71033-0 FilterFilter
-
21-43B7-02236-0 O???? bO???? b
-
22930106-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
23940103-0800 Washer -> 940113-0800
OR 940113-0800Washer -> 940113-0800
OR 940113-0800 -
2499AA-6-0700 Oil pipe (1 ea.=1.5 meter/59.05 inches)
50D2 # 62305~ / 40D2 # 46451~Oil pipe (1 ea.=1.5 meter/59.05 inches)
50D2 # 62305~ / 40D2 # 46451~ -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
2599AA-6-0400 Oil pipe (1 ea.=1.5 meter/59.05 inches)
50D2 # 62305~ / 40D2 # 46451~Oil pipe (1 ea.=1.5 meter/59.05 inches)
50D2 # 62305~ / 40D2 # 46451~ -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
263B7-09054-0 Clip @ 9.5Clip @ 9.5
-
3AB-35143-0 Clip @ 9.5Clip @ 9.5
-
2799AA-4-0230 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-4-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
283C7-09056-0 Clip 8.5Clip 8.5
-
293E3-71035-0 Plate, oil filter
50D2 # 62305~ / 40D2 # 46451~Plate, oil filter
50D2 # 62305~ / 40D2 # 46451~
