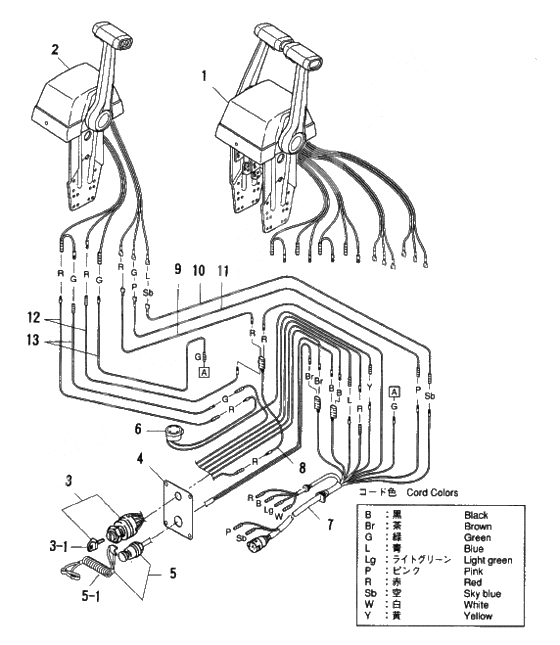

Optional parts (3) для Tohatsu M40D2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7-84520-0 Control box ass'y(rc6at)
FOR TWINControl box ass'y(rc6at)
FOR TWIN -
23C7-84480-0 Rc6b ??????????assy
FOR SINGLERc6b ??????????assy
FOR SINGLE -
3353-76020-3 Main Switch Ass'y
( ) IS QTY FOR TWIN ENGINESMain Switch Ass'y
( ) IS QTY FOR TWIN ENGINES -
3-13F3-76217-0 Key, main switch
( ) IS QTY FOR TWIN ENGINESKey, main switch
( ) IS QTY FOR TWIN ENGINES -
3-13F3-76218-0 Key, Main Switch (Earmark)
( ) IS QTY FOR TWIN ENGINESKey, Main Switch (Earmark)
( ) IS QTY FOR TWIN ENGINES -
3-13F3-76219-0 Key, Main Switch (Earmark)
( ) IS QTY FOR TWIN ENGINESKey, Main Switch (Earmark)
( ) IS QTY FOR TWIN ENGINES -
4805-76201-1 Panel main switch (can also use 99998swpan)
( ) IS QTY FOR TWIN ENGINESPanel main switch (can also use 99998swpan)
( ) IS QTY FOR TWIN ENGINES -
53A3-06830-0 Emergency Stop Switch B Ass'y
( ) IS QTY FOR TWIN ENGINESEmergency Stop Switch B Ass'y
( ) IS QTY FOR TWIN ENGINES -
5-1353-06821-0 Lock, lanyard stop switch
( ) IS QTY FOR TWIN ENGINESLock, lanyard stop switch
( ) IS QTY FOR TWIN ENGINES -
63A3-76171-0 Over-heat Buzzer
( ) IS QTY FOR TWIN ENGINESOver-heat Buzzer
( ) IS QTY FOR TWIN ENGINES -
3C8-76171-0 Over-heat BuzzerOver-heat Buzzer
-
73A3-76115-0 Cord ass'y b
( ) IS QTY FOR TWIN ENGINES / L=6200Cord ass'y b
( ) IS QTY FOR TWIN ENGINES / L=6200 -
8353-72546-0 Assist Cord(Red)
( ) IS QTY FOR TWIN ENGINESAssist Cord(Red)
( ) IS QTY FOR TWIN ENGINES -
93C7-84475-0 Cord,ptt Switch(red)
( ) IS QTY FOR TWIN ENGINESCord,ptt Switch(red)
( ) IS QTY FOR TWIN ENGINES -
103C7-84476-0 Cord,ptt Switch(sky-blue)
( ) IS QTY FOR TWIN ENGINESCord,ptt Switch(sky-blue)
( ) IS QTY FOR TWIN ENGINES -
113C7-84477-0 Cord PTT Switch,Pink
( ) IS QTY FOR TWIN ENGINESCord PTT Switch,Pink
( ) IS QTY FOR TWIN ENGINES -
123C7-84470-1 Cord,neutral switch,red
( ) IS QTY FOR TWIN ENGINESCord,neutral switch,red
( ) IS QTY FOR TWIN ENGINES -
133C7-84471-1 Cord,Neutral Switch,Green
( ) IS QTY FOR TWIN ENGINESCord,Neutral Switch,Green
( ) IS QTY FOR TWIN ENGINES
