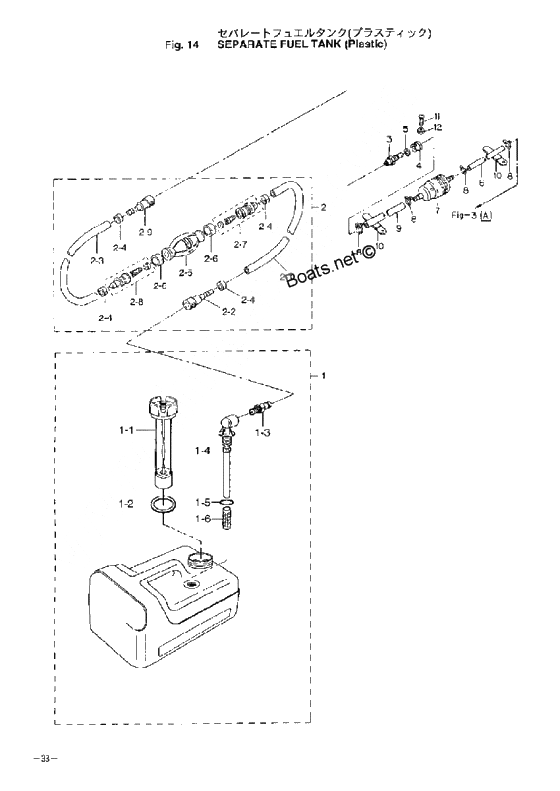

Fuel tank (remote) для Tohatsu M5BS - 2003 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 New part
UniqueNew part
Unique -
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23B7-70200-3 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-93B2-70250-1 New partNew part
-
33B2-70260-1 New partNew part
-
4369-70263-0 Bushing fuel connectorBushing fuel connector
-
5941303-1000 Spring WasherSpring Washer
-
7369-02230-0 Фильтр топливныйФильтр топливный
-
8338-02215-0 ClipClip
-
10309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
11921503-0414 Stud BoltStud Bolt
-
12930103-0400 NutNut
