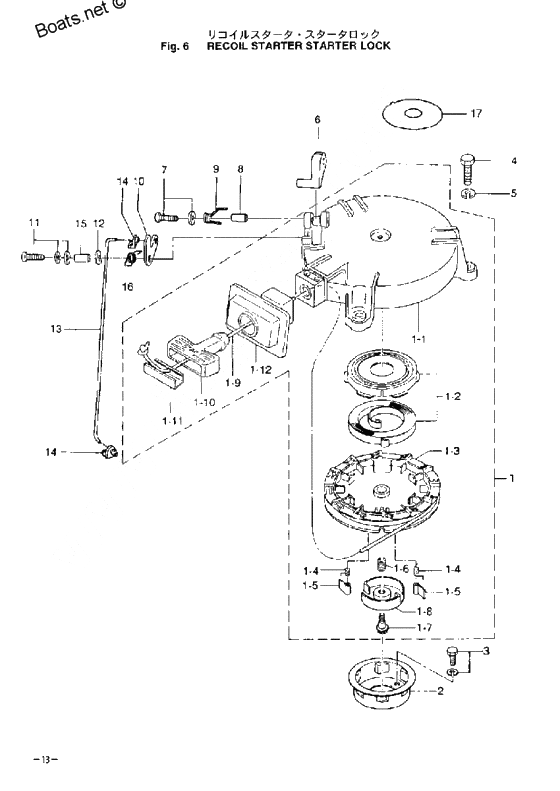

Recoil starter, starter lock для Tohatsu M5BS - 2003 года выпуска
-
№АртикулНазвание
-
13R1-05090-0 Recoil starter ass'y
5B # 26924-, 4C # 83587-Recoil starter ass'y
5B # 26924-, 4C # 83587- -
1-13R1-05105-0 Starter CaseStarter Case
-
1-103R1-05019-0 Starter HandleStarter Handle
-
1-113R1-05131-0 Rope anchorRope anchor
-
1-123B2-05116-0 Seal plate starterSeal plate starter
-
1-23B2-05010-0 Starter spring setStarter spring set
-
1-33B2-05104-0 ReelReel
-
1-43R1-05012-0 Return SpringReturn Spring
-
1-53B2-05003-0 RatchetRatchet
-
1-6369-05007-0 Spring WasherSpring Washer
-
1-73B2-05138-0 Bolt starter shaftBolt starter shaft
-
1-83B2-05006-0 Friction PlateFriction Plate
-
1-93B2-05013-0 Starter RopeStarter Rope
-
3910121-6612 BoltBolt
-
4910114-0623 BoltBolt
-
5941303-0600 New partNew part
-
6338-05252-0 Lock starterLock starter
-
7921503-5430 Stud BoltStud Bolt
-
8338-05255-0 Coller starter lock shaftColler starter lock shaft
-
9338-05216-0 Spring starter lock shaftSpring starter lock shaft
-
103R1-05253-0 Cam, starter lock
5B # 26924-, 4C # 83587-Cam, starter lock
5B # 26924-, 4C # 83587- -
11921503-7616 Stud BoltStud Bolt
-
123H6-05259-0 Washer
5B # 26924-, 4C # 83587-Washer
5B # 26924-, 4C # 83587- -
13369-05217-0 RodRod
-
369-05217-1 RodRod
-
14345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
153R1-05215-0 collar,6.1-8-6.5
5B # 26924-, 4C # 83587-collar,6.1-8-6.5
5B # 26924-, 4C # 83587- -
163R1-05258-0 Spring, Starter Lock Cam
5B # 26924-, 4C # 83587-Spring, Starter Lock Cam
5B # 26924-, 4C # 83587- -
173R0-72181-0 Caution Label B
5B # 26924-, 4C # 83587-Caution Label B
5B # 26924-, 4C # 83587-
