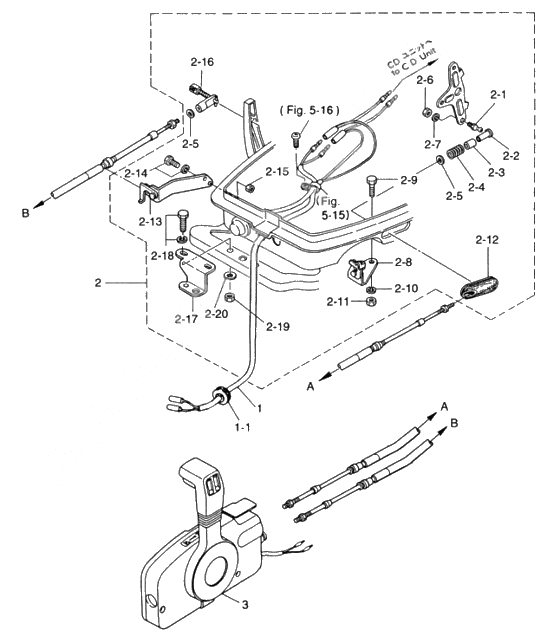

Optional parts remote control для Tohatsu M9.9D2 - 2003 года выпуска
-
№АртикулНазвание
-
1361-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
1361-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
-
1-1345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
2398-83880-1 S.r.c. fitting parts ass'yS.r.c. fitting parts ass'y
-
2-1345-83721-0 Шаровое соединениеШаровое соединение
-
2-10941303-0500 Spring WasherSpring Washer
-
2-11930103-0500 NutNut
-
2-12346-83732-0 Grommet throttle cableGrommet throttle cable
-
2-13350-83870-0 Clutch cable clip ass'yClutch cable clip ass'y
-
2-14910103-6616 BoltBolt
-
2-15930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
2-163A1-83710-1 Sleeve b ass'ySleeve b ass'y
-
2-17346-84830-1 Steering Hook PlateSteering Hook Plate
-
2-18910103-6830 BoltBolt
-
2-19930103-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
2-23A1-83722-0 Ball holderBall holder
-
2-20940103-0800 Washer -> 940113-0800
OR 940113-0800Washer -> 940113-0800
OR 940113-0800 -
2-3332-83723-0 Cap ball jointCap ball joint
-
2-4332-83724-0 Spring ball jointSpring ball joint
-
2-5332-83725-0 WasherWasher
-
2-6930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
2-7941303-0600 New partNew part
-
2-8350-83820-0 Cable clip ass'yCable clip ass'y
-
2-9910103-0518 BoltBolt
-
33B7-84360-0 Single remote control box ass'y(rc5d)
FOR MF/EF TYPE / TOHATSUSingle remote control box ass'y(rc5d)
FOR MF/EF TYPE / TOHATSU -
33B7-84350-1 Single remote control box ass'y(rc5c)
FOR EP TYPE / TOHATSUSingle remote control box ass'y(rc5c)
FOR EP TYPE / TOHATSU -
3373-84360-2 Single remote control box ass'y (rc8d)
FOR MF/EF TYPE / NISSANSingle remote control box ass'y (rc8d)
FOR MF/EF TYPE / NISSAN -
3383-84350-2 Single remote control box ass'y (rc8c)
FOR EP TYPE / NISSANSingle remote control box ass'y (rc8c)
FOR EP TYPE / NISSAN
