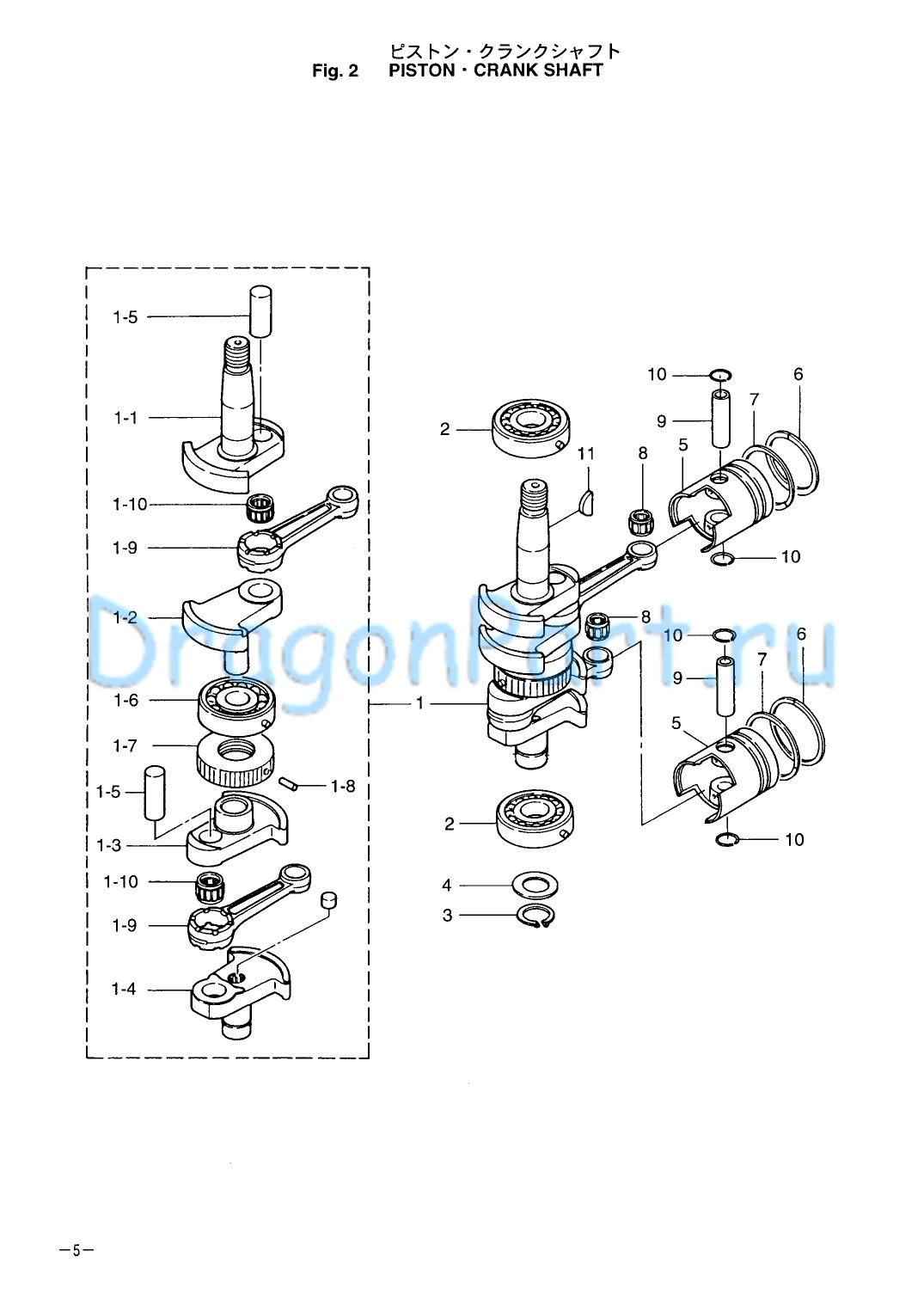

PISTON CRANK SHAFT для Tohatsu M9.9D2 - 2003 года выпуска

№

Артикул

Название
1

350-00030-0 Crank Shaft

Crank Shaft

43 690 ₽
1-1

350-00031-0 * Crank Shaft "A”

* Crank Shaft "A”

9 650 ₽
1-2

350-00032-0 * Crank Shaft “B”

* Crank Shaft “B”

11 930 ₽
1-3

350-00033-0 * Crank Shaft "C"

* Crank Shaft "C"

10 520 ₽
1-4

350-00034-1 * Crank Shaft “D"

* Crank Shaft “D"

11 270 ₽
1-5

350-00061-0 * Crank Pin

* Crank Pin

1 330 ₽
1-6

9603-3-6305 * Ball Bearing, 6305

* Ball Bearing, 6305

3 940 ₽
1-7

350-00051-1 * Labyrinth Packing

* Labyrinth Packing

3 710 ₽
1-8

951407-0308 * Spring Pin, 3-8

* Spring Pin, 3-8

120 ₽
1-9

350-00040-0 * Connecting Rod

* Connecting Rod

8 980 ₽
1-10

3G4-00043-0 * Needle Bearing, 20~26~16

* Needle Bearing, 20~26~16

2 080 ₽
2

9603-3-6305 Ball Bearing, 6305

Ball Bearing, 6305

3 940 ₽
3

945102-2500 Clip

Clip

90 ₽
4

346-00116-0 Spacer, 25.2-34-1.6

Spacer, 25.2-34-1.6

150 ₽
5

351-00001-1 Piston (Std)

Piston (Std)

4 340 ₽
5

351-00004-1 Piston (0.5mm O/S)
Option

Piston (0.5mm O/S)
Option

8 300 ₽
6

3G2-00011-0 Piston Ring 1 st (Std)

Piston Ring 1 st (Std)

1 740 ₽
6

3G2-00014-0 Piston Ring 1st (0.5mm O/S)
Option

Piston Ring 1st (0.5mm O/S)
Option

2 150 ₽
7

351-00011-0 Piston Ring 2nd (Std)

Piston Ring 2nd (Std)

1 710 ₽
7

351-00014-0 Piston Ring 2nd (0.5mm O/S)
Option

Piston Ring 2nd (0.5mm O/S)
Option

2 190 ₽
8

350-00042-0 Needle Bearing, 14-18-20

Needle Bearing, 14-18-20

1 880 ₽
9

332-00021-0 Piston Pin

Piston Pin

1 540 ₽
10

350-00024-1 Clip, Piston Pin

Clip, Piston Pin

320 ₽
11

334-00131-0 Key, Magneto

Key, Magneto

630 ₽
