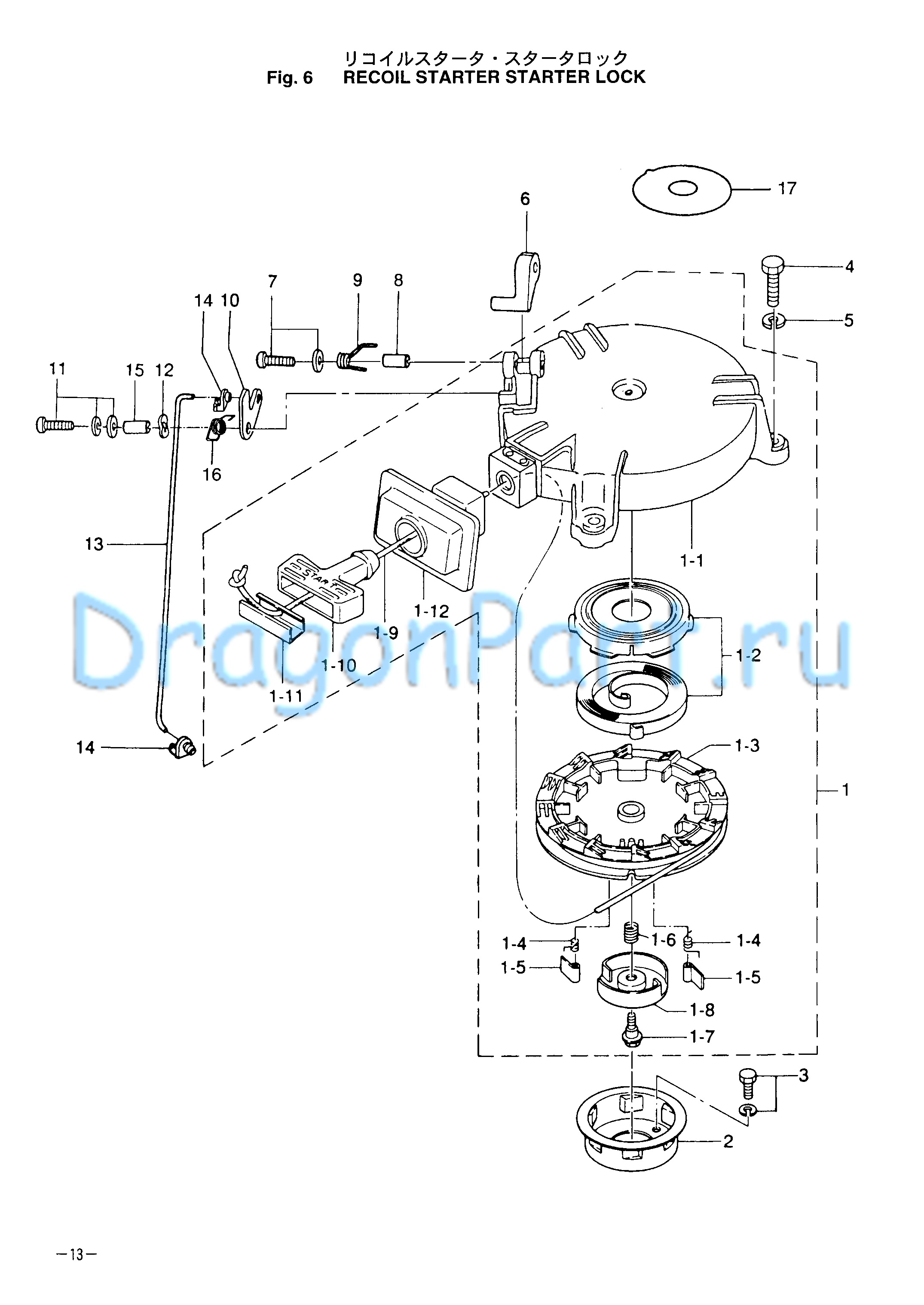

RECOIL STARTER STARTER LOCK для Tohatsu M4C - 2004 года выпуска
-
№АртикулНазвание
-
13R1-05090-0 Recoil Starter
5B # 26924- 4C # 83587-Recoil Starter
5B # 26924- 4C # 83587- -
1-13R1-05105-0 * Starter Case
5B # 26924- 4C # 83587-* Starter Case
5B # 26924- 4C # 83587- -
1-23B2-05010-0 * Starter Spring Set* Starter Spring Set
-
1-33B2-05104-0 * Reel* Reel
-
1-43R1-05012-0 * Return Spring
5B # 26924- 4C # 83587-* Return Spring
5B # 26924- 4C # 83587- -
1-53B2-05003-0 * Ratchet* Ratchet
-
1-6369-05007-0 * Friction Spring* Friction Spring
-
1-7382-05138-0 * Bolt, Starter Shaft* Bolt, Starter Shaft
-
1-83B2-05006-0 * Friction Plate* Friction Plate
-
1-93B2-05013-0 * Starter Rope
cb 4.5-1620* Starter Rope
cb 4.5-1620 -
1-103R1-05019-0 * Starter Handle
5B # 26924- 4C # 83587-* Starter Handle
5B # 26924- 4C # 83587- -
1-113R1-05131-0 * Rope Anchor
5B # 26924- 4C # 83587-* Rope Anchor
5B # 26924- 4C # 83587- -
1-12382-05116-0 * Seal Plate, Starter* Seal Plate, Starter
-
23B2-05901-0 Starter PulleyStarter Pulley
-
3910121-6612 BoltBolt
-
4910114-0623 BoltBolt
-
5941303-0600 Spring WasherSpring Washer
-
6338-05252-0 Starter LockStarter Lock
-
7921503-5430 ScrewScrew
-
8338-05255-0 Collar, 4-6-21Collar, 4-6-21
-
9338-05216-0 Spring, Starter LockSpring, Starter Lock
-
103R1-05253-0 Cam, Starter Lock
5B # 26924- 4C # 83587-Cam, Starter Lock
5B # 26924- 4C # 83587- -
11921503-7616 ScrewScrew
-
123H6-05259-0 Wave Washer
5B # 26924- 4C # 83587-Wave Washer
5B # 26924- 4C # 83587- -
13369-05217-1 Rod, Starter LockRod, Starter Lock
-
14345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
-
153R1-05215-0 Collar, 6.1-8-6.5
5B # 26924- 4C # 83587-Collar, 6.1-8-6.5
5B # 26924- 4C # 83587- -
163R1-05258-0 Spring, Starter Lock Cam
5B # 26924- 4C # 83587-Spring, Starter Lock Cam
5B # 26924- 4C # 83587- -
173R0-72181-0 Caution Label
5B # 26924- 4C # 83587-Caution Label
5B # 26924- 4C # 83587-
