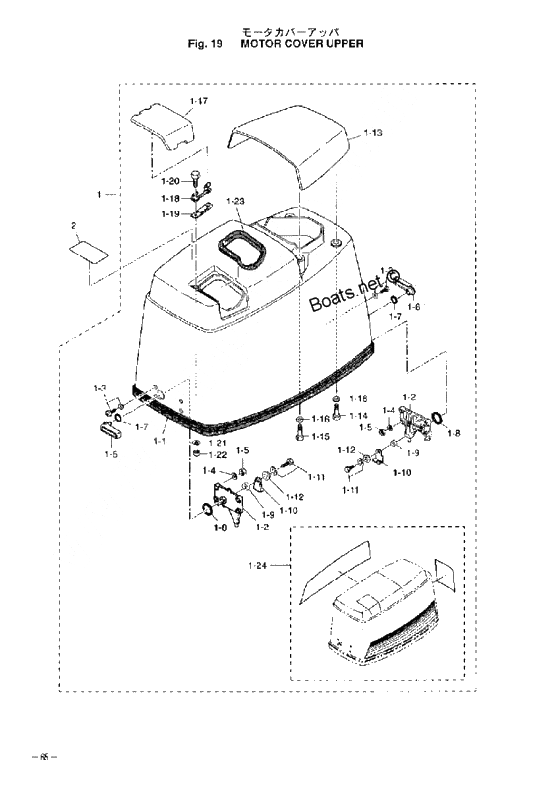

Motor cover upper для Tohatsu M140A2 - 2005 года выпуска
-
№АртикулНазвание
-
13C7S67510-2 Upper motor cover ass'y
UNIQUE- 3D9N67510-5Upper motor cover ass'y
UNIQUE- 3D9N67510-5 -
1-13C7-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
1-10353-67142-1 Cover HookCover Hook
-
1-11910103-6616 BoltBolt
-
1-123C8-66308-0 New partNew part
-
1-14910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
1-15910103-0616 BoltBolt
-
1-173B7S67210-0 Filler lidFiller lid
-
1-183B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
1-193B7-67212-0 Spring, filler lidSpring, filler lid
-
1-2353-67517-1 Locating bracketLocating bracket
-
1-20910103-0614 BoltBolt
-
1-21941303-0600 New partNew part
-
1-21940113-0600 WasherWasher
-
1-22930103-0600 NutNut
-
1-233B7-67213-0 Seal rubber, filler lidSeal rubber, filler lid
-
1-243C7S87802-0 Decal set for m140a
-UNIQUE- 3D9N87801-1Decal set for m140a
-UNIQUE- 3D9N87801-1 -
1-243C7S87802-1 Набор этикетокНабор этикеток
-
1-3921703-5520 Stud BoltStud Bolt
-
1-4941303-0500 Spring WasherSpring Washer
-
1-5930111-0500 NutNut
-
1-6353S67141-0 Hook leverHook lever
-
1-7338-62435-0 O-RingO-Ring
-
1-8353-67147-1 Seal ringSeal ring
-
1-9353-67105-0 BushingBushing
-
23C7-72180-0 Caution label (ce-a)Caution label (ce-a)
