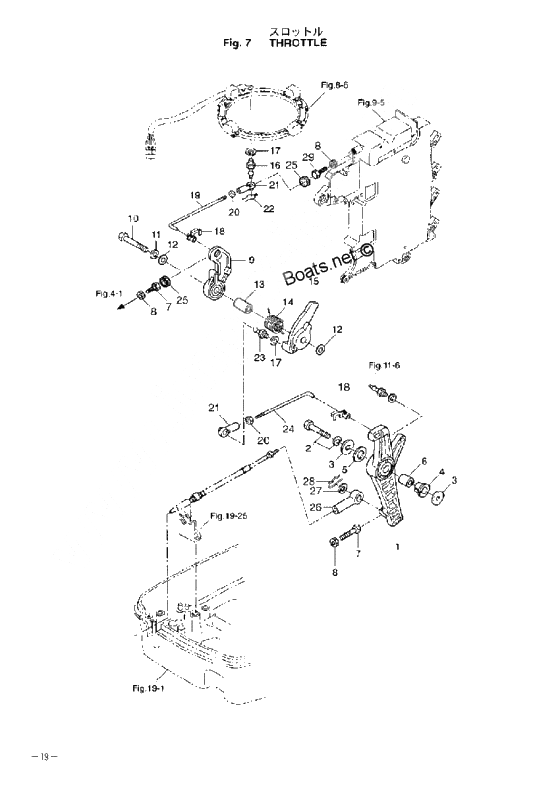

Throttle для Tohatsu M140A2 - 2005 года выпуска
-
№АртикулНазвание
-
13B7B63711-3 Advancer ArmAdvancer Arm
-
2910103-6835 BoltBolt
-
33B7-63730-0 WasherWasher
-
43B7-63713-0 BushingBushing
-
53B7-63731-0 WasherWasher
-
63B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
7910103-0625 BoltBolt
-
8930103-0600 NutNut
-
93B7-63712-0 Advancer leverAdvancer lever
-
10910103-0845 BoltBolt
-
11941303-0800 Spring WasherSpring Washer
-
12940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
133B7-63721-0 Collar, throttle camCollar, throttle cam
-
143B7-63727-0 Spring, throttle camSpring, throttle cam
-
153B7-63718-0 Throttle CamThrottle Cam
-
163B7-05244-0 Ball joint cBall joint c
-
17941303-0600 New partNew part
-
183B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
193C7-63715-0 Link rod bLink rod b
-
20930103-0500 Nut
or 930106-0500Nut
or 930106-0500 -
213B7-05243-0 New partNew part
-
22951703-0500 Snap RetainerSnap Retainer
-
23346-05228-0 New partNew part
-
243C7-63716-0 Link rod aLink rod a
-
253B7-63734-0 Демпфер стопораДемпфер стопора
-
263B7-83715-0 Cable JointCable Joint
-
27353-83719-0 WasherWasher
-
28951603-0800 R-PinR-Pin
-
29910103-0620 BoltBolt
