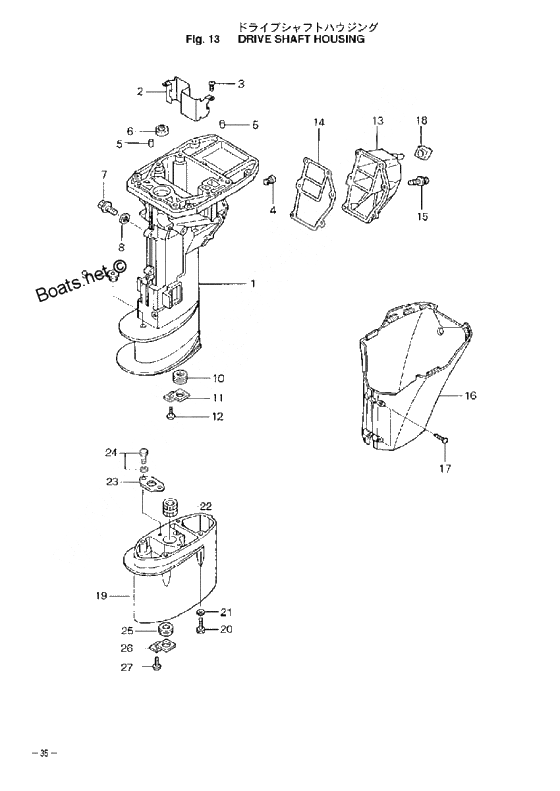

Drive shaft housing для Tohatsu MFS8A2 - 2005 года выпуска
-
№АртикулНазвание
-
13V1S61020-0 Drive shaft housing ass'y (s)
ShortDrive shaft housing ass'y (s)
Short -
13V1S61030-0 Deive shaft housing ass'y(l)
LongDeive shaft housing ass'y(l)
Long -
23V1-07440-0 Guide PlateGuide Plate
-
3921503-6510 Stud BoltStud Bolt
-
43H6-07257-0 Exhaust PlugExhaust Plug
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
63B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
73R3-07405-1 Bolt, DrainBolt, Drain
-
83R3-07406-0 WasherWasher
-
9369-66043-1 Grommet Cam RodGrommet Cam Rod
-
103V1-65204-0 Rubber Mount,13-2.5
for Transom S" and "L""Rubber Mount,13-2.5
for Transom S" and "L"" -
113V1-65203-0 Lock Plate
for Transom S" and "L""Lock Plate
for Transom S" and "L"" -
133V1-61208-0 Cover,Idol PortCover,Idol Port
-
143V1-61220-0 Gasket,Idle PortGasket,Idle Port
-
163V1S61225-0 ApronApron
-
173F3-02423-0 Screw 5-30Screw 5-30
-
183V1-61212-0 Grommet,Idle PortGrommet,Idle Port
-
193B2S61110-2 Extension housing ul
for Transom UL""Extension housing ul
for Transom UL"" -
21940113-0600 Washer
# 028479XC- for Transom UL""Washer
# 028479XC- for Transom UL"" -
223B2-60003-1 Bushing Drive Shaft Housing
for Transom UL""Bushing Drive Shaft Housing
for Transom UL"" -
233V1-64332-0 Stopoer,Bushing
for Transom UL""Stopoer,Bushing
for Transom UL"" -
24910113-5612 Bolt
for Transom UL""Bolt
for Transom UL"" -
263V1-65203-0 Lock Plate
for Transom UL""Lock Plate
for Transom UL""
