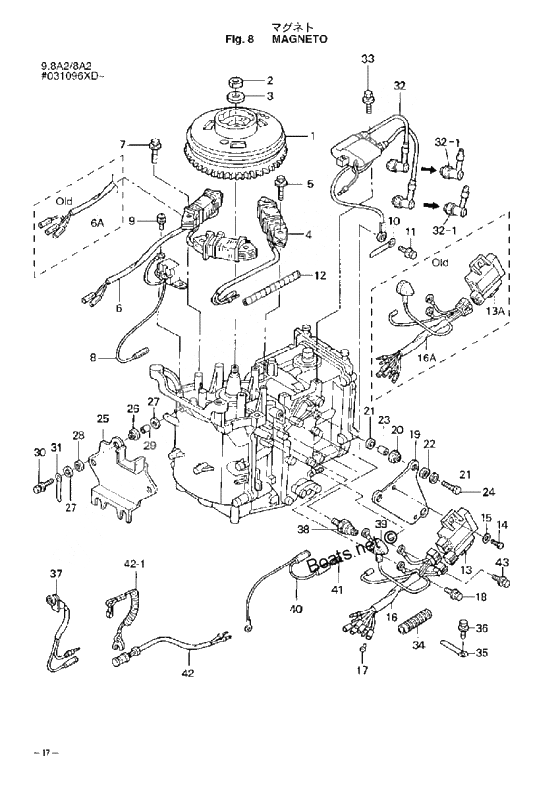

Magneto для Tohatsu MFS8A2 - 2005 года выпуска

№

Артикул

Название
1

3AA-06091-0 Flywheel Cap
# 031096XD- FF-51 with Ring Gear

Flywheel Cap
# 031096XD- FF-51 with Ring Gear

30 790 ₽
2

369-00132-0 Nut Magneto

Nut Magneto

290 ₽
3

940121-1200 Washer

Washer

230 ₽
4

3V1-06021-0 Exciter coil
# 027338XD- Cord Color Black, Red, and Blue

Exciter coil
# 027338XD- Cord Color Black, Red, and Blue

3 970 ₽
4

3AA-06021-0 Excite Coil
# 031096XD- Cord Color Black, Red, and Blue

Excite Coil
# 031096XD- Cord Color Black, Red, and Blue

5 560 ₽
5

910103-5630 Bolt

Bolt

170 ₽
6

3AA-06023-0 Alternator Ass'y
9.8A2/8A2 Single Connector for EF & EP # 031096XD-

Alternator Ass'y
9.8A2/8A2 Single Connector for EF & EP # 031096XD-

11 730 ₽
6A

3V1-06023-0 Alternator
9.8A/8A Branching Connector for EF & EP -#027338XD

Alternator
9.8A/8A Branching Connector for EF & EP -#027338XD

7 450 ₽
8

3V1-06071-0 Pulsar Coil

Pulsar Coil

3 650 ₽
9

921503-0512 Stud Bolt

Stud Bolt

120 ₽
10

309-06972-0 Clamp,6.5-47.5P
Alternator & Exciter Cable

Clamp,6.5-47.5P
Alternator & Exciter Cable

190 ₽
12

3V1-76148-0 Spiral Tube Protector
тИЕ10 - 100, Alternator & Exciter Cable

Spiral Tube Protector
тИЕ10 - 100, Alternator & Exciter Cable

660 ₽
13

3AA-06060-0 C.D. Unit
9.8A2/8A2 # 031096XD- 6P and 4P Connector

C.D. Unit
9.8A2/8A2 # 031096XD- 6P and 4P Connector

17 320 ₽
13A

3V1-06060-1 C.d.unit
9.8A/8A -#027338XD 8P Connector

C.d.unit
9.8A/8A -#027338XD 8P Connector

18 090 ₽
14

3V1-60108-0 Bolt,6-16 Pre Coated
Old Part No. 3V1-06864-0

Bolt,6-16 Pre Coated
Old Part No. 3V1-06864-0

190 ₽
15

3C8-66308-0 New part

New part

140 ₽
16

3AA-06167-0 Cord Ass'y C.D. Unit
9.8A2/8A2 # 031096XD- 6P and 4P Connector

Cord Ass'y C.D. Unit
9.8A2/8A2 # 031096XD- 6P and 4P Connector

9 540 ₽
16A

3V1-06167-0 Cd unit cord ass'y
9.8A/8A -#027338XD 8P Connector

Cd unit cord ass'y
9.8A/8A -#027338XD 8P Connector

6 620 ₽
17

3A3-76037-0 Plug B Cable Terminal
Light Green & White Cable

Plug B Cable Terminal
Light Green & White Cable

140 ₽
19

3V1-06061-0 Cd unit bracket

Cd unit bracket

1 260 ₽
20

3T5-06920-0 Mount Rubber

Mount Rubber

140 ₽
22

3B7-06305-0 Mount Rubber, 9-16-4.3

Mount Rubber, 9-16-4.3

110 ₽
23

3A0-76079-0 Collar, 6.2-9-7.5

Collar, 6.2-9-7.5

600 ₽
25

3V1-06900-0 Electric bracket
for EF & EP

Electric bracket
for EF & EP

2 740 ₽
26

3T5-06920-0 Mount Rubber
for EF & EP

Mount Rubber
for EF & EP

140 ₽
27

3C8-66308-0 New part
for EF & EP

New part
for EF & EP

140 ₽
28

3B7-06305-0 Mount Rubber, 9-16-4.3
for EF & EP

Mount Rubber, 9-16-4.3
for EF & EP

110 ₽
29

3A0-76079-0 Collar, 6.2-9-7.5
for EF & EP

Collar, 6.2-9-7.5
for EF & EP

600 ₽
31

3T4-06972-0 Плата струбцины
for EP

Плата струбцины
for EP

210 ₽
32

3V1-06040-0 Ignition Coil

Ignition Coil

11 740 ₽
32-1

3H6-06999-0 Plug Cap (Registance)

Plug Cap (Registance)

3 710 ₽
34

3V1-06133-0 Protector
тИЕ34 - 70 for MF

Protector
тИЕ34 - 70 for MF

460 ₽
36

910113-5612 Bolt
for MF

Bolt
for MF

170 ₽
37

3R3-71040-0 Pilot Lamp Ass'y

Pilot Lamp Ass'y

2 270 ₽
38

3H6-07611-0 Switch, Oil Pressure

Switch, Oil Pressure

2 010 ₽
39

3H6-07612-0 Grommet, oil pressure switch

Grommet, oil pressure switch

280 ₽
40

3V5-72678-0 Separate Cord(Black)

Separate Cord(Black)

880 ₽
41

3A3-76037-0 Plug B Cable Terminal

Plug B Cable Terminal

140 ₽
42

398-06830-0 Safety Switch Ass'y
for MF & EF

Safety Switch Ass'y
for MF & EF

6 700 ₽
42-1

353-06821-0 Lock, lanyard stop switch

Lock, lanyard stop switch

1 340 ₽
