Accessories для Tohatsu MD115A - 2006 года выпуска
-

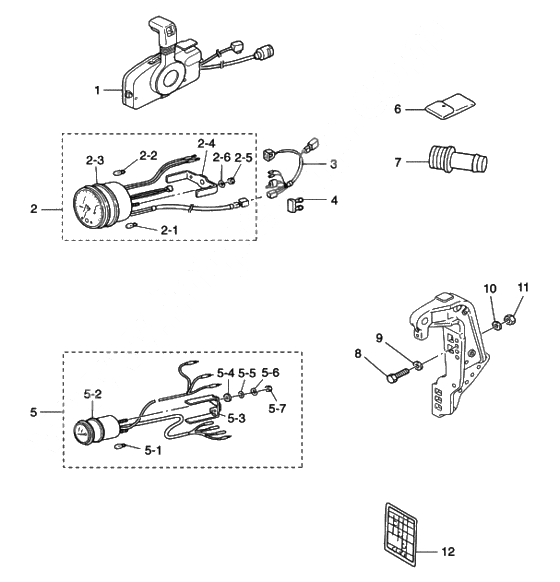

№АртикулНазвание
-
13T5Q84500-1 Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
TOHATSURc box rc5f (md40b/50b md70b/90b/115) tldi amb
TOHATSU -
3GFQ84500-0 Rc box rc5f (md40b/50b md70b/90b/115) tldi ambRc box rc5f (md40b/50b md70b/90b/115) tldi amb
-
13U5Q84500-1 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSANRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSAN -
3GHQ84500-0 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi ambRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
-
23Z5-72640-1 Tachometer - nlaTachometer - nla
-
2-13B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-33B7-72656-0 Damper, MeterDamper, Meter
-
2-43B7-72661-0 Plate, FittingPlate, Fitting
-
2-5930203-0500 NutNut
-
2-6941303-0500 Spring WasherSpring Washer
-
33T5-72537-0 Lead wire, meter
L=8000Lead wire, meter
L=8000 -
4353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
53E0-72571-0 Trim meter ass'yTrim meter ass'y
-
5-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
5-23B7-72655-0 Damper, MeterDamper, Meter
-
5-33B7-72665-0 Plate, FittingPlate, Fitting
-
5-43B7-72666-0 Insulated washerInsulated washer
-
5-5940103-0400 WasherWasher
-
5-6941303-0400 Spring WasherSpring Washer
-
5-7930203-0400 NutNut
-
63H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
73T1-72405-0 Hose jointHose joint
-
83C7-62133-2 BoltBolt
-
9353-61334-0 WasherWasher
-
10940103-1200 Washer
OR 940113-1200Washer
OR 940113-1200 -
113C7-62139-1 Nut,P1.25Nut,P1.25
-
123T5-72050-0 New partNew part
