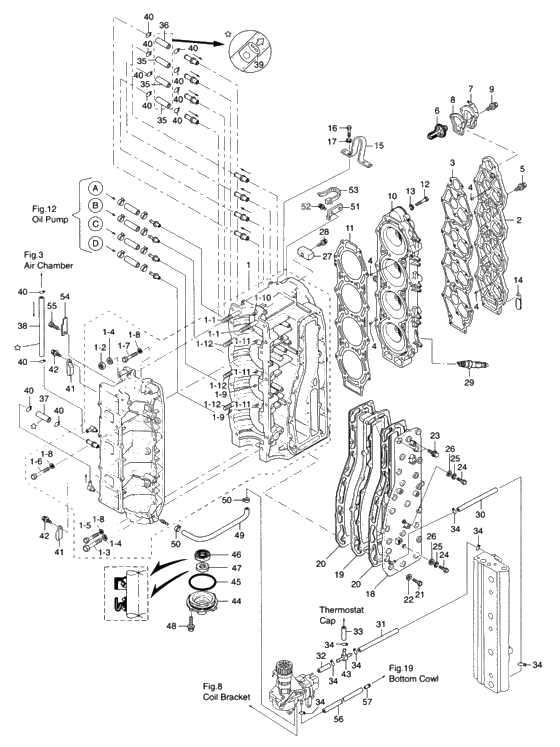

Cylinder crank case для Tohatsu MD115A - 2006 года выпуска
-
№АртикулНазвание
-
13T1B01100-0 Crank case cylinderCrank case cylinder
-
1-1915324-1065 Stud BoltStud Bolt
-
1-103T9-00117-0 Knock, Main BearingKnock, Main Bearing
-
1-11345-00117-0 Dowel PinDowel Pin
-
1-12915324-1055 Stud BoltStud Bolt
-
1-2931121-1000 NutNut
-
1-3916129-1065 BoltBolt
-
1-43B7-01116-0 WasherWasher
-
1-5916124-0850 BoltBolt
-
1-6916124-0865 BoltBolt
-
1-7916124-0840 BoltBolt
-
1-8345-01015-0 WasherWasher
-
1-9345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23T1B01021-0 Cover Cylinder HeadCover Cylinder Head
-
33T1-01024-0 Gasket cylinder head coverGasket cylinder head cover
-
4334-65012-0 СтопорСтопор
-
5910121-7625 BoltBolt
-
63C7-01030-0 New partNew part
-
73T9B01060-0 Cup, ThermostatCup, Thermostat
-
83T9-01032-0 Gasket,thermostat capGasket,thermostat cap
-
9910113-5640 BoltBolt
-
103T1B01091-0 Cylinder head md115aCylinder head md115a
-
113T1-01005-0 Gasket cylinder headGasket cylinder head
-
12916129-0875 BoltBolt
-
13345-01015-0 WasherWasher
-
143T5-06971-0 Плата струбциныПлата струбцины
-
153C7B01513-1 HangerHanger
-
16910114-0820 BoltBolt
-
17941322-0800 Spring WasherSpring Washer
-
183T1B02300-0 Exhaust cover outerExhaust cover outer
-
193C7B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
203C7-02305-0 Gasket, exhaust coverGasket, exhaust cover
-
21910114-0835 BoltBolt
-
22940121-0800 WasherWasher
-
23910113-5840 BoltBolt
-
24910114-0630 BoltBolt
-
25941322-0600 Spring WasherSpring Washer
-
26940121-0600 WasherWasher
-
273B7-60218-1 AnodeAnode
-
28910103-5630 BoltBolt
-
299701-1-1109 Spark plug izfr5j
NGK : IZFRSJSpark plug izfr5j
NGK : IZFRSJ -
3098AB-5-1000 New part
EXHAUST COVER - AIR RAILNew part
EXHAUST COVER - AIR RAIL -
3198AB-5-1000 New part
AIR RAIL-T-NIPPLENew part
AIR RAIL-T-NIPPLE -
3298AB-5-1000 New part
T-NIPPLE - AIR COMPRESSORNew part
T-NIPPLE - AIR COMPRESSOR -
3398AB-5-1000 New part
T-NIPPLE - THERMOSTAT CAPNew part
T-NIPPLE - THERMOSTAT CAP -
34338-02215-0 ClipClip
-
3598AL-4-1000 Rubber pipe
CYLINDER #1 2 3 (STARBOARD)Rubber pipe
CYLINDER #1 2 3 (STARBOARD) -
3698AL-4-1000 Rubber pipe
CYLINDER #4 (STARBOARD)Rubber pipe
CYLINDER #4 (STARBOARD) -
3798AL-4-1000 Rubber pipe
CRANK CASE (STARBOARD)Rubber pipe
CRANK CASE (STARBOARD) -
3898AL-4-1000 Rubber pipe
CRANK CASE (STARBOARD)Rubber pipe
CRANK CASE (STARBOARD) -
39393-01160-0 Check ValveCheck Valve
-
40338-01133-0 ClipClip
-
41345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
42910103-6612 BoltBolt
-
433T7-01175-0 T-NippleT-Nipple
-
443B7-01291-1 Head lower, crank caseHead lower, crank case
-
45171-00053-0 O-RingO-Ring
-
463T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
473C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
48910113-5620 BoltBolt
-
4999AA-2-1000 Vinyl Pipe
COMPRESSOR - #4 CRANKCASEVinyl Pipe
COMPRESSOR - #4 CRANKCASE -
503B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
513T1-76174-0 Stay lead wire bandStay lead wire band
-
52910103-6612 BoltBolt
-
533T1-84398-0 Lead wire band 170 (local purchase)Lead wire band 170 (local purchase)
-
543T1-06972-0 PlatePlate
-
55910103-6610 BoltBolt
-
563T1-01138-0 Water NippleWater Nipple
-
5798AB-5-1000 New partNew part
