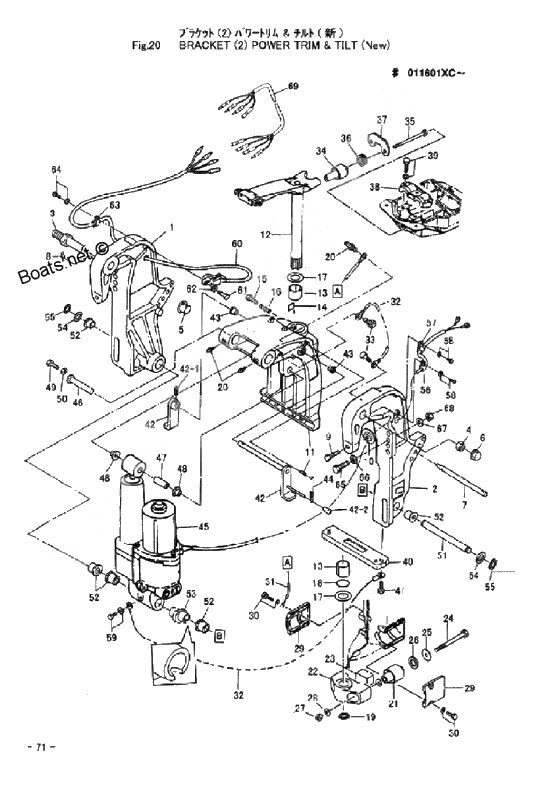

Bracket (2) power trim & tilt (new) для Tohatsu MD40B - 2006 года выпуска

№

Артикул

Название
2

3Z5Q77212-0 Stern bracket left (amb)
Stern Bracket (Left) Port

Stern bracket left (amb)
Stern Bracket (Left) Port

16 480 ₽
3

3AD-62191-0 Swivel bracket bolt (ptt)
Bracket Bolt or 3Z5-62191-0

Swivel bracket bolt (ptt)
Bracket Bolt or 3Z5-62191-0

4 780 ₽
4

346-62124-1 Bracket nut

Bracket nut

1 630 ₽
5

3C8-77213-0 Bushing Bracket Bolt

Bushing Bracket Bolt

1 130 ₽
6

346-62127-0 Cap,Bracket Bolt
for F" Type"

Cap,Bracket Bolt
for F" Type"

200 ₽
7

3R0-77118-0 Thrust Rod

Thrust Rod

2 670 ₽
8

951603-1000 R-Pin

R-Pin

120 ₽
9

3C8-77214-0 Винт струбцины

Винт струбцины

1 300 ₽
10

332-62101-0 Pad clamp screw

Pad clamp screw

1 230 ₽
11

3Z5Q77215-0 Swivel bracket ptt (amb)

Swivel bracket ptt (amb)

31 100 ₽
12

3Z5Q62010-0 Steering shaft assy (amb)

Steering shaft assy (amb)

30 910 ₽
13

353-62417-0 Bushing

Bushing

550 ₽
14

345-62441-0 Friction Plate

Friction Plate

1 080 ₽
16

346-62421-1 Spring Friction Plate

Spring Friction Plate

340 ₽
17

353-62423-1 Thrust Plate

Thrust Plate

420 ₽
18

353-62415-0 O-Ring

O-Ring

230 ₽
20

344-67177-0 Масленка

Масленка

210 ₽
21

3C8-61302-0 Lower Mount Rubber

Lower Mount Rubber

3 330 ₽
22

3Z5Q61411-0 Mount bracket (amb)

Mount bracket (amb)

13 830 ₽
23

3C8-61336-0 Damper Rubber

Damper Rubber

450 ₽
24

3C8-61321-1 Bolt Lower Mount Rubber

Bolt Lower Mount Rubber

1 090 ₽
25

353-61334-0 Washer

Washer

860 ₽
26

3C7-61338-0 Damper Rubber

Damper Rubber

960 ₽
27

930403-1200 Nylon Nut

Nylon Nut

500 ₽
29

3C8Q61342-0 Mount holding plate lower (amb)
Rubber Mount Cap (Lower)

Mount holding plate lower (amb)
Rubber Mount Cap (Lower)

1 840 ₽
31

3C8-62396-1 Ground Wire
L=210

Ground Wire
L=210

550 ₽
32

398-62396-1 Ground Wire
L=130

Ground Wire
L=130

610 ₽
33

910113-5612 Bolt

Bolt

170 ₽
34

3E3-61301-1 Upper Mount Robber

Upper Mount Robber

2 330 ₽
35

353-61307-0 Bolt mount rubber upper

Bolt mount rubber upper

870 ₽
36

3E3-61333-0 Upper Damper Rubber

Upper Damper Rubber

830 ₽
37

3E3-61335-0 Upper Lock Plate

Upper Lock Plate

420 ₽
38

3C8Q61341-0 Mount holding plate upper (amb)
Rubber Mount Cap (Upper)

Mount holding plate upper (amb)
Rubber Mount Cap (Upper)

2 550 ₽
40

3C7-60218-2 Anode, Stern Bracket

Anode, Stern Bracket

1 840 ₽
41

910103-6630 Bolt

Bolt

170 ₽
42

3Z5Q62470-1 Tilt stopper (ptt type)

Tilt stopper (ptt type)

7 420 ₽
3GF-62466-1 Tilt stopper (ptt type)

Tilt stopper (ptt type)

8 190 ₽
42-1

951403-3516 New part

New part

120 ₽
42-2

369-62433-1 Grip Tilt Stopper

Grip Tilt Stopper

200 ₽
43

353-63207-0 Collar 10.2-12-12

Collar 10.2-12-12

260 ₽
44

3R0-62473-0 Spring,Tilt Stopper

Spring,Tilt Stopper

550 ₽
45

3Z5Q77150-0 Power trim & tilt assy d40/50 (amb)

Power trim & tilt assy d40/50 (amb)

235 160 ₽
3Z5-77150-1 Power trim & tilt assy d40/50 (amb)

Power trim & tilt assy d40/50 (amb)

214 710 ₽
46

3R0-77071-0 Upper,Cylinder Pin

Upper,Cylinder Pin

910 ₽
47

3R0-77075-0 Bushing

Bushing

390 ₽
48

3R0-77076-0 Bushing

Bushing

200 ₽
50

345-05122-0 New part

New part

150 ₽
51

3R0-77101-0 Lower,Cylinder Pin

Lower,Cylinder Pin

4 140 ₽
52

3C8-77076-1 New part

New part

650 ₽
53

3Z5-77103-0 Bushing

Bushing

410 ₽
54

3R0-77112-0 Washer

Washer

270 ₽
55

945103-1800 C-Ring

C-Ring

210 ₽
56

336-06973-0 Clamp Lead Wire

Clamp Lead Wire

290 ₽
57

345-06915-0 Clamp 6.5-14

Clamp 6.5-14

370 ₽
58

921503-5612 Stud Bolt

Stud Bolt

120 ₽
60

3Z5-72574-0 Trim sensor (4-wire) - short - nla
for P" Type, L=1700"

Trim sensor (4-wire) - short - nla
for P" Type, L=1700"

18 000 ₽
62

3C8-66308-0 New part
for P" Type"

New part
for P" Type"

140 ₽
65

3C7-62133-2 Bolt
L=105

Bolt
L=105

960 ₽
67

940113-1200 Washer
or 940103-1200

Washer
or 940103-1200

90 ₽
68

3C7-62139-1 Nut,P1.25

Nut,P1.25

250 ₽
69

3F3-72573-1 Extension cord trim sender
for P" Type, L=6000"

Extension cord trim sender
for P" Type, L=6000"

10 700 ₽
