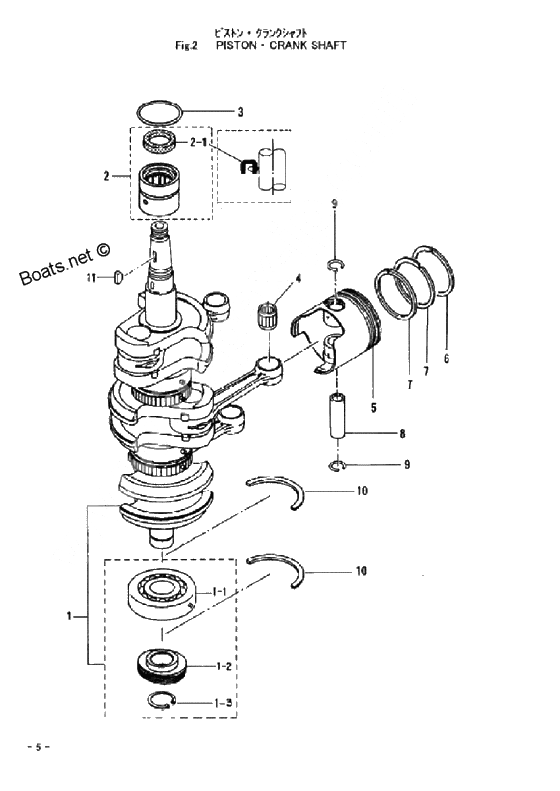

Piston & crank shaft для Tohatsu MD40B - 2006 года выпуска
-
№АртикулНазвание
-
13T5-00050-0 Crank shaft ass'yCrank shaft ass'y
-
13T5-00121-0 Oil Seal 36-46-6Oil Seal 36-46-6
-
1-13J2-00114-0 Подшипник 6305Подшипник 6305
-
1-23C8-09060-0 Drive Gear Oil PumpDrive Gear Oil Pump
-
1-3945107-2500 C-RingC-Ring
-
23T5-00113-0 Main Bearing UpperMain Bearing Upper
-
3353-00108-0 O-RingO-Ring
-
4345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
53T5-00001-0 Piston (std)Piston (std)
-
53T5-00004-0 Piston (0.5mm o/s)
OPTPiston (0.5mm o/s)
OPT -
63T5-00011-0 Поршневые кольцаПоршневые кольца
-
63T5-00014-0 Поршневые кольца
OPTПоршневые кольца
OPT -
73T5-00012-0 Piston ring 2nd(std)Piston ring 2nd(std)
-
73T5-00015-0 Piston Ring 2nd (0.5mm O/S)
OPTPiston Ring 2nd (0.5mm O/S)
OPT -
83C8-00021-0 Палец поршняПалец поршня
-
9334-00024-1 Clip, Piston PinClip, Piston Pin
-
10346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
11334-00131-0 Key MagnetoKey Magneto
