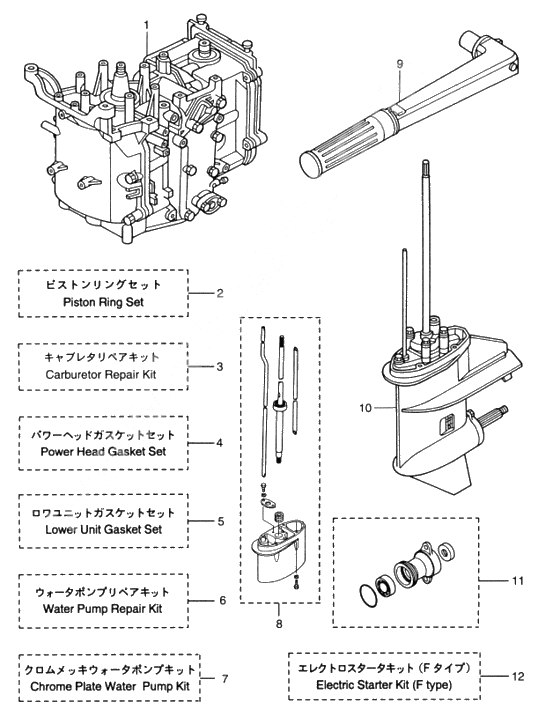

Assembly kit для Tohatsu MFS9.8A3 - 2006 года выпуска
-
№АртикулНазвание
-
13V1B87100-1 Short block (8-9.8/4-st)Short block (8-9.8/4-st)
-
3V1B87090-7 Short block (8-9.8/4-st)Short block (8-9.8/4-st)
-
23V1-87123-0 Кольца поршневыеКольца поршневые
-
23V1-00011-0 Piston Ring TOPPiston Ring TOP
-
23V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
23V1-00013-0 Piston Ring OilPiston Ring Oil
-
23V1-87124-0 Кольца поршневыеКольца поршневые
-
23V1-00014-0 Piston Ring 0.5mm O/SPiston Ring 0.5mm O/S
-
23V1-00015-0 Piston Ring 2nd (0.5mm O/S)Piston Ring 2nd (0.5mm O/S)
-
23V1-00016-0 Piston Ring Oil 0.5mm O/SPiston Ring Oil 0.5mm O/S
-
33V1-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
33V1-03116-0 O-Ring
FIG.5-1-5O-Ring
FIG.5-1-5 -
33V1-03147-1 Float Valve
FIG.5-1-8Float Valve
FIG.5-1-8 -
33C8-03126-0 Float Arm Pin
FIG. 5-1-9Float Arm Pin
FIG. 5-1-9 -
33C8-03125-0 Float
FIG. 5-1-10Float
FIG. 5-1-10 -
3921703-0406 Stud Bolt
FIG. 5-1-11Stud Bolt
FIG. 5-1-11 -
33V1-03121-0 Gasket,float Chamber
FIG. 5-1-15Gasket,float Chamber
FIG. 5-1-15 -
3922503-6412 Stud Bolt
FIG. 5-1-16Stud Bolt
FIG. 5-1-16 -
33V1-03193-0 O-Ring
FIG. 5-1-18O-Ring
FIG. 5-1-18 -
33V1-03182-0 Gasket,Cabretor Cover
FIG. 5-1-20Gasket,Cabretor Cover
FIG. 5-1-20 -
3922503-6410 Stud Bolt
FIG. 5-1-21Stud Bolt
FIG. 5-1-21 -
43V1-87121-0 Power Head Gasket SetPower Head Gasket Set
-
43V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
43V1-01024-0 Gasket HeadcoverGasket Headcover
-
43R0-07422-0 New part
FILLER CAPNew part
FILLER CAP -
43V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
4346-01032-0 New partNew part
-
43R3-01144-0 O-RingO-Ring
-
43V1-01303-0 Gasket engine baseGasket engine base
-
43V1-00121-0 Oil Seal 30-45-8
CRANKSHAFTOil Seal 30-45-8
CRANKSHAFT -
43V1-02104-0 O-RingO-Ring
-
43V1-02011-0 Caburetor GasketCaburetor Gasket
-
43V1-02012-0 O-Ring
CARBURETORO-Ring
CARBURETOR -
43H6-07422-0 New part
FUEL PUMPNew part
FUEL PUMP -
43V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
43H8-07025-0 Oil Seal,18-35-8
CAMSHAFTOil Seal,18-35-8
CAMSHAFT -
43B2-01215-0 Oil seal 12-28-5
DRIVE SHAFTOil seal 12-28-5
DRIVE SHAFT -
53B2-87321-3 Lower unit gasket kit 8/9.8bLower unit gasket kit 8/9.8b
-
3B2-87321-4 Lower unit gasket kit 8/9.8bLower unit gasket kit 8/9.8b
-
5332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
5345-65015-0 O-Ring
PROPELLER SHAFTO-Ring
PROPELLER SHAFT -
5369-60111-0 Oil Seal
PROPELLER SHAFTOil Seal
PROPELLER SHAFT -
53B2-65018-1 GasketGasket
-
3B2-65018-2 GasketGasket
-
53B2-65029-1 GasketGasket
-
3B2-65029-2 GasketGasket
-
53B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
5309-60111-0 Oil Seal 12-24-8
PUMP CASE (LOWER)Oil Seal 12-24-8
PUMP CASE (LOWER) -
5369-66021-1 O?????2.5-4.9
CAM ROD BUSHINGO?????2.5-4.9
CAM ROD BUSHING -
5332-66032-0 O?????2.4-15.4
CAM ROD BUSHINGO?????2.4-15.4
CAM ROD BUSHING -
53B2-61012-1 Gasket driveshaft housing
DO NOT USE FOR 4-STROKE ENGINEGasket driveshaft housing
DO NOT USE FOR 4-STROKE ENGINE -
3B2-61012-2 Gasket driveshaft housingGasket driveshaft housing
-
53B2-02302-0 Exhaust Cover Inner
DO NOT USE FOR 4-STROKE ENGINEExhaust Cover Inner
DO NOT USE FOR 4-STROKE ENGINE -
63B2-87322-1 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
63B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
63B2-65022-0 New partNew part
-
63B2-65011-0 New partNew part
-
63B2-65018-1 GasketGasket
-
3B2-65018-2 GasketGasket
-
63B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
63B2-65029-1 GasketGasket
-
3B2-65029-2 GasketGasket
-
63B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
6916113-0650 Bolt
OR 910103-0650Bolt
OR 910103-0650 -
6940113-0600 Washer
OR 910103-0600Washer
OR 910103-0600 -
73B2-65231-1 Water pump repair kit chrome 8 hpWater pump repair kit chrome 8 hp
-
3B2-65231-2 Water pump repair kit chrome 8 hpWater pump repair kit chrome 8 hp
-
73B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
73B2-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
73B2-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
73B2-65018-1 GasketGasket
-
3B2-65018-2 GasketGasket
-
73B2-65029-1 GasketGasket
-
3B2-65029-2 GasketGasket
-
83V1Q87314-3 Extension housing kit ul (amb)
FOR TRANSOM ULExtension housing kit ul (amb)
FOR TRANSOM UL -
3V1Q87314-4 Extension housing kit ul (amb)Extension housing kit ul (amb)
-
83B2Q61110-2 Extension housing ul (amb)Extension housing ul (amb)
-
83V1-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
83B2-60003-1 Bushing Drive Shaft HousingBushing Drive Shaft Housing
-
83V1-64332-0 Stopoer,BushingStopoer,Bushing
-
8910113-5612 BoltBolt
-
83V1-64309-1 Drive Shaft ULDrive Shaft UL
-
83V1-66014-0 Cam Rod(UL)Cam Rod(UL)
-
83V1-65120-0 Труба воднаяТруба водная
-
93V1Q63003-0 Handle assy (amb)
FOR MF & EFHandle assy (amb)
FOR MF & EF -
3V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
103V1Q87301-2 Lower unit assy s (amb)
FOR TRANSOM SLower unit assy s (amb)
FOR TRANSOM S -
3V1Q87301-5 Lower unit assy s (amb)Lower unit assy s (amb)
-
103V1Q87302-3 Lower unit assy l (amb)
FOR TRANSOM LLower unit assy l (amb)
FOR TRANSOM L -
3V1Q87302-5 Lower unit assy l (amb)Lower unit assy l (amb)
-
113B2Q60100-0 Propeller shaft housing assy.Propeller shaft housing assy.
-
3B2Q60100-1 Propeller shaft housing assy.Propeller shaft housing assy.
-
123V2-76300-0 Electric starter kit
#031096XD~Electric starter kit
#031096XD~ -
123AA-06091-0 Flywheel Cap
WITH RING GEAR FIG.8-1Flywheel Cap
WITH RING GEAR FIG.8-1 -
123AA-06023-0 Alternator Ass'y
FIG. 8-6Alternator Ass'y
FIG. 8-6 -
12910103-5630 Bolt
FIG. 8-7Bolt
FIG. 8-7 -
123V1-06900-0 Electric bracket
FIG. 8-25Electric bracket
FIG. 8-25 -
123T5-06920-0 Mount Rubber
FIG.8-26Mount Rubber
FIG.8-26 -
123R0-66308-0 Washer
FIG. 8-27 OR 3C8-66308-0Washer
FIG. 8-27 OR 3C8-66308-0 -
123B7-06305-0 Mount Rubber, 9-16-4.3
FIG.8-28Mount Rubber, 9-16-4.3
FIG.8-28 -
123A0-76079-0 Collar, 6.2-9-7.5
FIG.8-29Collar, 6.2-9-7.5
FIG.8-29 -
12910113-0620 Bolt
FIG. 8-30Bolt
FIG. 8-30 -
123AA-76010-0 Starter Motor Ass'y
FIG.9-1Starter Motor Ass'y
FIG.9-1 -
12916114-0830 Bolt
FIG.9-2Bolt
FIG.9-2 -
12940113-0800 Washer
FIG.9-3 OR 940103-0800Washer
FIG.9-3 OR 940103-0800 -
123V1-76011-0 Starter motor bracket
FIG.9-4Starter motor bracket
FIG.9-4 -
123H8-76040-0 Starter Solenoid
FIG.9-5Starter Solenoid
FIG.9-5 -
123AA-76065-0 Rectifire Complete
FIG.9-6Rectifire Complete
FIG.9-6 -
12910103-5616 Bolt
FIG.9-7Bolt
FIG.9-7 -
123V1-76120-1 Battery Cord
FIG.9-8Battery Cord
FIG.9-8 -
12910103-5610 Bolt
FIG.9-9Bolt
FIG.9-9 -
123AA-76145-0 Terminal Cap
FIG.9-10Terminal Cap
FIG.9-10 -
123B2-76147-1 STARTER CORD
FIG.9-11 L=200STARTER CORD
FIG.9-11 L=200 -
123V1-76148-0 Spiral Tube Protector
FIG. 9-12 STARTER CABLE Ø10-100Spiral Tube Protector
FIG. 9-12 STARTER CABLE Ø10-100 -
123Y0-76145-0 Terminal Cap
FIG.9-13Terminal Cap
FIG.9-13 -
123Y1-76145-0 Terminal Cap
FIG.9-14Terminal Cap
FIG.9-14 -
123V1-76066-0 Fuse Wire
FIG.9-15 L=185Fuse Wire
FIG.9-15 L=185 -
123R0-76064-0 Stay,Fuse Holder
FIG.9-16Stay,Fuse Holder
FIG.9-16 -
123AA-06281-0 Hplder Cable Terminal
FIG.9-17Hplder Cable Terminal
FIG.9-17 -
123V1-06284-0 Stay,terminal holder
FIG.9-18Stay,terminal holder
FIG.9-18 -
12174-35012-0 Collar 6-8-6
FIG.9-19Collar 6-8-6
FIG.9-19 -
12910113-5612 Bolt
FIG.9-20Bolt
FIG.9-20 -
12910113-5616 Bolt
FIG.9-21Bolt
FIG.9-21 -
123AA-06902-0 Cover Terminal Holder
FIG.9-22Cover Terminal Holder
FIG.9-22 -
12398-76080-0 Neutral Switch Ass'y
FIG.9-33Neutral Switch Ass'y
FIG.9-33 -
12398-76083-0 Actuator Neutral Switch
FIG.9-34Actuator Neutral Switch
FIG.9-34 -
123AA-76026-0 Main Switch
FIG.9-35 OR 3B2-76026-1Main Switch
FIG.9-35 OR 3B2-76026-1
