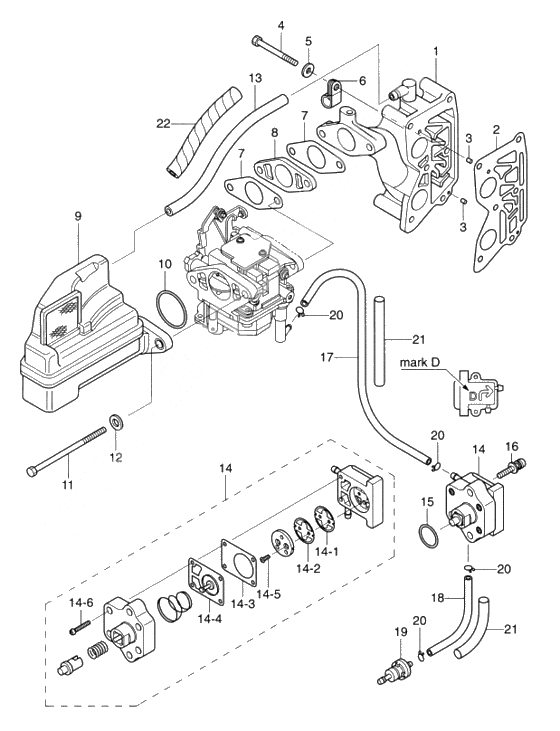

Intake manifold & fuel pump для Tohatsu MFS9.8A3 - 2006 года выпуска
-
№АртикулНазвание
-
13V1-02010-1 Всасывающий коллектор
#010322XD~Всасывающий коллектор
#010322XD~ -
23V1-02104-0 O-RingO-Ring
-
3951403-0310 New partNew part
-
4916114-0653 BoltBolt
-
5940113-0600 Washer
OR 940103-0600Washer
OR 940103-0600 -
6345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
73V1-02011-0 Caburetor GasketCaburetor Gasket
-
83V1-03952-0 InsukatorInsukator
-
93V1-02409-0 Air SilencerAir Silencer
-
103V1-02012-0 O-RingO-Ring
-
11916113-0695 Bolt
CARBURETORBolt
CARBURETOR -
3R0-03215-0 BoltBolt
-
12940113-0600 WasherWasher
-
1398AB-7-1000 Rubber pipeRubber pipe
-
143H6-04000-4 Fuel pump 4/5/6/8/9.8 4-str only
MARK D (MARK C #002966XD~)Fuel pump 4/5/6/8/9.8 4-str only
MARK D (MARK C #002966XD~) -
3H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str onlyFuel pump 4/5/6/8/9.8 4-str only
-
14-13H6-04014-0 Check Valve
#002966XD~ BLACKCheck Valve
#002966XD~ BLACK -
14-23H6-04044-0 Check Valve
WHITECheck Valve
WHITE -
14-33H6-04028-0 O-RingO-Ring
-
14-43H6-04005-0 DiaphragmDiaphragm
-
14-5921603-0308 Stud BoltStud Bolt
-
14-6922503-6418 Stud BoltStud Bolt
-
153H6-07422-0 New partNew part
-
16921513-5625 ScrewScrew
-
921503-5625 ScrewScrew
-
1798AB-5-0270 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
1898AB-5-0150 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
19369-02230-0 Фильтр топливныйФильтр топливный
-
20338-02215-0 ClipClip
-
213V2-06157-0 Protector
Ø 12-120Protector
Ø 12-120 -
223V1-76148-0 Spiral Tube Protector
Ø10-100 FOR EPSpiral Tube Protector
Ø10-100 FOR EP
