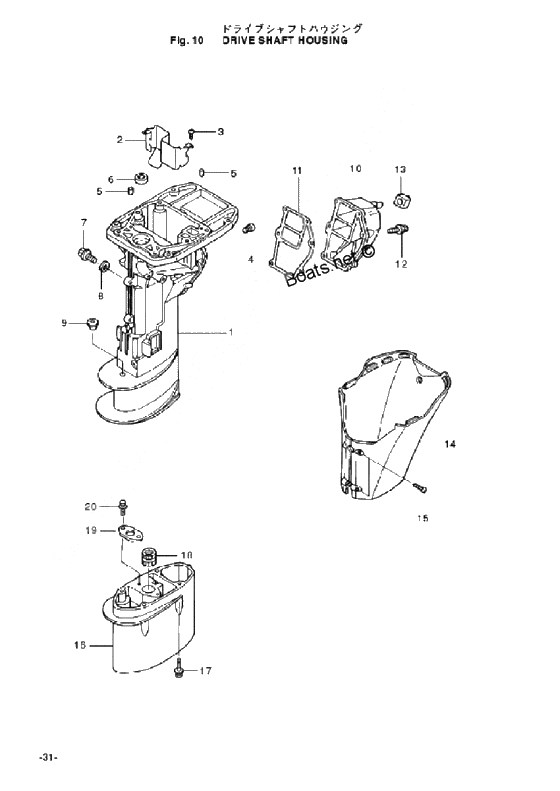

Drive shaft housing для Tohatsu MFS8A3 - 2007 года выпуска
-
№АртикулНазвание
-
13V1Q61020-0 Drive shaft housing s (amb)
ShortDrive shaft housing s (amb)
Short -
13V1Q61030-0 Drive shaft housing l (amb)
LongDrive shaft housing l (amb)
Long -
3V1Q61030-1 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
23V1-07440-0 Guide Plate
or 3V1-07440-0Guide Plate
or 3V1-07440-0 -
3921503-6510 Stud BoltStud Bolt
-
43H6-07257-0 Exhaust PlugExhaust Plug
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
63B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
73R3-07405-1 Bolt, DrainBolt, Drain
-
83R3-07406-0 WasherWasher
-
9369-66043-1 Grommet Cam RodGrommet Cam Rod
-
103V1-61208-0 Cover,Idol PortCover,Idol Port
-
113V1-61220-0 Gasket,Idle PortGasket,Idle Port
-
129101E3-5620 Bolt & washer
or 910113-5620Bolt & washer
or 910113-5620 -
133V1-61212-0 Grommet,Idle PortGrommet,Idle Port
-
143V1Q61225-0 Apron (amb)Apron (amb)
-
153F3-02423-0 Screw 5-30Screw 5-30
-
163B2Q61110-2 Extension housing ul (amb)
for Transom UL""Extension housing ul (amb)
for Transom UL"" -
173V2-60001-0 Bolt 6-35 precoated
for Transom UL""Bolt 6-35 precoated
for Transom UL"" -
183B2-60003-1 Bushing Drive Shaft Housing
for Transom UL""Bushing Drive Shaft Housing
for Transom UL"" -
193V1-64332-0 Stopoer,Bushing
for Transom UL""Stopoer,Bushing
for Transom UL"" -
209101E3-5612 Bolt & washer
for Transom UL", or 910113-5612"Bolt & washer
for Transom UL", or 910113-5612"
