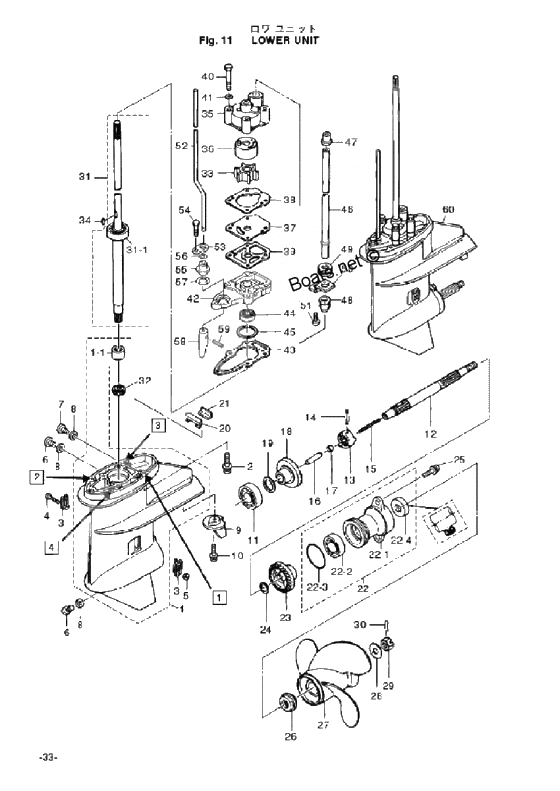

Lower unit для Tohatsu MFS8A3 - 2007 года выпуска
-
№АртикулНазвание
-
13AAQ60000-0 Gear case assy (amb)
# 010322XD-Gear case assy (amb)
# 010322XD- -
1-13V1-60211-0 Roller BearingRoller Bearing
-
23V1-60001-1 Bolt 6-35 precoated
or 3V2-60001-0Bolt 6-35 precoated
or 3V2-60001-0 -
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
33AA-60206-0 Water Strainer
# 010322XD-, W = 17, Mark A""Water Strainer
# 010322XD-, W = 17, Mark A"" -
4921503-0430 Stud BoltStud Bolt
-
5930403-0400 Nylon NutNylon Nut
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
8332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
93V1-60217-0 Trim TabTrim Tab
-
119601-0-6204 Ball BearingBall Bearing
-
123V1-64211-0 Propeller ShaftPropeller Shaft
-
133B2-64215-0 ClutchClutch
-
14301-64217-0 Pin ClutchPin Clutch
-
153V1-64221-0 Spring,ClutchSpring,Clutch
-
16369-64223-0 Push Rod ClutchPush Rod Clutch
-
173B2-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
183B2-64010-0 Bevel Gear ABevel Gear A
-
19369-64014-0 Shim 21-28-0.1Shim 21-28-0.1
-
19369-64015-0 Shim 21-28-0.15Shim 21-28-0.15
-
203V1-60041-0 Water Seal RubberWater Seal Rubber
-
213V1-60042-0 Water Seal PlateWater Seal Plate
-
223B2Q60100-0 Propeller shaft housing assy.Propeller shaft housing assy.
-
3B2Q60100-1 Propeller shaft housing assy.Propeller shaft housing assy.
-
22-13B2Q60101-0 Housing Propeller ShaftHousing Propeller Shaft
-
3B2Q60101-1 Housing Propeller ShaftHousing Propeller Shaft
-
22-29601-0-6004 Ball BearingBall Bearing
-
22-3345-65015-0 O-RingO-Ring
-
22-4369-60111-0 Oil SealOil Seal
-
233B2-64030-0 Bevel Gear CBevel Gear C
-
24369-64032-0 WasherWasher
-
259101E3-5620 Bolt & washer
or 910113-5620Bolt & washer
or 910113-5620 -
263B2-64230-1 Thrust holder ass'y
# 044907XC-Thrust holder ass'y
# 044907XC- -
273V1B64514-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
(USA: EFTL" and "EPTL")"Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
(USA: EFTL" and "EPTL")" -
3B2B64512-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) blackProp 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
-
273B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
9.8: L", "UL", (USA: 9.8 "S") 8: "S", "L", "UL""Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
9.8: L", "UL", (USA: 9.8 "S") 8: "S", "L", "UL"" -
273B2B64517-1 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8: S""Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8: S"" -
3B2B64517-0 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) blackProp 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
-
273V1B64510-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
(USA: 9.8 UL")"Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
(USA: 9.8 UL")" -
3B2B64511-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) blackProp 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
-
273B2B64514-1 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
(USA: 9.8 L") (USA: 8 "S" and "L")"Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
(USA: 9.8 L") (USA: 8 "S" and "L")" -
3B2B64514-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) blackProp 8 & 9.8 hp (8.9 dia x 7 pitch) black
-
28369-64124-0 WasherWasher
-
29369-64121-0 Nut PropellerNut Propeller
-
30951503-0318 New partNew part
-
313V1-64306-1 Drive Shaft S
for Transom S""Drive Shaft S
for Transom S"" -
313V1-64307-1 Drive shaft l
for Transom L""Drive shaft l
for Transom L"" -
313V1-64309-1 Drive Shaft UL
for Transom UL""Drive Shaft UL
for Transom UL"" -
313B2-64301-1 Вал торсионный S""
for Transom S""Вал торсионный S""
for Transom S"" -
313B2-64302-1 Drive shaft l
for Transom L""Drive shaft l
for Transom L"" -
313B2-64303-1 Drive Shaft UL
for Transom UL""Drive Shaft UL
for Transom UL"" -
31-19601-0-6301 Ball BearingBall Bearing
-
323B2-64020-0 Bevel Gear BBevel Gear B
-
333B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
343B2-65022-0 New partNew part
-
353B2-65016-0 Water Pump CaseWater Pump Case
-
363B2-65011-0 New partNew part
-
373B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
383B2-65018-1 GasketGasket
-
3B2-65018-2 GasketGasket
-
393B2-65029-1 GasketGasket
-
3B2-65029-2 GasketGasket
-
409161E3-0650 Bolt
or 916113-0650Bolt
or 916113-0650 -
423V1-65017-0 Pump Case Lower
# 017458XD-Pump Case Lower
# 017458XD- -
433B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
44309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
453B2-64081-0 Gap liner kit
t=0.1Gap liner kit
t=0.1 -
3B2-64023-0 Gap liner kitGap liner kit
-
453B2-64082-0 Gap liner kit
t=0.15Gap liner kit
t=0.15 -
3B2-64023-0 Gap liner kitGap liner kit
-
453B2-64083-0 Gap liner kit
t=0.3Gap liner kit
t=0.3 -
3B2-64023-0 Gap liner kitGap liner kit
-
463V1-65100-0 Труба водная
for Transom S""Труба водная
for Transom S"" -
463V1-65110-0 Труба водная
for Transom L""Труба водная
for Transom L"" -
463V1-65120-0 Труба водная
for Transom UL""Труба водная
for Transom UL"" -
473V1-65206-0 Seal Upper,water PipeSeal Upper,water Pipe
-
48331-65014-0 Lock ring coolibg water pipeLock ring coolibg water pipe
-
493V1-65204-0 Rubber Mount,13-2.5Rubber Mount,13-2.5
-
503V1-65203-0 Lock PlateLock Plate
-
523V1-66012-0 Cam Rod (S)
for Transom S""Cam Rod (S)
for Transom S"" -
523V1-66013-0 Cam rod (l)
for Transom L""Cam rod (l)
for Transom L"" -
523V1-66014-0 Cam Rod(UL)
for Transom UL""Cam Rod(UL)
for Transom UL"" -
53369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
-
549101E3-5625 Bolt & washer
or 910113-5625Bolt & washer
or 910113-5625 -
55369-66031-0 Bushing Cam RodBushing Cam Rod
-
56369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
57332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
58369-66011-0 Clutch CamClutch Cam
-
59951407-0310 Spring WasherSpring Washer
-
603V1Q87301-3 Lower unit assy s (amb)
for Transom S""Lower unit assy s (amb)
for Transom S"" -
3V1Q87301-5 Lower unit assy s (amb)Lower unit assy s (amb)
-
603V1Q87302-3 Lower unit assy l (amb)
for Transom L""Lower unit assy l (amb)
for Transom L"" -
3V1Q87302-5 Lower unit assy l (amb)Lower unit assy l (amb)
