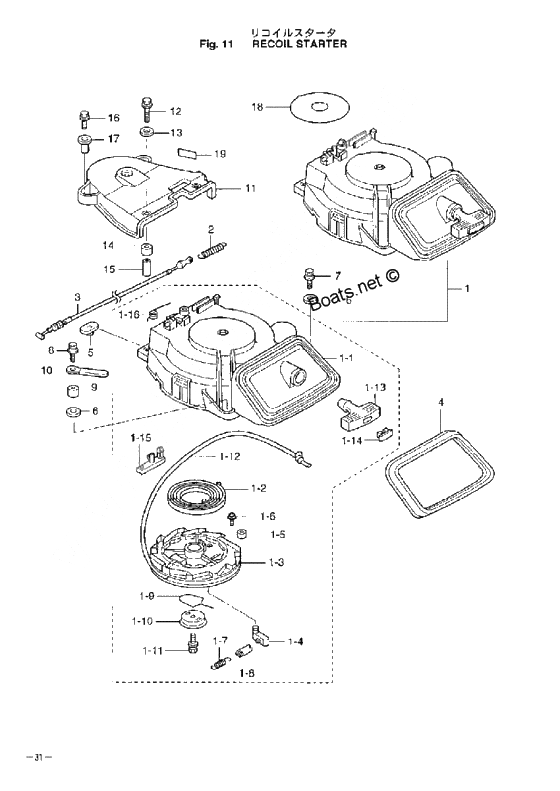

Recoil starter для Tohatsu MFS15C - 2009 года выпуска
-
№АртикулНазвание
-
13BJ-05090-0 Recoil starterRecoil starter
-
1-13BJ-05105-0 Starter CaseStarter Case
-
1-103R3-05006-0 Friction PlateFriction Plate
-
1-113R3-05138-0 Bolt,Starter ShaftBolt,Starter Shaft
-
1-123R3-05013-0 Starter Rope
тИЕ 5 - 1800Starter Rope
тИЕ 5 - 1800 -
1-133BJ-05019-0 Starter HandleStarter Handle
-
1-143R3-05131-0 Cap,Starter HandleCap,Starter Handle
-
1-153R3-05252-0 Starter LockStarter Lock
-
1-163R3-05216-0 Spring WasherSpring Washer
-
1-23H8-05004-0 Spring WasherSpring Washer
-
1-33BJ-05104-0 ReelReel
-
1-43BJ-05003-0 RatchetRatchet
-
1-53BJ-05135-0 BushingBushing
-
1-63BJ-05913-0 Tapping ScrewTapping Screw
-
1-73R3-05012-0 Return SpringReturn Spring
-
1-83H8-05123-1 Return SpringReturn Spring
-
1-93R3-05007-0 Spring WasherSpring Washer
-
23AC-05258-0 Cam spring starter lockCam spring starter lock
-
33BJ-05207-0 Starter lock cableStarter lock cable
-
43BJ-67503-0 Starter sealStarter seal
-
3BJ-67503-1 Starter sealStarter seal
-
53F3-76042-1 NutNut
-
63C8-66308-0 New partNew part
-
93H6-63619-1 Collar, BracketCollar, Bracket
-
10309-06972-0 Clamp,6.5-47.5P
Starter Lock CableClamp,6.5-47.5P
Starter Lock Cable -
113R3-06308-0 Belt VoverBelt Vover
-
129101E3-0630 Bolt
or 910113-0630Bolt
or 910113-0630 -
143R3-06302-0 Mount RubberMount Rubber
-
153R3-06303-0 Collar 6.2-9-21Collar 6.2-9-21
-
173BJ-06283-0 Collar 6.1-14-8.9Collar 6.1-14-8.9
-
183R0-72181-0 Caution Label BCaution Label B
-
193H6-72026-0 Label, Spark PlugLabel, Spark Plug
