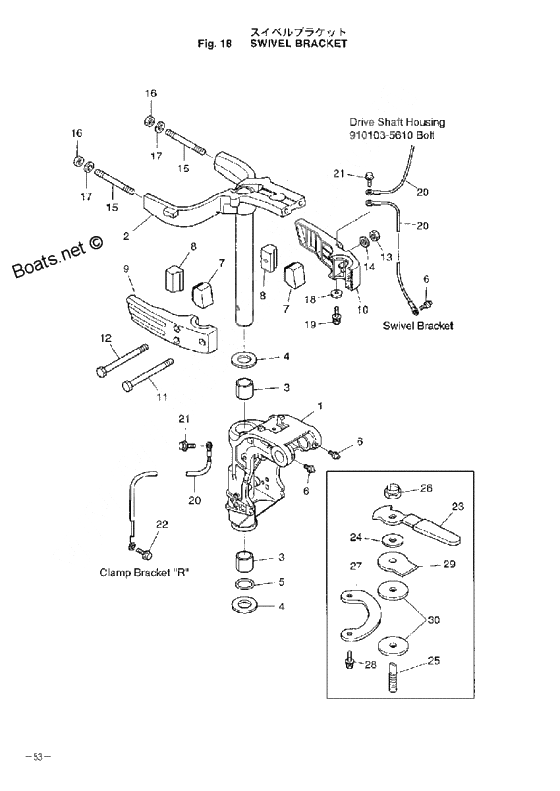

Swivel braket для Tohatsu MFS15C - 2009 года выпуска
-
№АртикулНазвание
-
13V6Q62310-1 Swivel bracketSwivel bracket
-
3V6Q62310-0 Swivel bracketSwivel bracket
-
23BKQ62010-0 Steering shaft assySteering shaft assy
-
33R3-62417-0 BushingBushing
-
43H8-62423-1 Surust PlateSurust Plate
-
53H8-62415-0 O-RingO-Ring
-
6344-67177-0 МасленкаМасленка
-
73BJ-61336-0 Damper (lower)Damper (lower)
-
83BJ-61302-0 Rubber mount (lower)Rubber mount (lower)
-
93BJQ61401-0 Mount bracket right (starboard)
StarboardMount bracket right (starboard)
Starboard -
103BJQ61402-0 Mount bracket left (port)
PortMount bracket left (port)
Port -
119161E3-0855 Bolt
916113-0855Bolt
916113-0855 -
129161E3-0885 Bolt
916113-0885Bolt
916113-0885 -
143P0-66233-0 New partNew part
-
153R3-61313-1 Stud BoltStud Bolt
-
16930403-1000 Nylon NutNylon Nut
-
179401E3-1000 Washer
or 940113-1000Washer
or 940113-1000 -
18338-60218-2 New partNew part
-
20398-62396-1 Ground Wire
L=130Ground Wire
L=130 -
233AA-62441-0 Handle,Co-Pilot
for MF &EFHandle,Co-Pilot
for MF &EF -
243R3-62443-0 WasherWasher
-
253R3-62445-0 BoltBolt
-
263V5-62442-0 Nylon Nut(2T)M8 P1.25
for MF & EFNylon Nut(2T)M8 P1.25
for MF & EF -
273R3-62447-0 Plate, Co PilotPlate, Co Pilot
-
289101E3-5616 Bolt & washer
or 910113-5616Bolt & washer
or 910113-5616 -
293R3-62448-1 Washer, Co PilotWasher, Co Pilot
-
303R3-62449-0 Disk, Co Pilot
for MF & EFDisk, Co Pilot
for MF & EF
