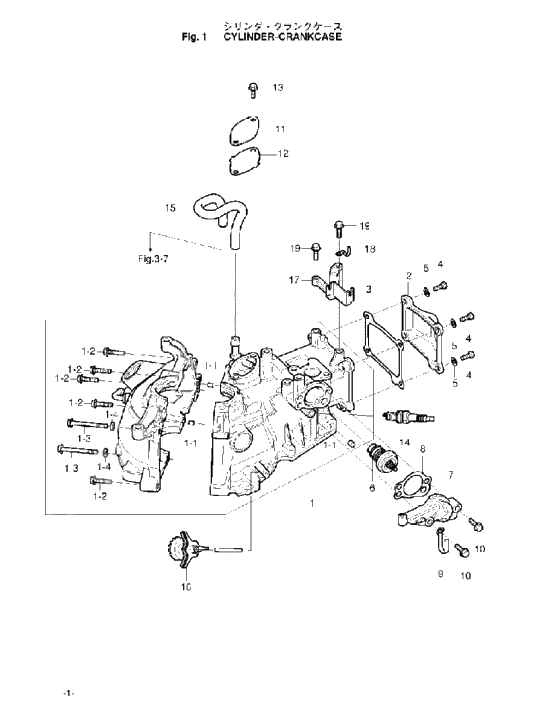

Cylinder-crankcase для Tohatsu MFS2B - 2009 года выпуска
-
№АртикулНазвание
-
13GTB01100-1 Cylinder crankcase
3.5B/2.5B/2B- with NippleCylinder crankcase
3.5B/2.5B/2B- with Nipple -
1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23ABB01021-0 Cylinder head coverCylinder head cover
-
39161F9-0675 9161F9-06759161F9-0675
-
33AB-01024-1 3AB-01024-13AB-01024-1
-
4910121-0616 Bolt
or 910103-0616Bolt
or 910103-0616 -
53C8-66308-0 New partNew part
-
63H6-01030-0 Thermostat
Mark: 5B or 52BThermostat
Mark: 5B or 52B -
73ABB01031-0 Thermostat capThermostat cap
-
83AB-01032-0 Thermostat cap gasketThermostat cap gasket
-
9398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
113AB-07431-0 Breather chamber coverBreather chamber cover
-
123AB-07432-0 Breather chamber cover gasketBreather chamber cover gasket
-
139101E3-5616 Bolt & washer
or 910113-5616Bolt & washer
or 910113-5616 -
153AB-07435-0 Breather hoseBreather hose
-
163AB-07640-0 SlingerSlinger
-
173ABB63508-0 3ABB63508-03ABB63508-0
-
199101E3-5625 Bolt & washer
or 910113-5625Bolt & washer
or 910113-5625
