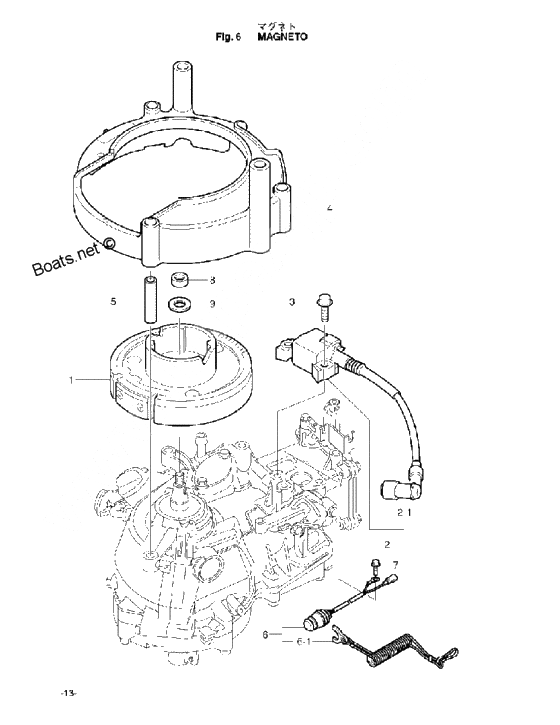

Magneto для Tohatsu MFS2B - 2009 года выпуска
-
№АртикулНазвание
-
13GT-06001-0 Flywheel cup
3.5B/2.5B/2B- Mark: MF5494Flywheel cup
3.5B/2.5B/2B- Mark: MF5494 -
13AB-06001-0 Flywheel cup f2.5a/3.5a
3.5A/2.5A/2AFlywheel cup f2.5a/3.5a
3.5A/2.5A/2A -
1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
23GT-06041-0 Igniter
3.5B.2.5B/2B - Mark: IU3123Igniter
3.5B.2.5B/2B - Mark: IU3123 -
23AB-06041-0 Ignition Coil
3.5A/2.5A/2A (2A -#016969XG (Do. Only))Ignition Coil
3.5A/2.5A/2A (2A -#016969XG (Do. Only)) -
2-13H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
-
43AB-06300-1 Flywheel coverFlywheel cover
-
3AB-06300-0 Flywheel coverFlywheel cover
-
53AB-06303-1 Collar, 6.2 - 9 - 35Collar, 6.2 - 9 - 35
-
3AB-06303-0 Collar, 6.2 - 9 - 35Collar, 6.2 - 9 - 35
-
63AS-06870-0 Stop switch assy
3.5B/2.5B/2B-Stop switch assy
3.5B/2.5B/2B- -
3GR-06870-0 Stop switch assyStop switch assy
-
63D5-06870-0 Stop switch ass'y f
3.5A/2.5A/2AStop switch ass'y f
3.5A/2.5A/2A -
8309-00132-0 Nut, MagnetoNut, Magneto
-
9940121-1000 WasherWasher
