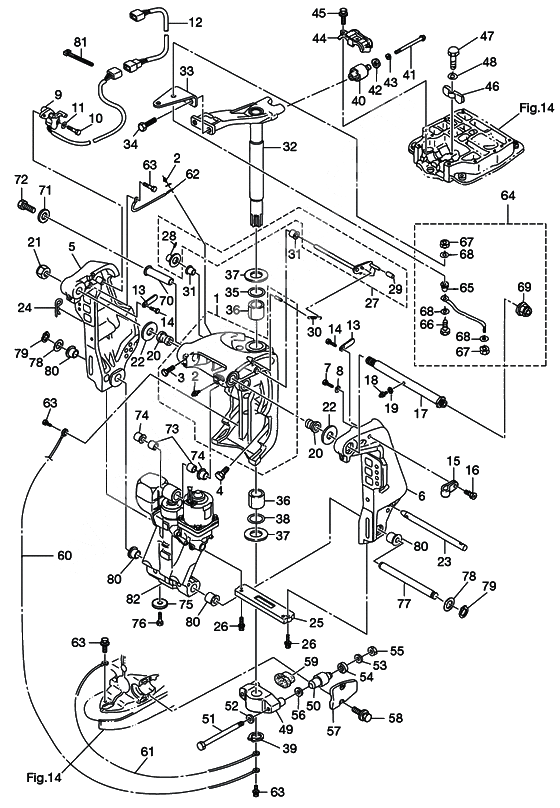

Bracket для Tohatsu MD90C2 - 2010 года выпуска
-
№АртикулНазвание
-
13E0Q62313-2 Swivel bracket assySwivel bracket assy
-
3E0Q62313-3 Swivel bracket assySwivel bracket assy
-
2344-67177-1 Grease NippleGrease Nipple
-
39101F1-0610 BoltBolt
-
910103-0610 BoltBolt
-
43B7-77085-1 Bolt 12-20Bolt 12-20
-
53E0Q62112-0 Stern bracket r (amb)
STERN BRACKET (RIGHT) / STARBOARDStern bracket r (amb)
STERN BRACKET (RIGHT) / STARBOARD -
63E0Q62113-1 Stern bracket l (amb)
STERN BRACKET (LEFT) / PORTStern bracket l (amb)
STERN BRACKET (LEFT) / PORT -
79102E3-1020 BoltBolt
-
910203-1020 BoltBolt
-
89402E3-1000 WasherWasher
-
93T1-72574-0 Trim sender (2-wire)Trim sender (2-wire)
-
109101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
113R0-66308-0 WasherWasher
-
123T1-72573-0 Extension cord trim (2-wire) 6mExtension cord trim (2-wire) 6m
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
149101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
15345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
169215E3-5612 ScrewScrew
-
921503-5612 ScrewScrew
-
173E0-62191-1 Bracket Bolt Ass'y
BRACKET BOLTBracket Bolt Ass'y
BRACKET BOLT -
18344-67177-1 Grease NippleGrease Nipple
-
19940103-0600 WasherWasher
-
203E0-62126-0 Bushing Bracket BoltBushing Bracket Bolt
-
21346-62124-1 Bracket nutBracket nut
-
223FW-62116-0 Washer 25.7-50-1Washer 25.7-50-1
-
233E0-62121-1 Thrust RodThrust Rod
-
243B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
253C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
26910103-6630 BoltBolt
-
273Y9-62431-1 Tilt stopper assyTilt stopper assy
-
28951403-3516 New partNew part
-
293Y9-62433-0 Tilt stopper gripTilt stopper grip
-
303E0-62473-1 Spring Tilt StopperSpring Tilt Stopper
-
31353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
323FWQ62010-0 Steering shaft assySteering shaft assy
-
333FW-83830-0 Steering Hook PlateSteering Hook Plate
-
34910103-1030 BoltBolt
-
353B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
363B7-62417-0 BushingBushing
-
373FW-62423-0 Thrust PlateThrust Plate
-
383B7-62415-0 O-RingO-Ring
-
39945103-3200 C-RingC-Ring
-
403B7-61301-0 Upper Mount RobberUpper Mount Robber
-
413B7-61307-2 Bolt upper mountBolt upper mount
-
3B7-61307-1 Bolt upper mountBolt upper mount
-
423C7-61338-0 Damper RubberDamper Rubber
-
433B7-61335-0 WasherWasher
-
443B7-61341-1 Cap Upper Mount Rubber
RUBBER MOUNT CAP (UPPER)Cap Upper Mount Rubber
RUBBER MOUNT CAP (UPPER) -
3B7S61341-1 Cap Upper Mount RubberCap Upper Mount Rubber
-
459101E3-5835 Bolt & washerBolt & washer
-
463B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
479101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
483C8-66308-0 New partNew part
-
493C7Q61411-2 Mount bracketMount bracket
-
50353-61302-1 Lower Mount RubberLower Mount Rubber
-
51353-61321-3 BoltBolt
-
52353-61315-1 WasherWasher
-
53353-61334-0 WasherWasher
-
543C7-61338-0 Damper RubberDamper Rubber
-
553B7-61324-0 NutNut
-
569402E3-1200 WasherWasher
-
573B7Q61342-0 Cap lower mount rubber (amb)
RUBBER MOUNT CAP (LOWER)Cap lower mount rubber (amb)
RUBBER MOUNT CAP (LOWER) -
583N4-61343-0 Bolt,8-25Bolt,8-25
-
593C7-61336-0 Damper RubberDamper Rubber
-
603C8-62396-1 Ground WireGround Wire
-
613A3-62396-1 New partNew part
-
62398-62396-1 Ground WireGround Wire
-
63910103-5612 BoltBolt
-
643FW-84905-0 Drag link assyDrag link assy
-
653FW-84914-0 SpacerSpacer
-
663E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
67353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
68353-84916-0 WasherWasher
-
693F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
703C8-77071-1 Cylinder pin upperCylinder pin upper
-
3C8-77071-0 Cylinder pin upperCylinder pin upper
-
71345-05122-1 Washer rachetWasher rachet
-
729101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
733C8-77075-0 New partNew part
-
743E0-77076-0 BushingBushing
-
75369-60218-1 New partNew part
-
76910103-5616 BoltBolt
-
773E0-77101-1 Cylinder pin lowerCylinder pin lower
-
78346-62412-1 WasherWasher
-
79945103-2200 ClipClip
-
803E0-77103-0 BushingBushing
-
813T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
823T9-77150-1 Power trim & tilt assy (amb) d70/90Power trim & tilt assy (amb) d70/90
-
3T9Q77150-0 Power trim & tilt assy (amb) d70/90Power trim & tilt assy (amb) d70/90
