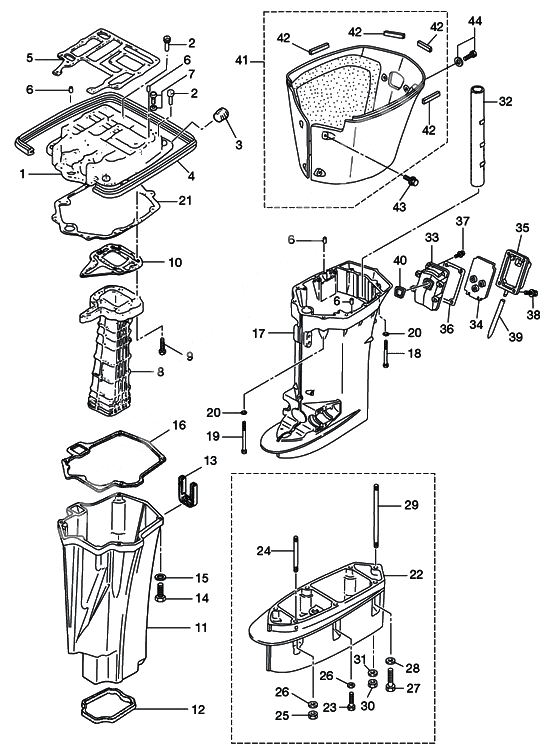

Drive shaft housing для Tohatsu MD90C2 - 2010 года выпуска
-
№АртикулНазвание
-
13T9Q01301-0 Engine base (amb)Engine base (amb)
-
3T9Q01301-1 Engine base (amb)Engine base (amb)
-
23B7-67179-0 Drain Plug, Engine BaseDrain Plug, Engine Base
-
33H6-07257-0 Exhaust PlugExhaust Plug
-
43B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
53B7-01303-4 Gasket engine baseGasket engine base
-
6345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
7910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
83B7-02311-0 Exhaust PipeExhaust Pipe
-
93V1-60001-1 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
103B7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
113D8-61180-0 Exhaust HousingExhaust Housing
-
123B7-61182-1 Grommet exhaust housingGrommet exhaust housing
-
133B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
149101E3-0830 BoltBolt
-
910103-0830 BoltBolt
-
159402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
163B7-61181-2 GasketGasket
-
173FWQ61192-0 Drive shaft housingDrive shaft housing
-
183B7-61017-3 Bolt 8-105Bolt 8-105
-
193B7-61018-2 Bolt 8-115Bolt 8-115
-
3B7-61018-1 Bolt 8-115Bolt 8-115
-
209402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
213B7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
223B7Q61110-0 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
233T1-60001-1 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
249153E3-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
25930103-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
269402E3-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
940203-0800 WasherWasher
-
273B7-60001-5 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
289402E3-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
293B7-61112-1 Stud BoltStud Bolt
-
3B7-61112-0 Stud BoltStud Bolt
-
303B7-61114-0 NutNut
-
319402E3-1000 WasherWasher
-
323B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
333T1Q61241-0 Idle exhaust passage (amb)Idle exhaust passage (amb)
-
343T1-61242-0 Separation idle exhaust passageSeparation idle exhaust passage
-
353T1Q61245-0 Cover idle exhaust passage (amb)Cover idle exhaust passage (amb)
-
363T1-61244-0 Gasket passage coverGasket passage cover
-
379101E3-5620 Bolt & washerBolt & washer
-
389101E3-5635 Bolt & washerBolt & washer
-
393T1-61097-0 Water outlet hoseWater outlet hose
-
403T1-61212-0 Apron grommetApron grommet
-
413T1Q61225-1 Apron assy (amb)Apron assy (amb)
-
3T1Q61225-0 Apron assy (amb)Apron assy (amb)
-
423T1-61213-0 Apron sealApron seal
-
439101E3-5612 Bolt & washerBolt & washer
-
449101E3-5616 Bolt & washerBolt & washer
