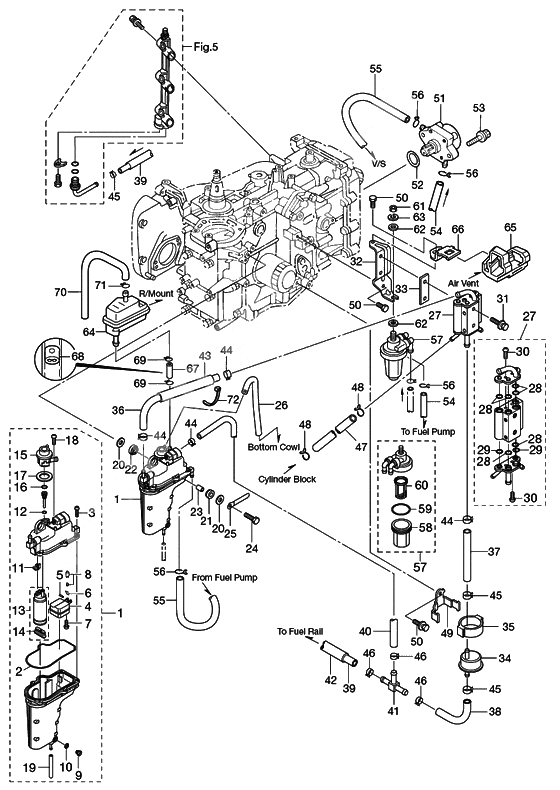

Fuel system для Tohatsu MFS25B - 2010 года выпуска
-
№АртикулНазвание
-
13AC-10150-0 Vapor separatorVapor separator
-
23AC-03235-0 O-RingO-Ring
-
3921503-6416 ScrewScrew
-
43AC-03230-0 FloatFloat
-
53F3-03232-0 Arm Pin FloatArm Pin Float
-
6344-03244-0 ClipClip
-
7921503-0408 Stud BoltStud Bolt
-
83R3-03239-0 Floato Valve Assy
WITH VALVE PINFloato Valve Assy
WITH VALVE PIN -
93AC-03292-0 Drain ScrewDrain Screw
-
103AC-03116-0 O-ring drain screwO-ring drain screw
-
113AC-06952-0 Terminal holderTerminal holder
-
123AD-03116-0 O-RingO-Ring
-
133AC-04310-0 Fuel feed pumpFuel feed pump
-
143AC-77434-0 FilterFilter
-
153AC-10154-0 Fuel regulatorFuel regulator
-
163AC-10095-0 O-RingO-Ring
-
173AC-04313-0 GrommetGrommet
-
183AC-03234-0 ScrewScrew
-
1998AB-3-0300 Fuel pipe 3mm (1 ea.=1 meter)
FOR DRAIN / 98AB-301000Fuel pipe 3mm (1 ea.=1 meter)
FOR DRAIN / 98AB-301000 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
20346-67115-0 WasherWasher
-
21346-67113-0 Mount RubberMount Rubber
-
223B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
23346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
249101E3-0630 BoltBolt
-
253T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
-
2698AB-3-0540 Fuel pipe 3mm (1 ea.=1 meter)
VAPOR SEPARATOR - BOTTOM COWL / 98AB-301000Fuel pipe 3mm (1 ea.=1 meter)
VAPOR SEPARATOR - BOTTOM COWL / 98AB-301000 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
273AC-10175-0 Fuel coolerFuel cooler
-
283AC-10046-0 O-RingO-Ring
-
293AC-10164-0 O-RingO-Ring
-
30921503-6410 Stud BoltStud Bolt
-
319101E3-5635 Bolt & washerBolt & washer
-
323AC-02239-0 PlatePlate
-
333AC-10019-0 Gasket fuel coolerGasket fuel cooler
-
343ACB10143-0 Fuel FilterFuel Filter
-
353AC-10145-0 Rubber mount fuel filterRubber mount fuel filter
-
363AD-02204-0 Fuel hose
VAPOR SEPARATOR - F/COOLERFuel hose
VAPOR SEPARATOR - F/COOLER -
373AC-02204-0 Fuel hose
F/COOLER - H/P/F/FILTERFuel hose
F/COOLER - H/P/F/FILTER -
383AC-02211-0 Fuel hose
H/P/F/FILTER - T NIPPLEFuel hose
H/P/F/FILTER - T NIPPLE -
393AC-02212-0 Fuel hose
T NIPPLE - FUEL RAILFuel hose
T NIPPLE - FUEL RAIL -
403AD-02211-0 Fuel hose
VAPOR SEPARATOR - T NIPPLEFuel hose
VAPOR SEPARATOR - T NIPPLE -
413AC-70013-0 T-NippleT-Nipple
-
423AD-06157-0 Hose protectorHose protector
-
433AD-06133-0 Protector @18-130Protector @18-130
-
443AC-10087-0 ClampClamp
-
453AC-09056-1 ClipClip
-
3AC-09056-0 ClipClip
-
463T5-10086-0 Clamp 21/32Clamp 21/32
-
4798AR-50-600 Rubber hose
FUEL COOLER - WATER NIPPLE / 98AR-501000Rubber hose
FUEL COOLER - WATER NIPPLE / 98AR-501000 -
48338-02215-0 ClipClip
-
493AC-10144-0 Band fuel filterBand fuel filter
-
509101E3-5616 Bolt & washerBolt & washer
-
513H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
539101E3-5625 Bolt & washerBolt & washer
-
5498AB-5-0370 Fuel pipe 5mm (1 ea.=1 meter)
FUEL FILTER - FUEL PUMP / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL FILTER - FUEL PUMP / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
5598AB-5-0600 Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - VAPOR SEPARATOR / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - VAPOR SEPARATOR / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
56338-02215-0 ClipClip
-
573AD-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
583AD-02237-0 CapCap
-
593AD-02235-0 O-RingO-Ring
-
603AD-02234-0 FilterFilter
-
61930103-0800 NutNut
-
62940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
63941303-0800 Spring WasherSpring Washer
-
643AC-10320-0 Air vent assyAir vent assy
-
653AC-06302-0 Rubber mount air ventRubber mount air vent
-
663AC-76174-0 Air vent stayAir vent stay
-
6798AB-5-0040 Fuel pipe 5mm (1 ea.=1 meter)
AIR VENT - VAPOR SEPARATOR / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR VENT - VAPOR SEPARATOR / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
683AD-10170-0 OrificeOrifice
-
69338-02215-0 ClipClip
-
7098AL-4-0620 Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR VENT - BOTTOM COWL / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR VENT - BOTTOM COWL / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
71338-01133-0 ClipClip
-
72369-84398-0 Band Lead Wire,158Band Lead Wire,158
