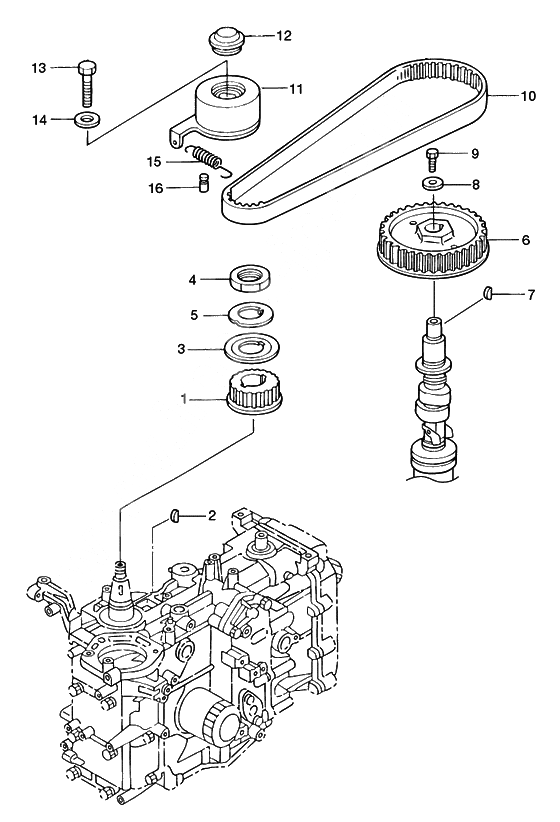

Pulley & timing belt для Tohatsu MFS25B - 2010 года выпуска
-
№АртикулНазвание
-
13R0-10060-0 Drive Puley
TIMING PULLEYDrive Puley
TIMING PULLEY -
23T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
33R0-10063-0 PlatePlate
-
43R0-10068-0 NutNut
-
53R0-10069-0 Lock WasherLock Washer
-
63H8-10062-2 Driven Pulley
CAMSHAFT PULLEYDriven Pulley
CAMSHAFT PULLEY -
7309-00131-0 Key, MagnetoKey, Magneto
-
83H8-10066-0 WasherWasher
-
93AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
103R0-10061-0 Timing BeltTiming Belt
-
113R0-10070-0 Tensioner,timing beltTensioner,timing belt
-
123R0-10074-0 Covcer,tensionerCovcer,tensioner
-
139101E3-1040 BoltBolt
-
910103-1040 BoltBolt
-
149401E3-1000 WasherWasher
-
153R0-10075-0 Spring,tensionerSpring,tensioner
-
163R0-10077-0 Hook,spring tensionerHook,spring tensioner
