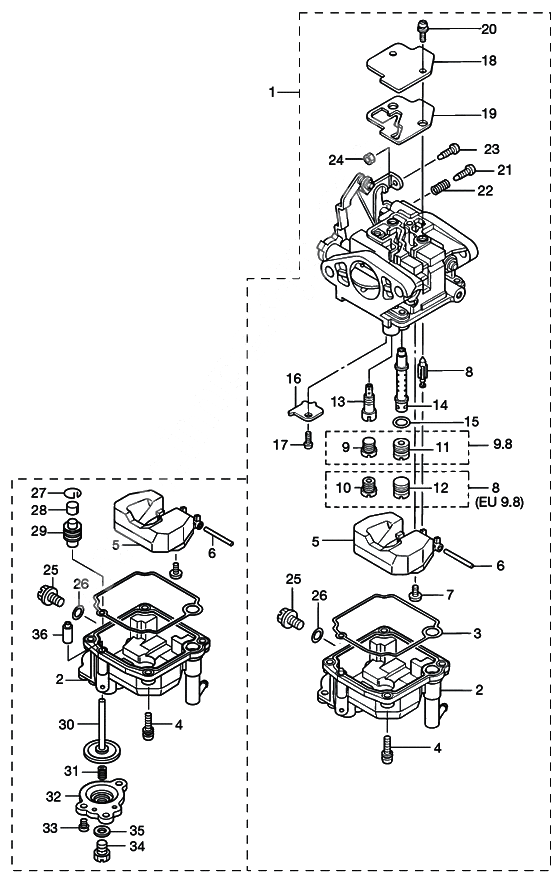

Carburetor для Tohatsu MFS8A3 - 2010 года выпуска
-
№АртикулНазвание
-
13V1-03100-2 Carburetor
8PS FOR MF & EF / 3V1FBCarburetor
8PS FOR MF & EF / 3V1FB -
13V1-03133-2 Carburetor
8PS FOR EP / 3V1PBCarburetor
8PS FOR EP / 3V1PB -
23Y0-03120-0 Float chamber f9.9c/w/accellerator pump
6/8PS EUFloat chamber f9.9c/w/accellerator pump
6/8PS EU -
33V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
4922503-6412 Stud BoltStud Bolt
-
53C8-03125-0 FloatFloat
-
63C8-03126-0 Float Arm PinFloat Arm Pin
-
7921703-0406 Stud BoltStud Bolt
-
83V1-03147-1 Float ValveFloat Valve
-
93V1-04476-0 Main Jet #76
8PSMain Jet #76
8PS -
93V1-04471-0 Main jet #71 8a (high altitude up to 10 000 ft)
6/8PS / FOR EU ONLYMain jet #71 8a (high altitude up to 10 000 ft)
6/8PS / FOR EU ONLY -
103V1-03169-0 Plug
FOR EU ONLYPlug
FOR EU ONLY -
113V2-04492-0 Main Jet #92
FOR 9.8PS ONLYMain Jet #92
FOR 9.8PS ONLY -
123V2-03169-0 PlugPlug
-
133V1-04539-0 Slow Jet#39
8/9.8PSSlow Jet#39
8/9.8PS -
133V1-04537-0 Slow jet (#37)(make-to order)
6/8PS EUSlow jet (#37)(make-to order)
6/8PS EU -
143V1-03141-0 Main Nozzle
8PSMain Nozzle
8PS -
153V1-03116-0 O-RingO-Ring
-
163V1-03128-0 PlatePlate
-
17922503-0305 Stud BoltStud Bolt
-
183C8-03181-0 Cover PlateCover Plate
-
193V1-03182-0 Gasket,Cabretor CoverGasket,Cabretor Cover
-
20922503-6410 Stud BoltStud Bolt
-
213V2-03179-0 Stop ScrewStop Screw
-
223V2-03157-0 Spring WasherSpring Washer
-
233V1-03179-0 Stop Screw
FOR MF & EFStop Screw
FOR MF & EF -
243V1-03191-0 Nut
FOR MF & EFNut
FOR MF & EF -
253V1-03192-0 Drain ScrewDrain Screw
-
263V1-03193-0 O-RingO-Ring
-
273AA-03189-0 Retaining ring
FOR EURetaining ring
FOR EU -
283AA-03190-0 Cap
FOR EUCap
FOR EU -
293AA-03311-0 Rubber boot
FOR EURubber boot
FOR EU -
303AA-03315-0 Plunger f9.9c
FOR EUPlunger f9.9c
FOR EU -
313AA-03314-0 Coil spring f9.9c
FOR EUCoil spring f9.9c
FOR EU -
323Y0-03197-0 Diaphragm cover
FOR EUDiaphragm cover
FOR EU -
33921503-0508 Stud Bolt
FOR EUStud Bolt
FOR EU -
343AA-03192-0 Drain Screw
FOR EUDrain Screw
FOR EU -
353AA-03193-0 Drain screw gasket
FOR EUDrain screw gasket
FOR EU
