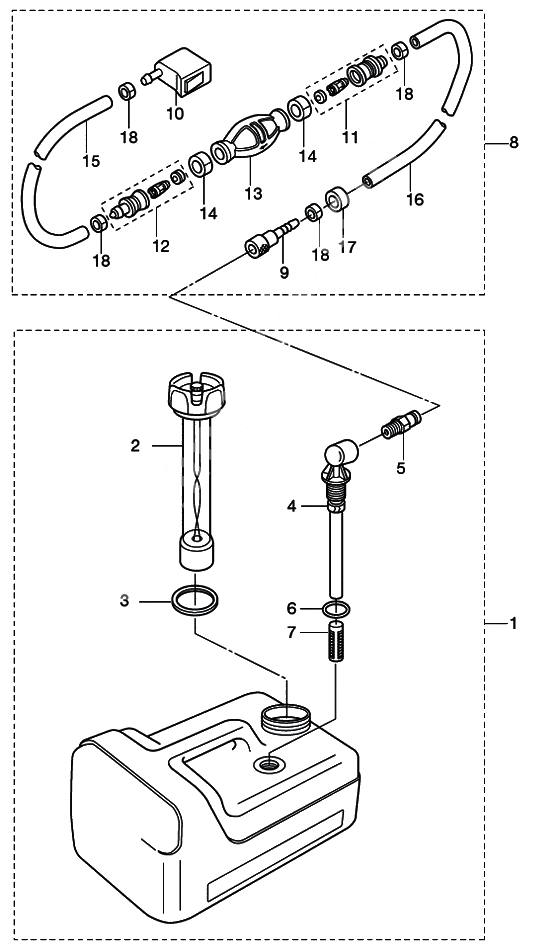

Fuel tank для Tohatsu MFS8A3 - 2010 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 New part
TOHATSUNew part
TOHATSU -
19999-8-FT12 Fuel tank 12l (3.1 gal) epa cap (nissan)
NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
NISSAN -
3Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
23B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
33C7-70021-0 Cap gasketCap gasket
-
43B2-70155-0 Fuel PickupFuel Pickup
-
53E0-70270-0 New partNew part
-
63C7-70199-0 O-RingO-Ring
-
73C7-70113-0 FilterFilter
-
83H6-70200-1 Primer bulb assy (4-stroke - 4-30hp)Primer bulb assy (4-stroke - 4-30hp)
-
3H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)Primer bulb assy (4-stroke - 4-30hp)
-
83AC-70200-2 Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
3AD-70200-2 Primer bulb assy (low permeation)Primer bulb assy (low permeation)
-
93GF-70281-0 Fuel connector
STDFuel connector
STD -
10394-70250-0 Соединитель топливныйСоединитель топливный
-
113C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
123C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
133C7-70211-1 Primer BulbPrimer Bulb
-
143C7-70217-0 ClampClamp
-
1598AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
153GF-70241-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
1698AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000×2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000×2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
163GF-70240-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
173B7-70280-1 Mark, Fuel ConnectorMark, Fuel Connector
-
18332-70201-0 ClampClamp
