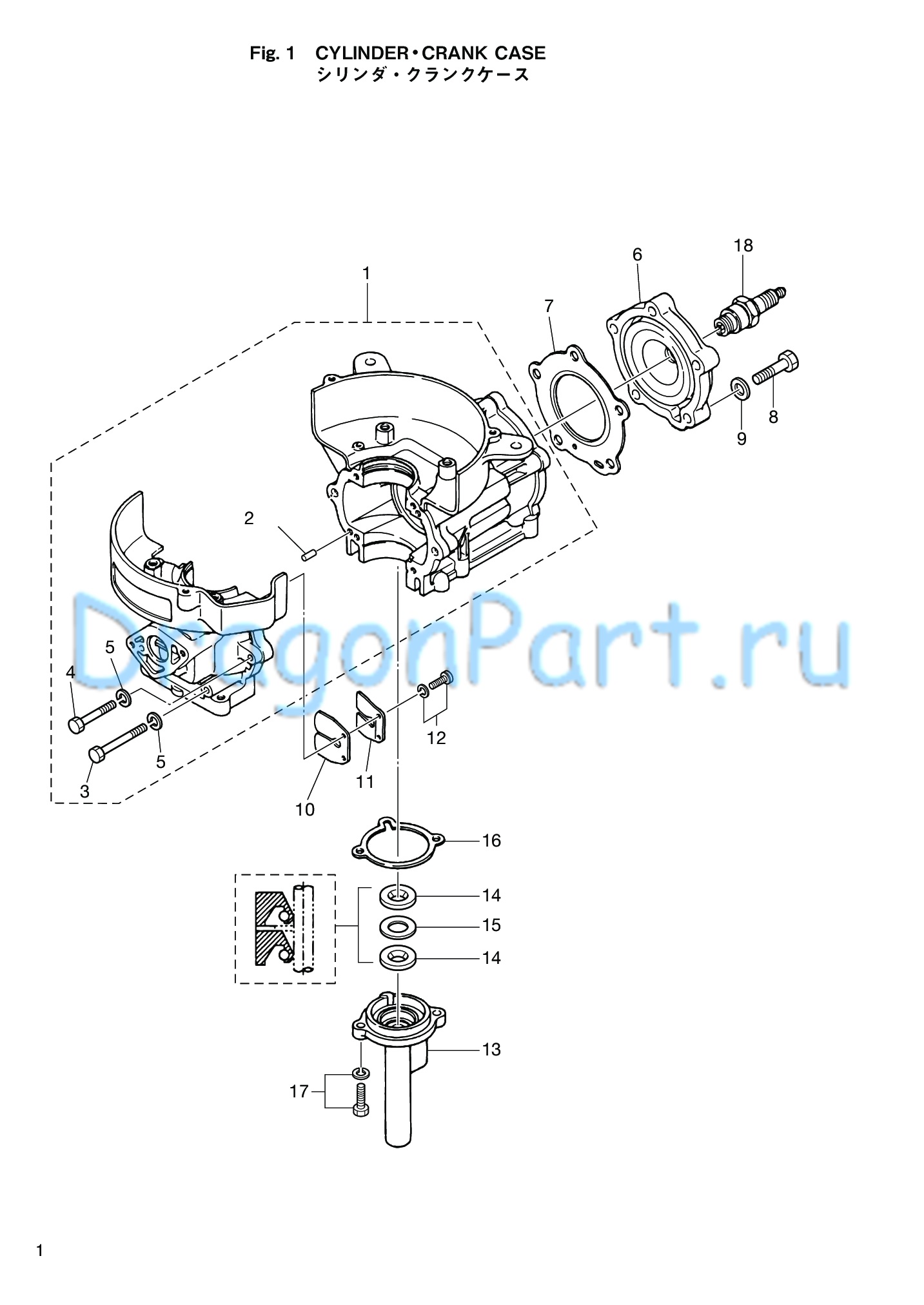

CYLINDER CRANK CASE для Tohatsu M5B - 2011 года выпуска
-
№АртикулНазвание
-
1369B01100-2 Cyl Block & Crankcase Ass'yCyl Block & Crankcase Ass'y
-
2345-01111-0 * Dowel Pin 6-12* Dowel Pin 6-12
-
3916124-0653 * Bolt* Bolt
-
4916124-0630 * Bolt* Bolt
-
5941322-0600 * Spring Washer* Spring Washer
-
6369B01001-1 Cylinder HeadCylinder Head
-
7369-01005-2 Cylinder Head GasketCylinder Head Gasket
-
89161F4-0835 BoltBolt
-
9940124-0800 WasherWasher
-
10369-02111-0 Reed ValveReed Valve
-
11369-02113-0 Reed Valve Stopper
M5BReed Valve Stopper
M5B -
12921521-6410 ScrewScrew
-
13369-01210-4 Crankcase HeadCrankcase Head
-
14369-01215-0 Oil Seal 10.1-25-7Oil Seal 10.1-25-7
-
15369-01217-0 Spacer 19-24.8-1Spacer 19-24.8-1
-
16369-01214-0 Crankcase Head GasketCrankcase Head Gasket
-
17910103-6620 BoltBolt
-
189701-1-1010 Spark Plug (BP7HS10)
for DO STDSpark Plug (BP7HS10)
for DO STD -
189701-1-1014 Spark Plug (BPR7HS10)
for EX STD, DO OPTSpark Plug (BPR7HS10)
for EX STD, DO OPT -
1369-00115-0 Thrust PlateThrust Plate
-
2369-00122-0 Oil Seal 20-47-8Oil Seal 20-47-8
-
3369-00001-0 Piston
STDPiston
STD -
3369-00004-0 Piston (0.5 O/S)
OPTPiston (0.5 O/S)
OPT -
4351-00011-0 Piston Ring
STDPiston Ring
STD -
4351-00014-0 Piston Ring (0.5 O/S)
OPTPiston Ring (0.5 O/S)
OPT -
5369-00021-1 Piston PinPiston Pin
-
6350-00024-1 Piston Pin ClipPiston Pin Clip
-
7350-00042-0 Roller Bearing 14-18-20Roller Bearing 14-18-20
-
8369-00069-0 Crankshaft Sub-Ass'yCrankshaft Sub-Ass'y
-
9369-00031-0 * Crankshaft A* Crankshaft A
-
10369-00034-0 * Crankshaft D* Crankshaft D
-
11369-00061-1 * Crank Pin* Crank Pin
-
12369-00043-0 * Roller Bearing 20-26-12* Roller Bearing 20-26-12
-
13369-00040-0 * Connecting Rod* Connecting Rod
-
149603-3-6204 Ball Bearing 6204Ball Bearing 6204
-
15338-00131-0 KeyKey
