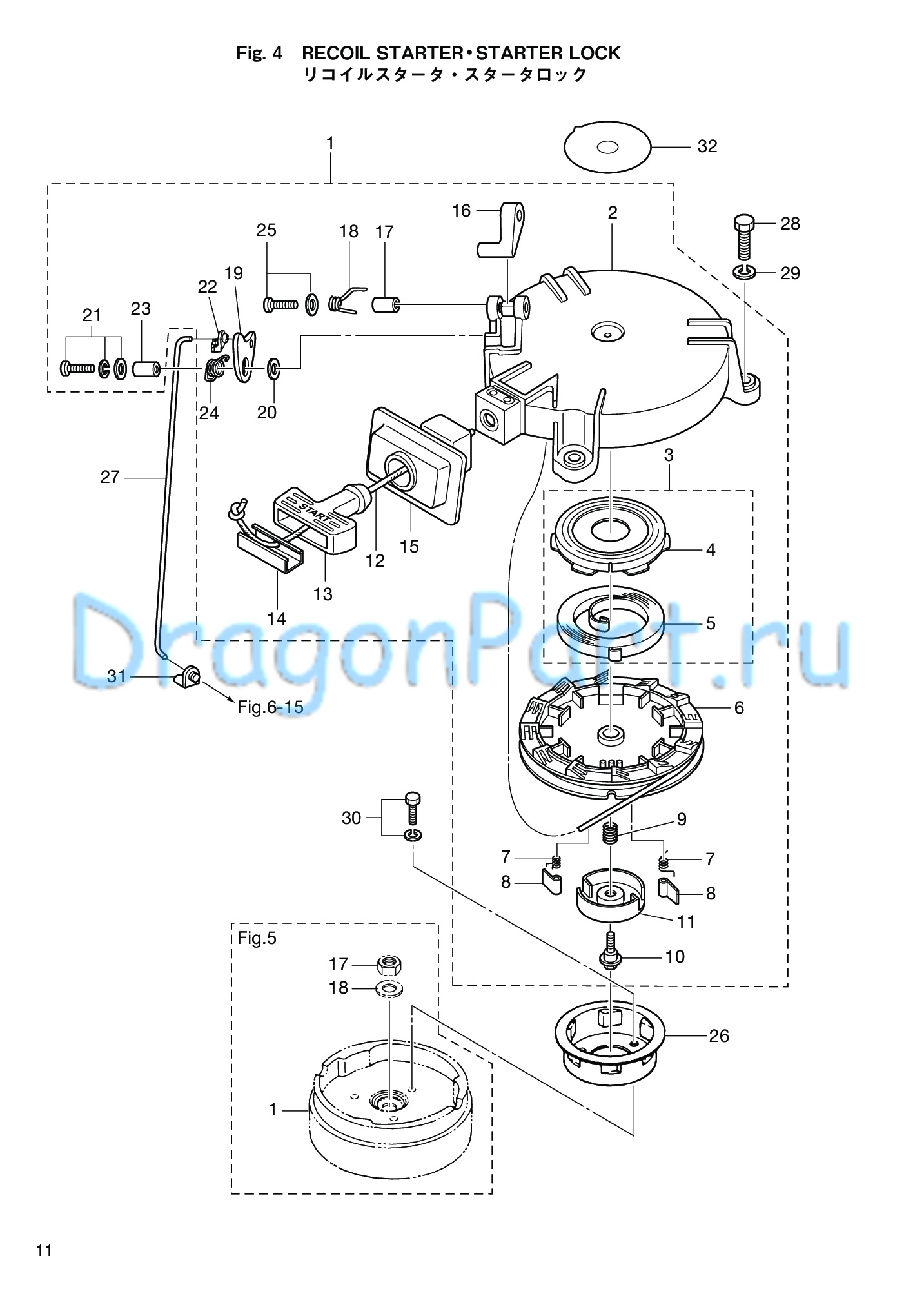

RECOIL STARTER STARTER LOCK для Tohatsu M5B - 2011 года выпуска
-
№АртикулНазвание
-
13AS-05090-2 Recoil Starter Ass'yRecoil Starter Ass'y
-
23R1-05105-2 * Starter Case* Starter Case
-
33R1-05010-2 * Starter Spring Set* Starter Spring Set
-
43R1-05125-2 ** Starter Spring Case** Starter Spring Case
-
53R1-05004-2 ** Starter Spring** Starter Spring
-
63R1-05104-2 * Reel* Reel
-
73R1-05012-2 * Return Spring* Return Spring
-
83R1-05003-4 * Ratchet* Ratchet
-
93R1-05007-2 * Friction Spring* Friction Spring
-
103R1-05138-3 * Bolt* Bolt
-
113R1-05006-4 * Friction Plate* Friction Plate
-
123R1-05013-2 * Starter Rope ?4.5-1620* Starter Rope ?4.5-1620
-
133R1-05019-2 * Starter Handle* Starter Handle
-
143R1-05131-2 * Rope Anchor* Rope Anchor
-
153R1-05116-2 * Sealing Plate* Sealing Plate
-
163R1-05252-2 * Starter Lock* Starter Lock
-
173R1-05255-2 * Collar 4-6-21* Collar 4-6-21
-
183R1-05216-2 * Starter Lock Spring* Starter Lock Spring
-
193R1-05253-2 * Starter Lock Cam* Starter Lock Cam
-
20940103-0602 * Washer* Washer
-
21921503-7618 * Screw* Screw
-
223R1-05223-2 * Rod Snap 3.5-2* Rod Snap 3.5-2
-
233R1-05215-2 * Collar 6.1-8-6.5* Collar 6.1-8-6.5
-
243R1-05258-2 * Starter Lock Cam Spring* Starter Lock Cam Spring
-
25921503-5432 * Screw* Screw
-
263R1-05901-2 Starter PulleyStarter Pulley
-
27369-05217-3 Starter Lock RodStarter Lock Rod
-
289101F4-0625 BoltBolt
-
29941303-0602 Spring WasherSpring Washer
-
30910121-6614 BoltBolt
-
'31345-05223-1 Rod Snap 3.5-2Rod Snap 3.5-2
-
'323R-72181-0 Caution Decal (B)Caution Decal (B)
