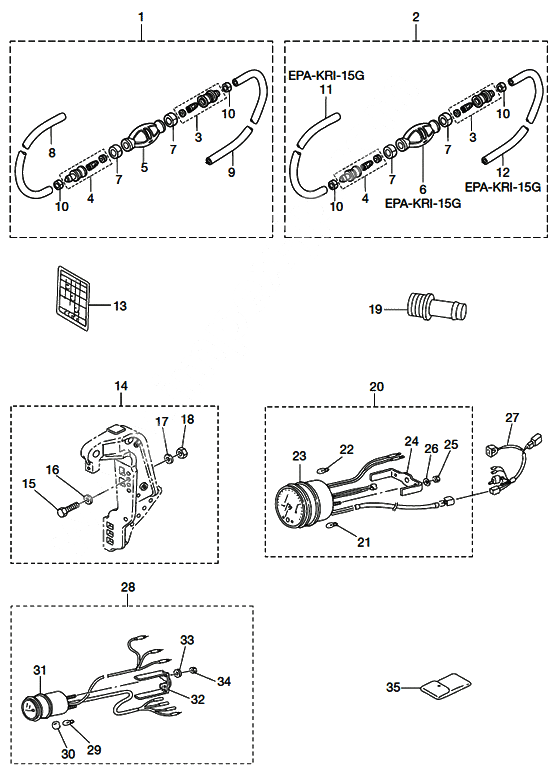

Accessories для Tohatsu MD115A2 - 2011 года выпуска
-
№АртикулНазвание
-
13T1-70200-1 Primer bulb assyPrimer bulb assy
-
3FF-70200-4 Primer bulb assyPrimer bulb assy
-
23FF-70200-3 Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
3FF-70200-4 Primer bulb assy (low permeation)Primer bulb assy (low permeation)
-
33C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
43C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
53C7-70211-1 Primer BulbPrimer Bulb
-
63GF-70211-0 Primer bulb low permeation
LOW PERMEATION PARTS (FOR USA MODEL)Primer bulb low permeation
LOW PERMEATION PARTS (FOR USA MODEL) -
3GF-70211-1 Primer bulb low permeationPrimer bulb low permeation
-
73C7-70217-0 ClampClamp
-
898AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
998AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000 x 2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000 x 2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
10332-70201-0 ClampClamp
-
113GF-70241-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
123GF-70240-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
133T5-72050-0 New partNew part
-
143C8-72120-0 Rigging bolt setRigging bolt set
-
153C7-62133-2 BoltBolt
-
16353-61334-0 WasherWasher
-
17940103-1200 WasherWasher
-
183C7-62139-1 Nut,P1.25Nut,P1.25
-
193T1-72405-0 Hose jointHose joint
-
203GF-72647-0 Tachometer - tldi - black (ftc1918)Tachometer - tldi - black (ftc1918)
-
3GF-72647-1 Tachometer - tldi - black (ftc1918)Tachometer - tldi - black (ftc1918)
-
203GL-72647-0 Tachometer - tldi - white (ftc1912)Tachometer - tldi - white (ftc1912)
-
203Z5-72640-1 Tachometer - nlaTachometer - nla
-
213B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
223B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
233B7-72656-0 Damper, MeterDamper, Meter
-
243B7-72661-0 Plate, FittingPlate, Fitting
-
25930203-0500 NutNut
-
26941303-0500 Spring WasherSpring Washer
-
273T5-72537-1 Lead wire meter (l=8000 mm)Lead wire meter (l=8000 mm)
-
283GF-72571-0 Trim meter 2in - black (fgp8010) 2-wireTrim meter 2in - black (fgp8010) 2-wire
-
283GL-72571-0 Trim meter 2in - white (fgp8008)2-wireTrim meter 2in - white (fgp8008)2-wire
-
283T1-72571-0 Trim meter assy. (2-wire)Trim meter assy. (2-wire)
-
293T1-72659-0 Bulb meterBulb meter
-
303T1-72653-0 Cap meter bulbCap meter bulb
-
313B7-72655-0 Damper, MeterDamper, Meter
-
323T1-72665-0 Plate FittingPlate Fitting
-
33941303-0400 Spring WasherSpring Washer
-
34930203-0400 NutNut
-
353H6-72100-0 TOOL ASS'YTOOL ASS'Y
