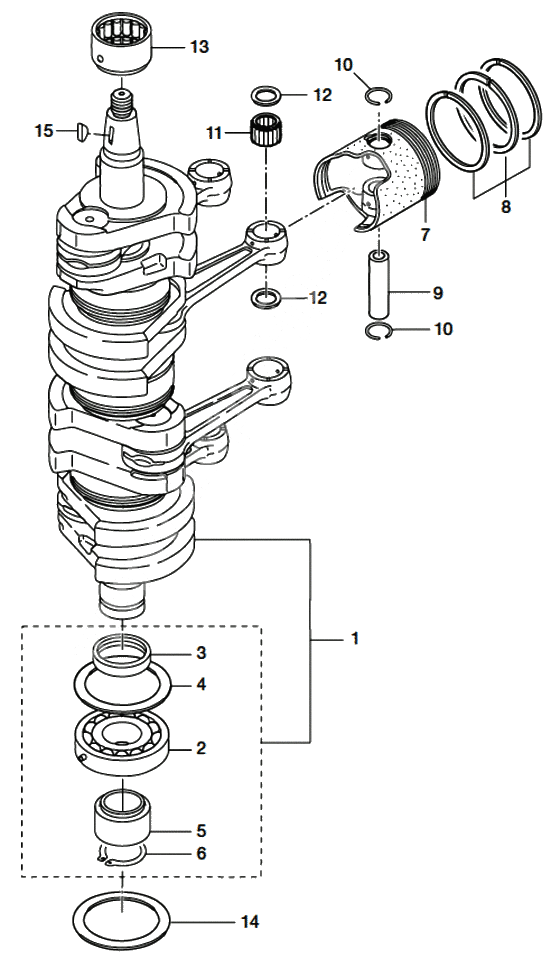

Piston & crank shaft для Tohatsu MD115A2 - 2011 года выпуска
-
№АртикулНазвание
-
13T1-00030-0 Crankshaft assyCrankshaft assy
-
23C7-00118-0 Bearing, 6208Bearing, 6208
-
33B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
43B7-00115-0 WasherWasher
-
53T7-00119-0 Spacer, 35-48.6-16Spacer, 35-48.6-16
-
6945107-3500 C-RingC-Ring
-
73T1-00001-0 Piston (standard)
STDPiston (standard)
STD -
73T1-00004-0 Piston (.5mm o/z)
OPTPiston (.5mm o/z)
OPT -
83C7-00011-0 Piston ring 1st(std)
STDPiston ring 1st(std)
STD -
83C7-00014-0 Поршневые кольца
OPTПоршневые кольца
OPT -
93T1-00021-1 Piston PinPiston Pin
-
3T1-00021-0 Piston PinPiston Pin
-
103T1-00024-0 Clip piston pinClip piston pin
-
113T1-00042-0 Needle bearing 23-28-28Needle bearing 23-28-28
-
123T1-00046-0 Washer small end bearingWasher small end bearing
-
133C7-00113-0 Main Bearing, UpperMain Bearing, Upper
-
143B7-00115-0 WasherWasher
-
15334-00131-0 Key MagnetoKey Magneto
