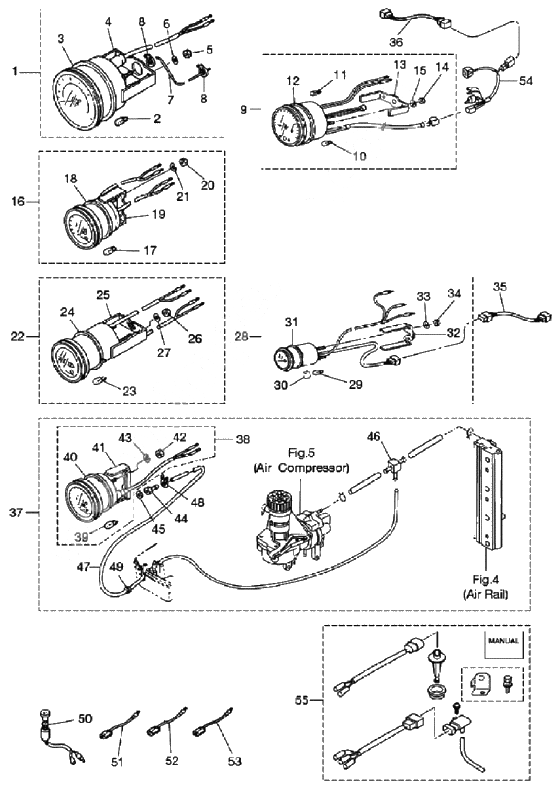

Optional parts 1 для Tohatsu MD90C2 - 2011 года выпуска
-
№АртикулНазвание
-
13E0-72649-0 Speedometer 75mph Kit B
75PHSpeedometer 75mph Kit B
75PH -
13E0-72648-0 Speedometer 50mph Kit B
50PHSpeedometer 50mph Kit B
50PH -
23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
33B7-72656-0 Damper, MeterDamper, Meter
-
43B7-72661-0 Plate, FittingPlate, Fitting
-
5930203-0500 NutNut
-
6941303-0500 Spring WasherSpring Washer
-
73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
83B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
93Z5-72640-1 Tachometer - nlaTachometer - nla
-
103B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
113B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
123B7-72656-0 Damper, MeterDamper, Meter
-
133B7-72661-0 Plate, FittingPlate, Fitting
-
14930203-0500 NutNut
-
15941303-0500 Spring WasherSpring Washer
-
163E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
173B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
183B7-72655-0 Damper, MeterDamper, Meter
-
193B7-72662-0 Plate, FittingPlate, Fitting
-
20930203-0400 NutNut
-
21941303-0400 Spring WasherSpring Washer
-
223E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
233B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
243B7-72655-0 Damper, MeterDamper, Meter
-
253B7-72664-0 Plate FittingPlate Fitting
-
26930203-0400 NutNut
-
27941303-0400 Spring WasherSpring Washer
-
283T1-72571-0 Trim meter assy. (2-wire)Trim meter assy. (2-wire)
-
293T1-72659-0 Bulb meterBulb meter
-
303T1-72653-0 Cap meter bulbCap meter bulb
-
313B7-72655-0 Damper, MeterDamper, Meter
-
323T1-72665-0 Plate FittingPlate Fitting
-
33941303-0400 Spring WasherSpring Washer
-
34930203-0400 NutNut
-
353T1-72573-0 Extension cord trim (2-wire) 6mExtension cord trim (2-wire) 6m
-
353Z4-72573-0 Extension cord trim (2-wire) 2mExtension cord trim (2-wire) 2m
-
363T5-76112-0 Extension Cord(2P)2mExtension Cord(2P)2m
-
373E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
383E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
393B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
403B7-72655-0 Damper, MeterDamper, Meter
-
413B7-72663-0 Plate, FittingPlate, Fitting
-
42930203-0500 NutNut
-
43941303-0500 Spring WasherSpring Washer
-
443B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
45121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
46394-70013-0 Pipu Joint T-typePipu Joint T-type
-
48338-02215-0 ClipClip
-
49345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
50353-72521-1 Switch Meter LampSwitch Meter Lamp
-
51353-72547-0 Assist Cord(blue)Assist Cord(blue)
-
52353-72548-0 Assist Cord(black)Assist Cord(black)
-
53353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
543T5-72537-1 Lead wire meter (l=8000 mm)Lead wire meter (l=8000 mm)
-
553GF-10230-0 Altitude adjustment kit
for High AltitudeAltitude adjustment kit
for High Altitude
