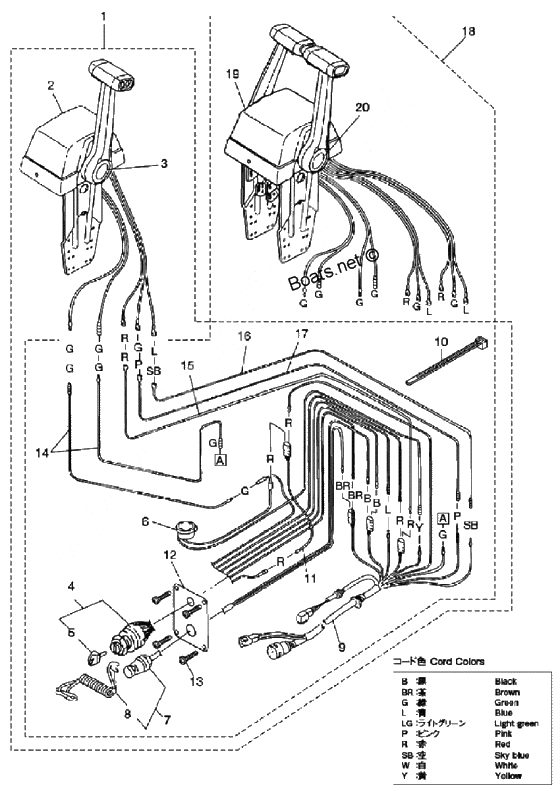

Optional parts 2 для Tohatsu MD90C2 - 2011 года выпуска
-
№АртикулНазвание
-
23T5Q84480-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)
Top Single RC6GBinnacle mount control box kit single 40/50/70/90 tldi (amb)
Top Single RC6G -
3T5Q84490-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)Binnacle mount control box kit single 40/50/70/90 tldi (amb)
-
33Z5-84462-0 Decal (tohatsu) not for sale
Top SingleDecal (tohatsu) not for sale
Top Single -
4353-76020-3 Main Switch Ass'y
Top SingleMain Switch Ass'y
Top Single -
63C8-76171-0 Over-heat Buzzer
Top SingleOver-heat Buzzer
Top Single -
73A3-06830-0 Emergency Stop Switch B Ass'y
Top SingleEmergency Stop Switch B Ass'y
Top Single -
8353-06821-0 Lock, lanyard stop switch
Top SingleLock, lanyard stop switch
Top Single -
93T5-76115-1 Cord assy b (l=6200mm)
Top SingleCord assy b (l=6200mm)
Top Single -
103A3-84398-0 Band Lead Wire
Top SingleBand Lead Wire
Top Single -
11353-72546-0 Assist Cord(Red)
Top SingleAssist Cord(Red)
Top Single -
123T5-76201-0 Panel Main Switch
Top TwinPanel Main Switch
Top Twin -
13921146-4516 Stud Bolt
Top SingleStud Bolt
Top Single -
143C7-84471-1 Cord,Neutral Switch,Green
Green Top SingleCord,Neutral Switch,Green
Green Top Single -
153C7-84475-0 Cord,ptt Switch(red)
Red Top TwinCord,ptt Switch(red)
Red Top Twin -
163C7-84476-0 Cord,ptt Switch(sky-blue)
Sky Blue Top SingleCord,ptt Switch(sky-blue)
Sky Blue Top Single -
173C7-84477-0 Cord PTT Switch,Pink
Pink Top SingleCord PTT Switch,Pink
Pink Top Single -
183T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
Top Twin RC6GTBinnacle mount control box kit dual 40/50/70/90 tldi (amb)
Top Twin RC6GT -
193T5Q84520-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
Top Twin RC6GtBinnacle mount control box kit dual 40/50/70/90 tldi (amb)
Top Twin RC6Gt -
3T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
-
203Z5-84462-0 Decal (tohatsu) not for sale
Top TwinDecal (tohatsu) not for sale
Top Twin
