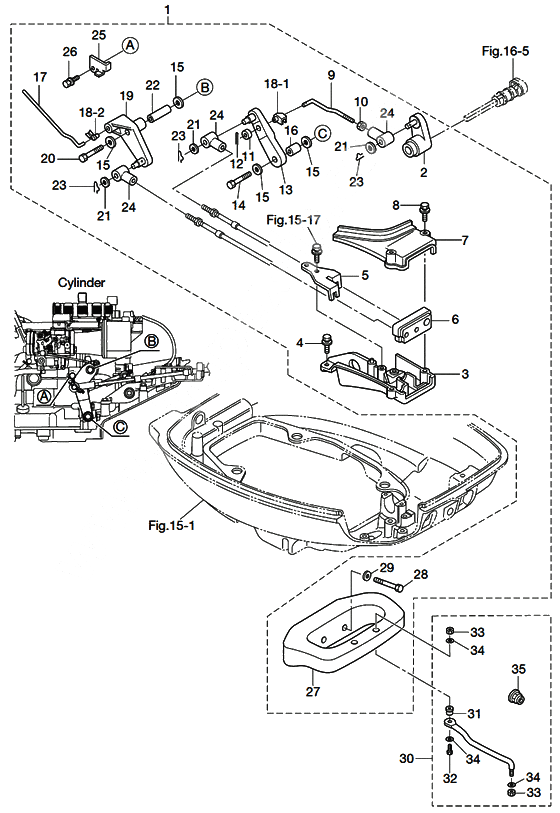

Remote control parts для Tohatsu MFS15C - 2011 года выпуска
-
№АртикулНазвание
-
13BJQ83880-2 R c fitting parts (f9.9/15/18b-15/20c)
FOR EP/EPTR c fitting parts (f9.9/15/18b-15/20c)
FOR EP/EPT -
3BJQ83880-3 R c fitting parts (f9.9/15/18b-15/20c)R c fitting parts (f9.9/15/18b-15/20c)
-
23R3-66128-0 Shift Arm, Remote ControlShift Arm, Remote Control
-
33R3Q67482-0 Rc control bracket (aqua marine blue)Rc control bracket (aqua marine blue)
-
49101E3-5620 Bolt & washerBolt & washer
-
53R3-83820-0 Bracket, CableBracket, Cable
-
63BJ-83732-0 Grommet cableGrommet cable
-
73R3-67483-1 Cover, Remote Control BracketCover, Remote Control Bracket
-
83BJ-67485-0 Bolt 5-35 (with washer)Bolt 5-35 (with washer)
-
93BJ-66134-0 Rod Shift LeverRod Shift Lever
-
10930103-0500 NutNut
-
113BJ-66138-0 Spacer 5-9.5-5Spacer 5-9.5-5
-
12951503-0212 Split PinSplit Pin
-
133R3-66129-0 Shift Lever, Remote ControlShift Lever, Remote Control
-
149101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
153R0-66308-0 WasherWasher
-
16353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
173R3-63709-0 Throttle Rod, Remote ControlThrottle Rod, Remote Control
-
18-13C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
18-2346-67196-1 Rod Snap 3-bRod Snap 3-b
-
193R3-83910-0 Throttle Lever, Remote ControlThrottle Lever, Remote Control
-
209101E3-0645 BoltBolt
-
910103-0645 BoltBolt
-
213AA-83719-0 WasherWasher
-
223R3-83913-1 CollarCollar
-
3R3-83913-0 CollarCollar
-
23951603-0800 R-PinR-Pin
-
243B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
253BJ-83914-0 Stopper throttle leverStopper throttle lever
-
269101E3-5616 Bolt & washerBolt & washer
-
273V5Q62001-0 Steering bracket (amb)Steering bracket (amb)
-
289161E3-1045 BoltBolt
-
916113-1045 BoltBolt
-
299401E3-1000 WasherWasher
-
303E0-84905-0 Drag link assy
FOR EP/EPTDrag link assy
FOR EP/EPT -
313E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
323E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
33353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
34353-84916-0 WasherWasher
-
353F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
