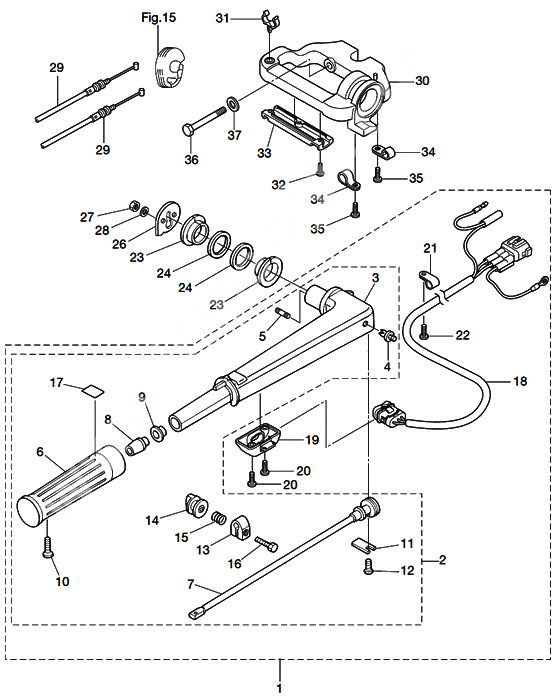

Tiller handle для Tohatsu MFS15C - 2011 года выпуска
-
№АртикулНазвание
-
13BKQ63003-2 Tiller handle assy (ptt)
FOR EFTTiller handle assy (ptt)
FOR EFT -
23BHQ63003-0 Tiller handle assy
FOR MF/EFTiller handle assy
FOR MF/EF -
33V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
4350-67154-0 New partNew part
-
53B2-63104-1 Stud BoltStud Bolt
-
63R3-63012-0 GripGrip
-
73V1-63041-0 Throttle ShaftThrottle Shaft
-
83H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
93H6-63510-0 BushingBushing
-
10920803-0518 Stud BoltStud Bolt
-
113B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
129215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
133V1-63035-1 Friction PieceFriction Piece
-
143V1-63077-0 Adjusting NutAdjusting Nut
-
153V1-63036-0 Spring WasherSpring Washer
-
169101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
173V9-72019-0 Label,ThrottleLabel,Throttle
-
183BJ-72615-0 Ptt switch assy
FOR EFTPtt switch assy
FOR EFT -
193V1-76032-0 Switch box
FOR EFTSwitch box
FOR EFT -
209215E3-0516 Screw
FOR EFTScrew
FOR EFT -
921503-0516 ScrewScrew
-
21336-06973-0 Clamp Lead Wire
FOR EFTClamp Lead Wire
FOR EFT -
229215E3-0512 Screw
FOR EFTScrew
FOR EFT -
921503-0512 ScrewScrew
-
233V1-63102-0 Bushing
FOR MF/EFBushing
FOR MF/EF -
243V1-63108-1 Washer
FOR MF/EFWasher
FOR MF/EF -
263BJ-63107-0 Cover plate steering
FOR MF/EFCover plate steering
FOR MF/EF -
279301E3-0600 Nut
FOR MF/EFNut
FOR MF/EF -
930103-0600 NutNut
-
289401E3-0600 Washer
FOR MF/EFWasher
FOR MF/EF -
940113-0600 WasherWasher
-
293V1-63600-0 Throttle Wire
FOR MF/EFThrottle Wire
FOR MF/EF -
303V1Q62001-1 Steering bracket
FOR MF/EFSteering bracket
FOR MF/EF -
313V2-62004-0 Cord holder
FOR MF/EFCord holder
FOR MF/EF -
32921503-0408 Stud BoltStud Bolt
-
333V1-62004-0 Cord holderCord holder
-
34336-06973-0 Clamp Lead Wire
FOR EFTClamp Lead Wire
FOR EFT -
359215E3-0510 Screw
FOR EFTScrew
FOR EFT -
921503-0510 ScrewScrew
-
363R3-62094-2 BoltBolt
-
379401E3-1000 WasherWasher
