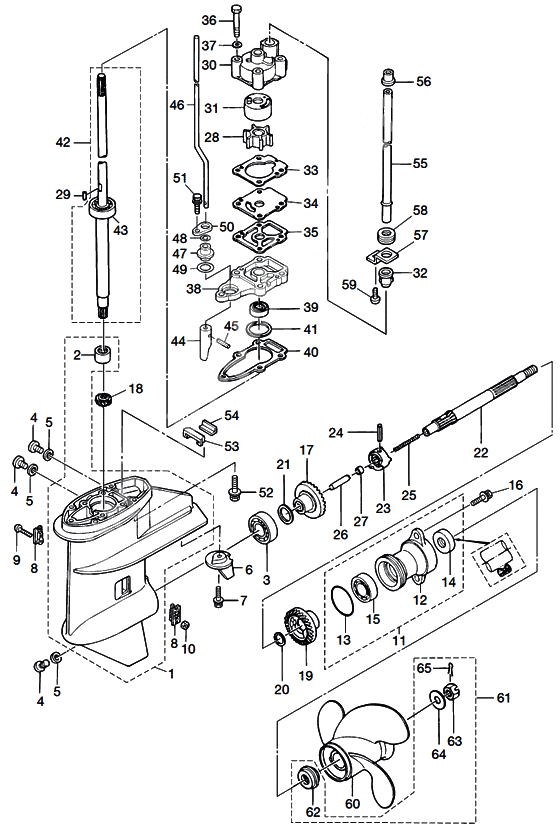

Lower unit для Tohatsu MFS9.8A3 - 2011 года выпуска

№

Артикул

Название
1

3AAQ60000-0 Gear case assy (amb)

Gear case assy (amb)

28 390 ₽
2

3V1-60211-0 Roller Bearing

Roller Bearing

3 870 ₽
3

9601-0-6204 Ball Bearing

Ball Bearing

2 080 ₽
4

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
5

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
6

3V1-60217-0 Trim Tab

Trim Tab

1 450 ₽
7

910103-5620 Bolt

Bolt

170 ₽
8

3AA-60206-0 Water Strainer
MARK A

Water Strainer
MARK A

670 ₽
9

921503-0430 Stud Bolt

Stud Bolt

120 ₽
10

930403-0400 Nylon Nut

Nylon Nut

210 ₽
11

3B2Q60100-0 Propeller shaft housing assy.

Propeller shaft housing assy.

5 380 ₽
3B2Q60100-1 Propeller shaft housing assy.

Propeller shaft housing assy.

10 040 ₽
12

3B2Q60101-0 Housing Propeller Shaft

Housing Propeller Shaft

4 430 ₽
3B2Q60101-1 Housing Propeller Shaft

Housing Propeller Shaft

8 270 ₽
13

345-65015-0 O-Ring

O-Ring

360 ₽
14

369-60111-0 Oil Seal

Oil Seal

1 230 ₽
15

9601-0-6004 Ball Bearing

Ball Bearing

2 440 ₽
16

9101E3-5620 Bolt & washer

Bolt & washer

360 ₽
17

3B2-64010-0 Bevel Gear A

Bevel Gear A

9 540 ₽
18

3B2-64020-0 Bevel Gear B

Bevel Gear B

2 130 ₽
19

3B2-64030-0 Bevel Gear C

Bevel Gear C

9 270 ₽
20

369-64032-0 Washer

Washer

630 ₽
21

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
21

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
22

3V1-64211-0 Propeller Shaft

Propeller Shaft

11 420 ₽
23

3B2-64215-0 Clutch

Clutch

6 070 ₽
24

301-64217-0 Pin Clutch

Pin Clutch

260 ₽
25

3V1-64221-0 Spring,Clutch

Spring,Clutch

540 ₽
26

369-64223-0 Push Rod Clutch

Push Rod Clutch

1 220 ₽
27

3B2-64222-0 Spring Holder, Clutch

Spring Holder, Clutch

750 ₽
28

3B2-65021-1 Крыльчатка водной помпы

Крыльчатка водной помпы

3 080 ₽
29

3B2-65022-0 New part

New part

560 ₽
30

3B2-65016-0 Water Pump Case

Water Pump Case

3 500 ₽
31

3B2-65011-0 New part

New part

1 290 ₽
32

331-65014-0 Lock ring coolibg water pipe

Lock ring coolibg water pipe

320 ₽
33

3B2-65018-1 Gasket

Gasket

370 ₽
3B2-65018-2 Gasket

Gasket

710 ₽
34

3B2-65025-0 Guide Plate Water Pump

Guide Plate Water Pump

570 ₽
35

3B2-65029-1 Gasket

Gasket

370 ₽
3B2-65029-2 Gasket

Gasket

600 ₽
36

9161E3-0650 Bolt

Bolt

210 ₽
37

9401E3-0600 Washer

Washer

120 ₽
940113-0600 Washer

Washer

140 ₽
38

3V1-65017-0 Pump Case Lower

Pump Case Lower

4 370 ₽
39

309-60111-0 Oil Seal 12-24-8

Oil Seal 12-24-8

1 010 ₽
40

3B2-65020-0 Gasket Water Pump Case Lower

Gasket Water Pump Case Lower

720 ₽
41

3B2-64081-0 Gap liner kit

Gap liner kit

740 ₽
3B2-64023-0 Gap liner kit

Gap liner kit

110 ₽
41

3B2-64082-0 Gap liner kit

Gap liner kit

740 ₽
3B2-64023-0 Gap liner kit

Gap liner kit

110 ₽
41

3B2-64083-0 Gap liner kit

Gap liner kit

290 ₽
3B2-64023-0 Gap liner kit

Gap liner kit

110 ₽
42

3V1-64306-1 Drive Shaft S
FOR TRANSOM S

Drive Shaft S
FOR TRANSOM S

12 690 ₽
42

3V1-64307-1 Drive shaft l
FOR TRANSOM L

Drive shaft l
FOR TRANSOM L

13 430 ₽
42

3V1-64309-1 Drive Shaft UL
FOR TRANSOM UL

Drive Shaft UL
FOR TRANSOM UL

16 330 ₽
43

9601-0-6301 Ball Bearing

Ball Bearing

2 000 ₽
44

369-66011-0 Clutch Cam

Clutch Cam

2 380 ₽
45

951407-0310 Spring Washer

Spring Washer

210 ₽
46

3V1-66012-0 Cam Rod (S)
FOR TRANSOM S

Cam Rod (S)
FOR TRANSOM S

1 670 ₽
46

3V1-66013-0 Cam rod (l)
FOR TRANSOM L

Cam rod (l)
FOR TRANSOM L

1 910 ₽
46

3V1-66014-0 Cam Rod(UL)
FOR TRANSOM UL

Cam Rod(UL)
FOR TRANSOM UL

2 410 ₽
47

369-66031-0 Bushing Cam Rod

Bushing Cam Rod

1 220 ₽
48

369-66021-1 O?????2.5-4.9

O?????2.5-4.9

320 ₽
49

332-66032-0 O?????2.4-15.4

O?????2.4-15.4

320 ₽
50

369-66033-0 Stopper Cam Rod Bushing

Stopper Cam Rod Bushing

360 ₽
51

9101E3-5625 Bolt & washer

Bolt & washer

200 ₽
52

3V2-60001-0 Bolt 6-35 precoated

Bolt 6-35 precoated

360 ₽
53

3V1-60041-0 Water Seal Rubber

Water Seal Rubber

410 ₽
54

3V1-60042-0 Water Seal Plate

Water Seal Plate

360 ₽
55

3V1-65100-0 Труба водная
FOR TRANSOM S

Труба водная
FOR TRANSOM S

1 250 ₽
55

3V1-65110-0 Труба водная
FOR TRANSOM L

Труба водная
FOR TRANSOM L

1 570 ₽
55

3V1-65120-0 Труба водная
FOR TRANSOM UL

Труба водная
FOR TRANSOM UL

1 900 ₽
57

3V1-65203-0 Lock Plate

Lock Plate

490 ₽
58

3V1-65204-0 Rubber Mount,13-2.5

Rubber Mount,13-2.5

330 ₽
59

9215E3-0510 Screw
FOR EP/EPT

Screw
FOR EP/EPT

120 ₽
921503-0510 Screw

Screw

120 ₽
60

3V1B64510-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
(USA:9.8PS UL)

Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
(USA:9.8PS UL)

18 890 ₽
3B2B64511-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black

Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black

0 ₽
60

3V1B64514-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
(USA:8/9.8PS L PT)

Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
(USA:8/9.8PS L PT)

15 140 ₽
3B2B64512-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black

Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black

0 ₽
60

3B2B64513-1 Prop 8 & 9.8 hp (8.5 dia x 6.5 pitch) - discontinued
6PS L

Prop 8 & 9.8 hp (8.5 dia x 6.5 pitch) - discontinued
6PS L

25 770 ₽
60

3B2B64514-1 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
(USA:8PS S/L 9.8PS L)

Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
(USA:8PS S/L 9.8PS L)

25 770 ₽
3B2B64514-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

12 940 ₽
60

3B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
8PS S/L 9.8PS L/UL (USA:9.8PS S)

Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
8PS S/L 9.8PS L/UL (USA:9.8PS S)

25 770 ₽
60

3B2B64517-1 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8PS S

Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8PS S

9 930 ₽
3B2B64517-0 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black

Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black

12 330 ₽
60

3B2B64519-1 Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
OPT

Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
OPT

9 990 ₽
61

3V1-87326-0 Propeller Hardwear Kit

Propeller Hardwear Kit

1 660 ₽
62

3B2-64230-1 Thrust holder ass'y

Thrust holder ass'y

1 060 ₽
63

369-64121-0 Nut Propeller

Nut Propeller

1 230 ₽
64

369-64124-0 Washer

Washer

840 ₽
65

951503-0318 New part

New part

240 ₽
