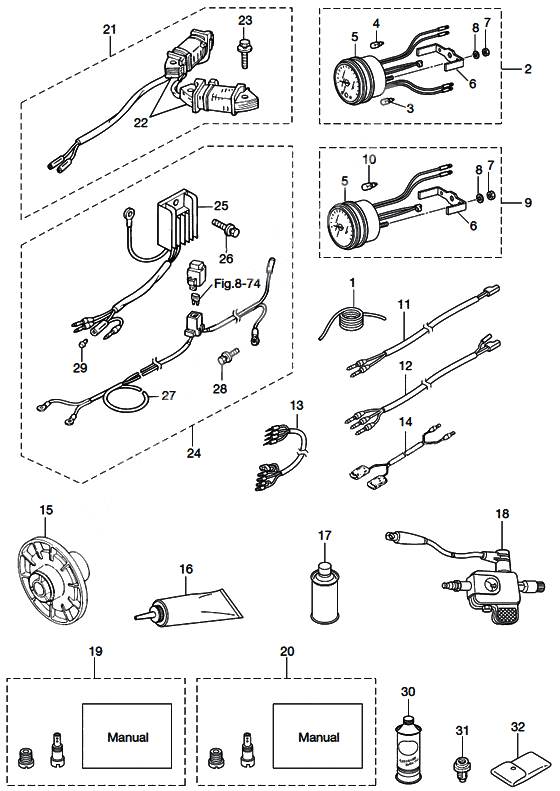

Optional parts (accessories) для Tohatsu MFS9.8A3 - 2011 года выпуска
-
№АртикулНазвание
-
13B7-72201-0 КанатКанат
-
23N8-72640-1 Tachometer Ass'y
FOR EPTachometer Ass'y
FOR EP -
33B7-72658-0 Bulb, Meter 12V-1.7W
FOR EPBulb, Meter 12V-1.7W
FOR EP -
43B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
53B7-72656-0 Damper, MeterDamper, Meter
-
63B7-72661-0 Plate, FittingPlate, Fitting
-
7930103-0500 NutNut
-
8941303-0500 Spring WasherSpring Washer
-
93B7-72530-2 Tachometer Ass'y
FOR MF & EF/EFTTachometer Ass'y
FOR MF & EF/EFT -
103B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
11361-72539-0 Lead Wire Tachometer
FOR MF & EF/EFTLead Wire Tachometer
FOR MF & EF/EFT -
123V1-72539-0 Lead Cable,Meter
FOR EP/EPTLead Cable,Meter
FOR EP/EPT -
133A3-72537-1 Lead wire/ept (l+2000)
FOR EPTLead wire/ept (l+2000)
FOR EPT -
14353-72537-0 Meter Lead Wire
FOR EP/EPTMeter Lead Wire
FOR EP/EPT -
153B2-64110-1 Test PropellerTest Propeller
-
16332-82310-0 Tohatsu gear lube (12-quarts)
QUARTS - 12 PER CASETohatsu gear lube (12-quarts)
QUARTS - 12 PER CASE -
16332-82312-0 Tohatsu gear lube (5 gal pail)
5 GALLON PAILTohatsu gear lube (5 gal pail)
5 GALLON PAIL -
16332-82314-0 Tohatsu gear lube (16 gal drum)
16 GALLON DRUMTohatsu gear lube (16 gal drum)
16 GALLON DRUM -
16332-82309-0 Nissan gear lube (12-quarts)
QUARTS - 12 PER CASENissan gear lube (12-quarts)
QUARTS - 12 PER CASE -
173AC-72326-0 Paint (aqua marine blue) 12 oz spray canPaint (aqua marine blue) 12 oz spray can
-
183F3-72540-0 Ignition CheckerIgnition Checker
-
193V1-10230-0 High alt. adj. kit mfs8a3 (~9840 ft.)
8PSHigh alt. adj. kit mfs8a3 (~9840 ft.)
8PS -
203V2-10230-0 High alt. adj. kit mfs9.8a3 (~9840 ft.)
9.8PSHigh alt. adj. kit mfs9.8a3 (~9840 ft.)
9.8PS -
213V2-06128-0 Alternator?kit
FOR MFAlternator?kit
FOR MF -
223AA-06023-0 Alternator Ass'y
FOR EF/EFT & EP/EPTAlternator Ass'y
FOR EF/EFT & EP/EPT -
23910103-5630 Bolt
FOR MFBolt
FOR MF -
243V2-76160-0 Rectifier?kitRectifier?kit
-
253AA-76065-0 Rectifire Complete
FOR EP/EPT & EF/EFTRectifire Complete
FOR EP/EPT & EF/EFT -
26910103-5616 BoltBolt
-
273AA-76161-0 Extension cord (l=2150mm/7.05ft)Extension cord (l=2150mm/7.05ft)
-
28910103-5610 BoltBolt
-
293A3-76037-0 Plug B Cable Terminal
RECTIFIER RED CABLEPlug B Cable Terminal
RECTIFIER RED CABLE -
30332-82308-0 Tohatsu 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASETohatsu 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASE -
30332-82305-0 Tohatsu 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASETohatsu 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASE -
30332-82307-0 Nissan 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASENissan 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASE -
30332-82302-0 Nissan 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASENissan 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASE -
313AA-01030-0 Thermostat (71 degress celcius)
OPT MARK 70Thermostat (71 degress celcius)
OPT MARK 70 -
323BJ-72100-0 Tool set (f15c/f20c)Tool set (f15c/f20c)
